Structure and function of the FT2080
3
29
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10

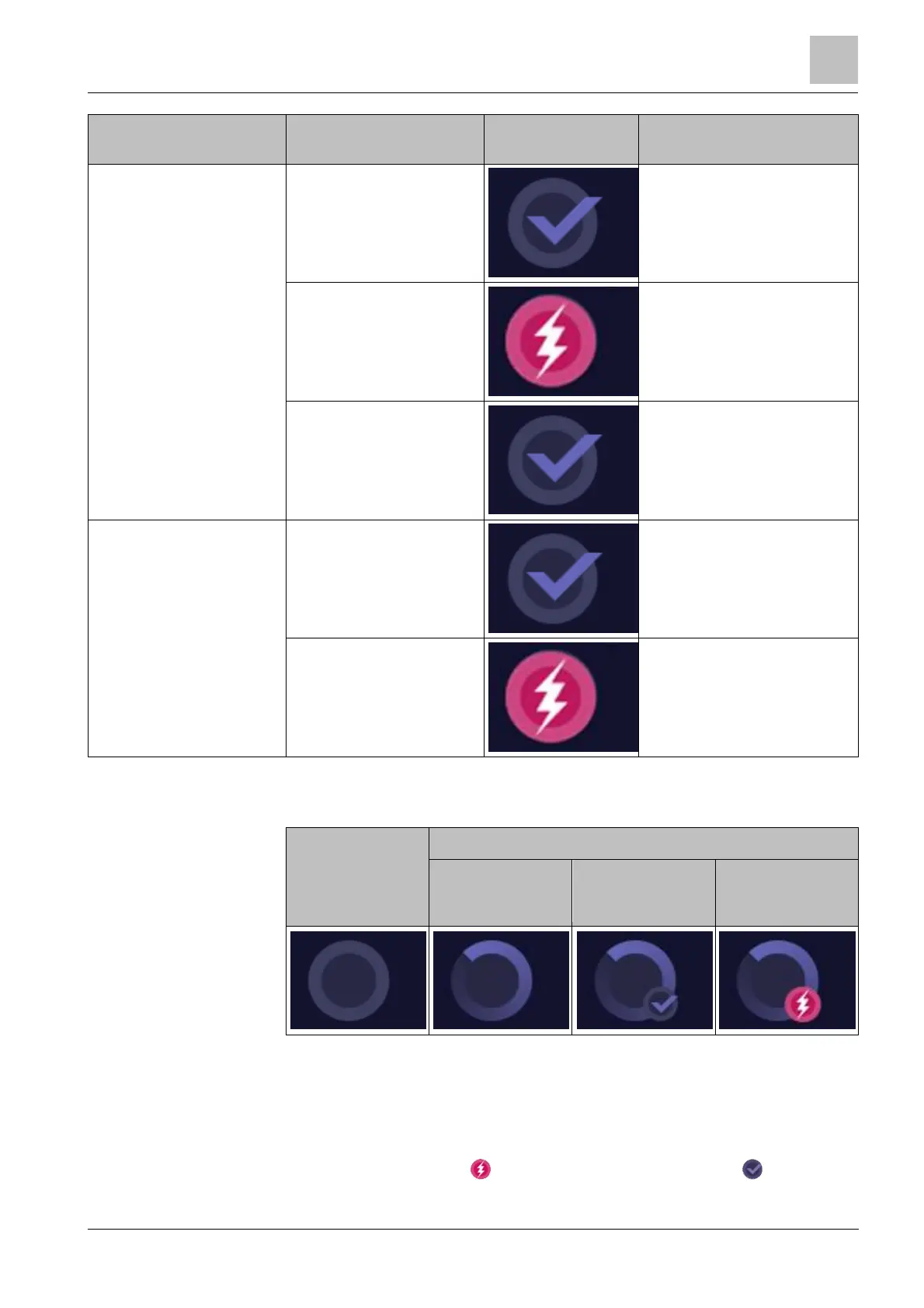

Duration of command
execution
Result of command
execution
Symbol displayed Duration of result display
Short OK 5 seconds
Not OK
Closed with message display
dialog window.
Info (e.g., positive request
of counter reading)
Closed with message display
dialog window.
Long OK
Closed with message display
dialog window.
Not OK
Closed with message display
dialog window.
The CEI is animated during command execution. The table below shows the static
idle state and the command execution animations.
Quiescent
condition
During command execution
Individual
command
Multiple command
with positive
intermediate result
Multiple command
with negative
intermediate result
After a message display is closed, the CEI is reset to the idle state. Sending
multiple commands one immediately after the other can lead to multiple command
execution. Multiple command execution occurs when a long command is followed
by a short one. In the case of multiple command execution, negative intermediate
results are represented by and positive intermediate results by on the CEI.
