3.3.2.1 Single event (SE)

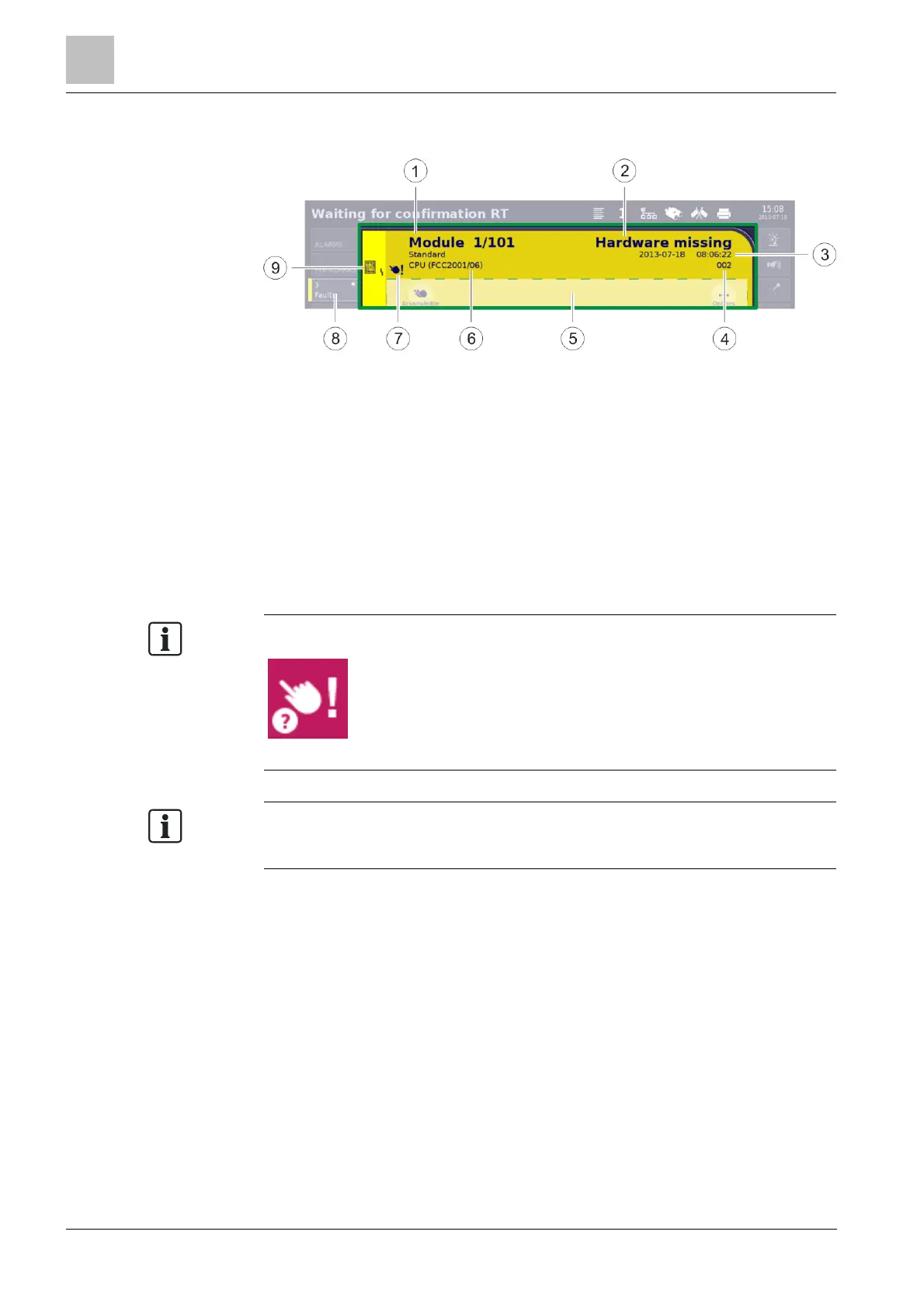

Single event (SE)
1 Element text 6 'Customer text' 1 to 3
2 'Event text' 7 'Processing state' symbol
3 Stop mode and stop command 8 Outer pane
4 List entry number 9 Event symbol
5 Event command bar (ECB)
The field for a single event (SE) displays the properties of the selected event. The
event command list (ECL) is located in the lower part of the SE.
List entries with the state 'unreliable' are identified by '?' in the
symbol:
The 'unreliable' state can arise due to a network failure, for example.
The layout of the element text, '
', and the number of the list entry is
determined by the country-specific BDV. It may deviate from the figure shown
here.
