Structure and function of the FT2080
3
33
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10

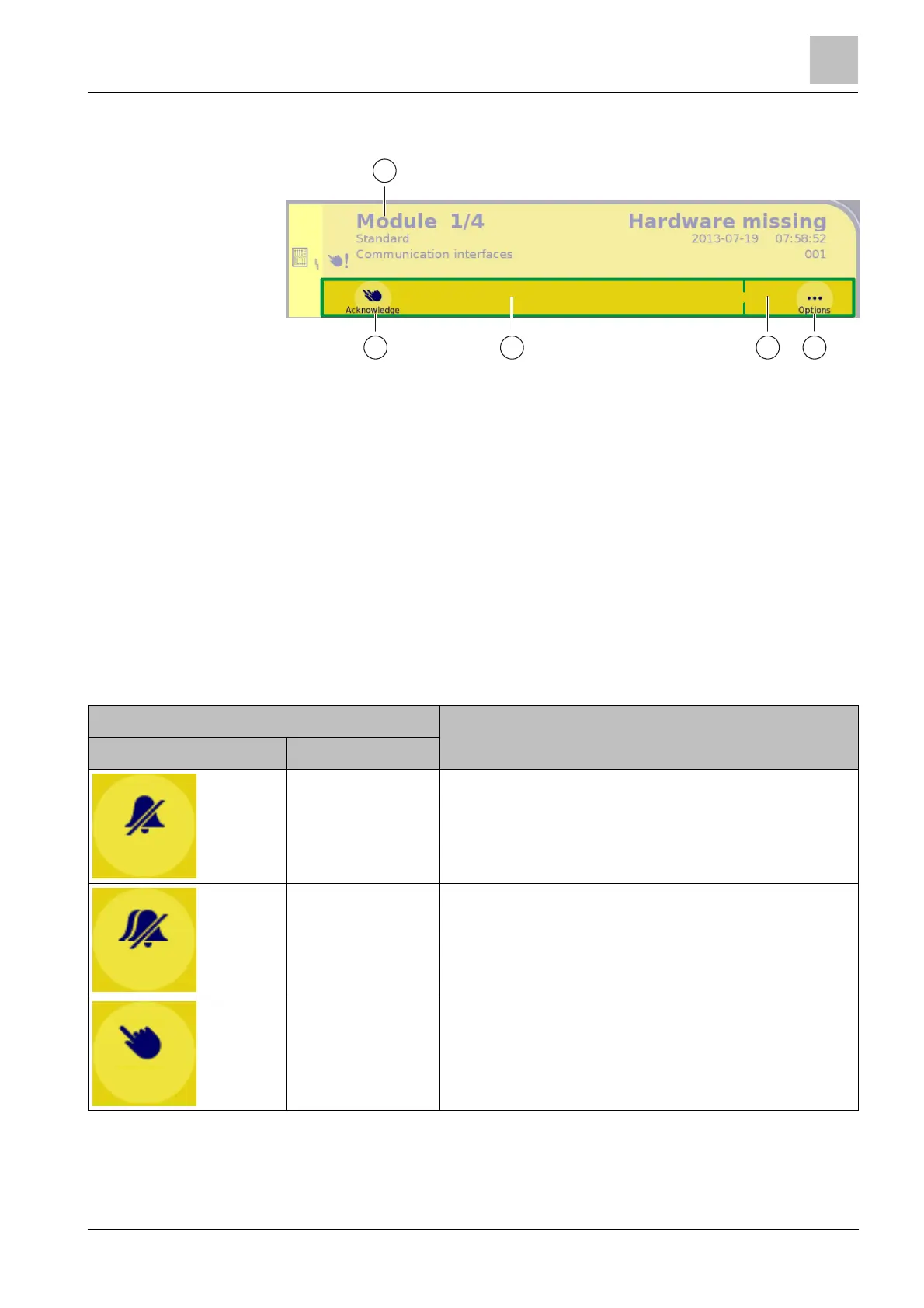

3.3.2.2 Event command bar (ECB)
1
5
4
Event command bar (ECB)
1 Single event 4 Left-hand section
2 'Options' button 5 'Acknowledge' system button
3 Right-hand section
The event command list contains buttons for executing commands for an event and
for requesting information for an event. The ECL is a component of the single event
(SE).
The 'Options' button, which opens the 'Select option' options dialog window, is
located on the right-hand side of the ECL.
Symbols and functions of the buttons
Up to 7 buttons are displayed in the ECL.
The following table shows examples of symbols and functions of the buttons.
Button 'Function'
Symbol / Text 1 Text 2
Silence buzz. Switch off buzzer
Silence buzz.
system
Switch off buzzer for all events
Acknowledge single
Acknowledge selected event and switch off buzzer for
selected event
To Next Page
