3
Structure and function of the FT2080
56
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10

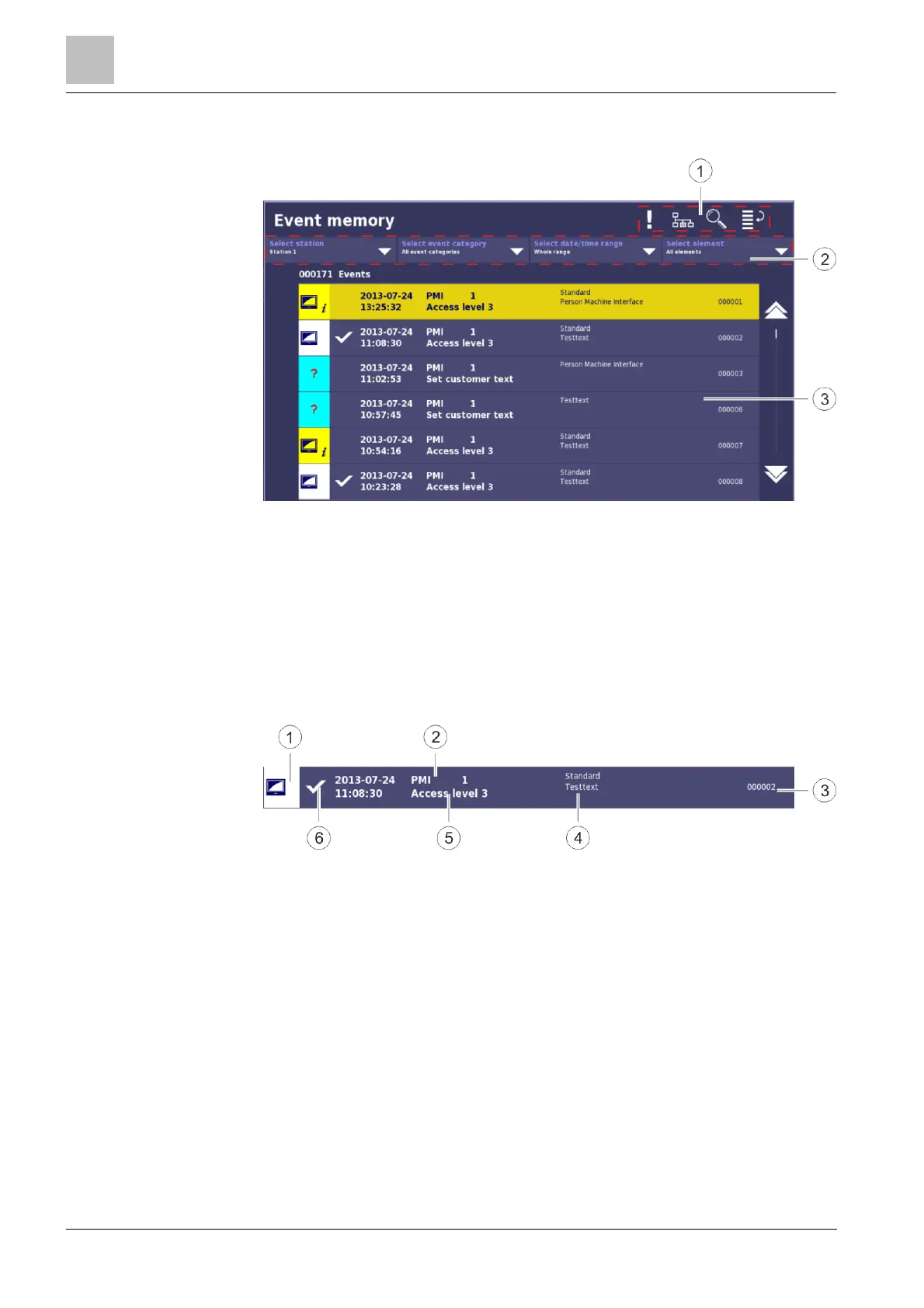

3.3.4.3 Event memory dialog window
Event memory dialog window
1 Dialog window toolbar 3 History list
2 Filter bar
The 'Event memory' dialog window lists all fire detection installation events in
chronological order. Use the filter bar to sort the events. Use the buttons on the
dialog window toolbar to execute commands for the results in the 'Event memory'.
List entry
List entry in the event memory
1 Event symbol 4 Customer text 1 - 3
2 Element text 5 Event text
3 List entry number 6 'Processing state' symbol
