3
Structure and function of the FT2080
66
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10

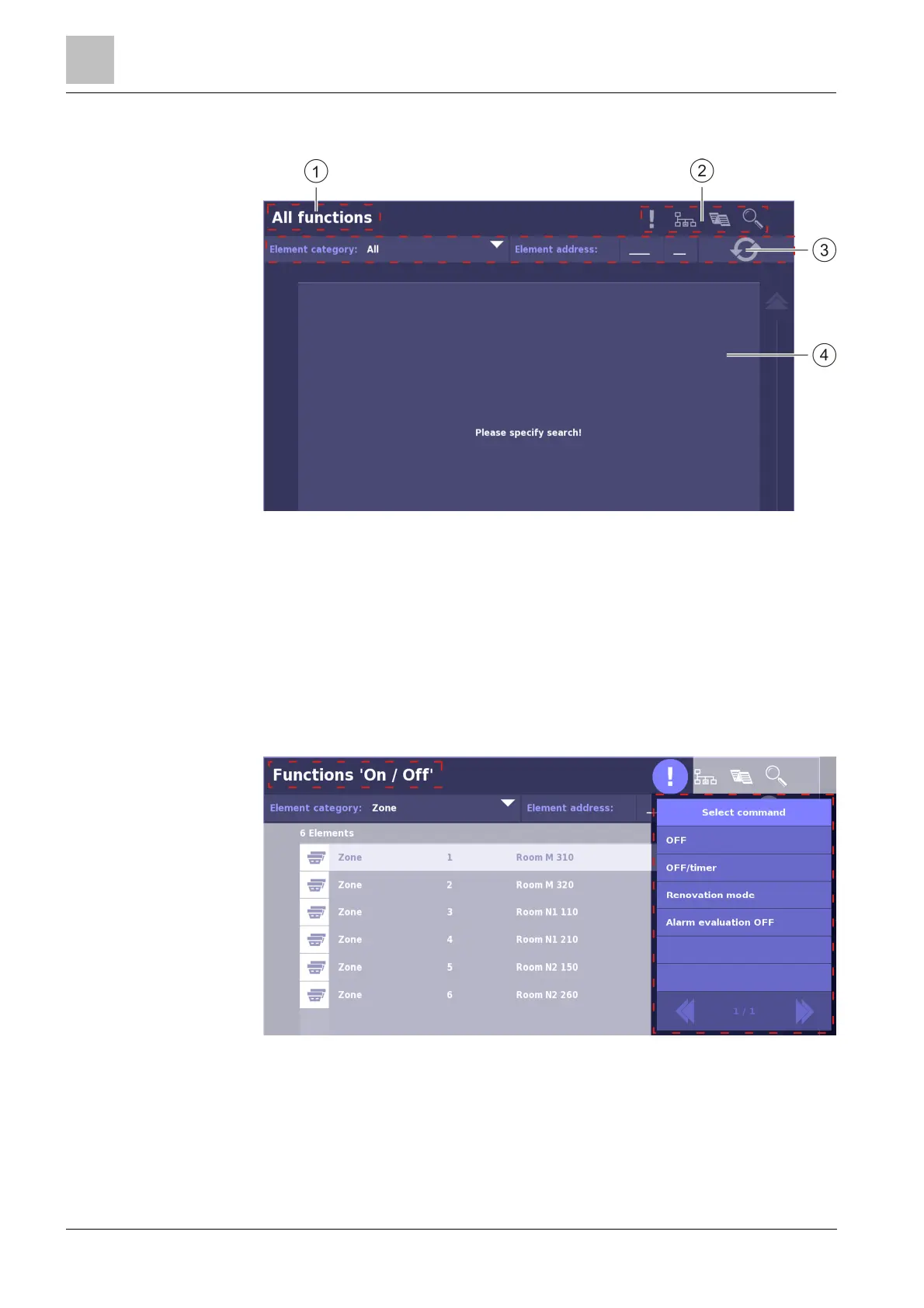

3.3.4.5 Functions dialog window
Functions dialog window All
1 Dialog window title 3 Search bar
2 Dialog window toolbar 4 Event list area
In the 'Functions', you can search for elements of the fire detection installation by
function.
The 'Functions' are dependent upon the function selected in the 'Functions' menu.
The title of the dialog window shows which 'Functions' dialog window is open.
Example: 'Functions 'On / Off'' dialog window
In the 'Functions 'On / Off'' dialog window, you can only use 'Functions' to switch
the highlighted element on and off.
