Structure and function of the FT2080
3
69
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10

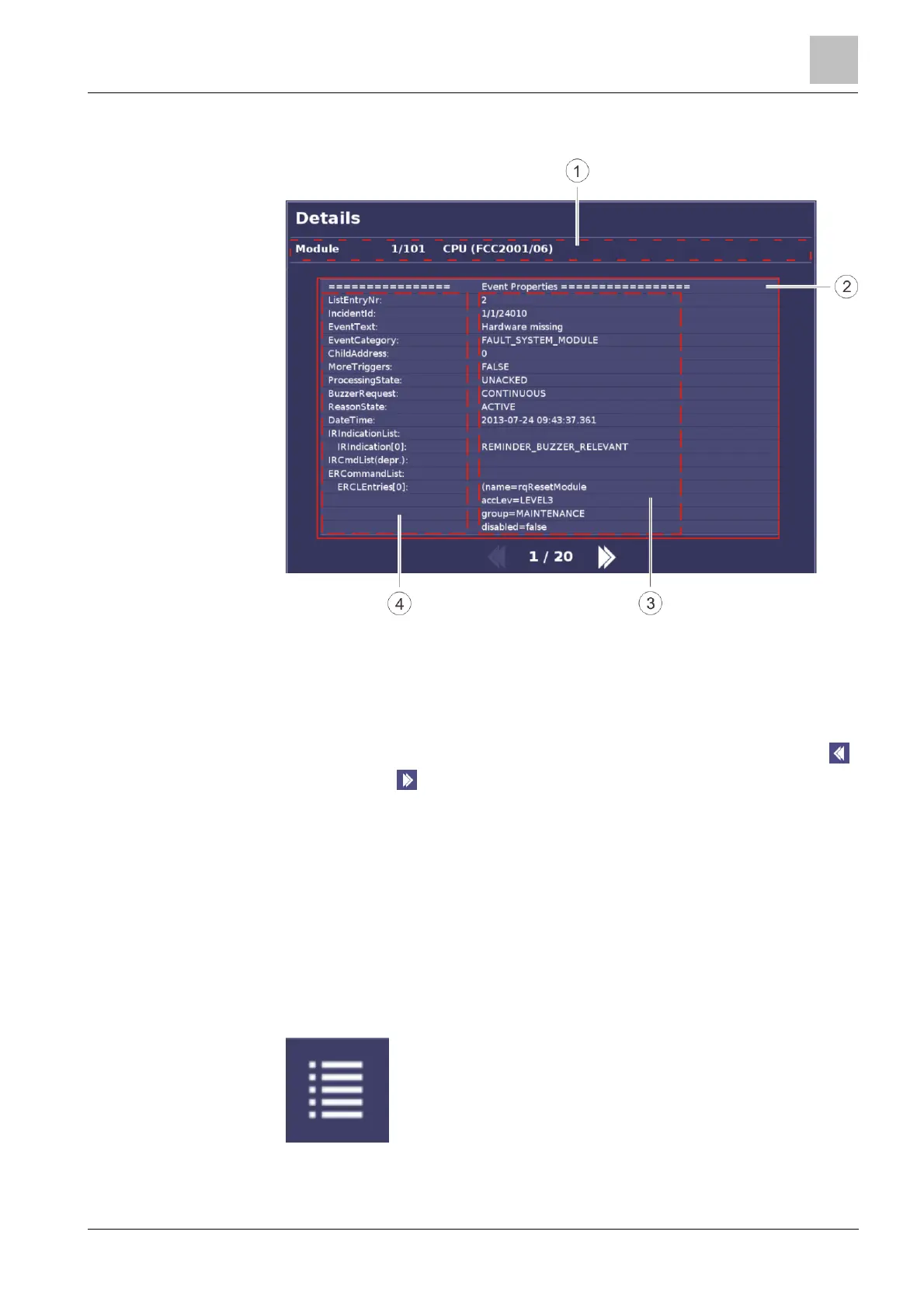

3.3.4.7 Details dialog window
Details dialog window
1 Element display 3 Property values
2 Details list 4 Property name
The details dialog window displays the details of a list entry. Use the 'Page left'
and 'Page right' buttons to navigate through the details pages. You cannot
execute any commands in this dialog window.
3.3.4.8 Licenses dialog window
The Licenses dialog window displays the license texts for the software of FT2080
fire terminals (Touch).
Use the following menu navigation to open the Licenses dialog window:
l 'Main menu' > 'Settings/administration' > 'Show licence texts'
The first time the dialog window is opened, the first license file is displayed. Use
the 'Select licence' button on the dialog window toolbar to select the other license
files. The figure below shows the 'Select licence' button.
'Select licence'
