3.3.5.3 Address entry dialog window

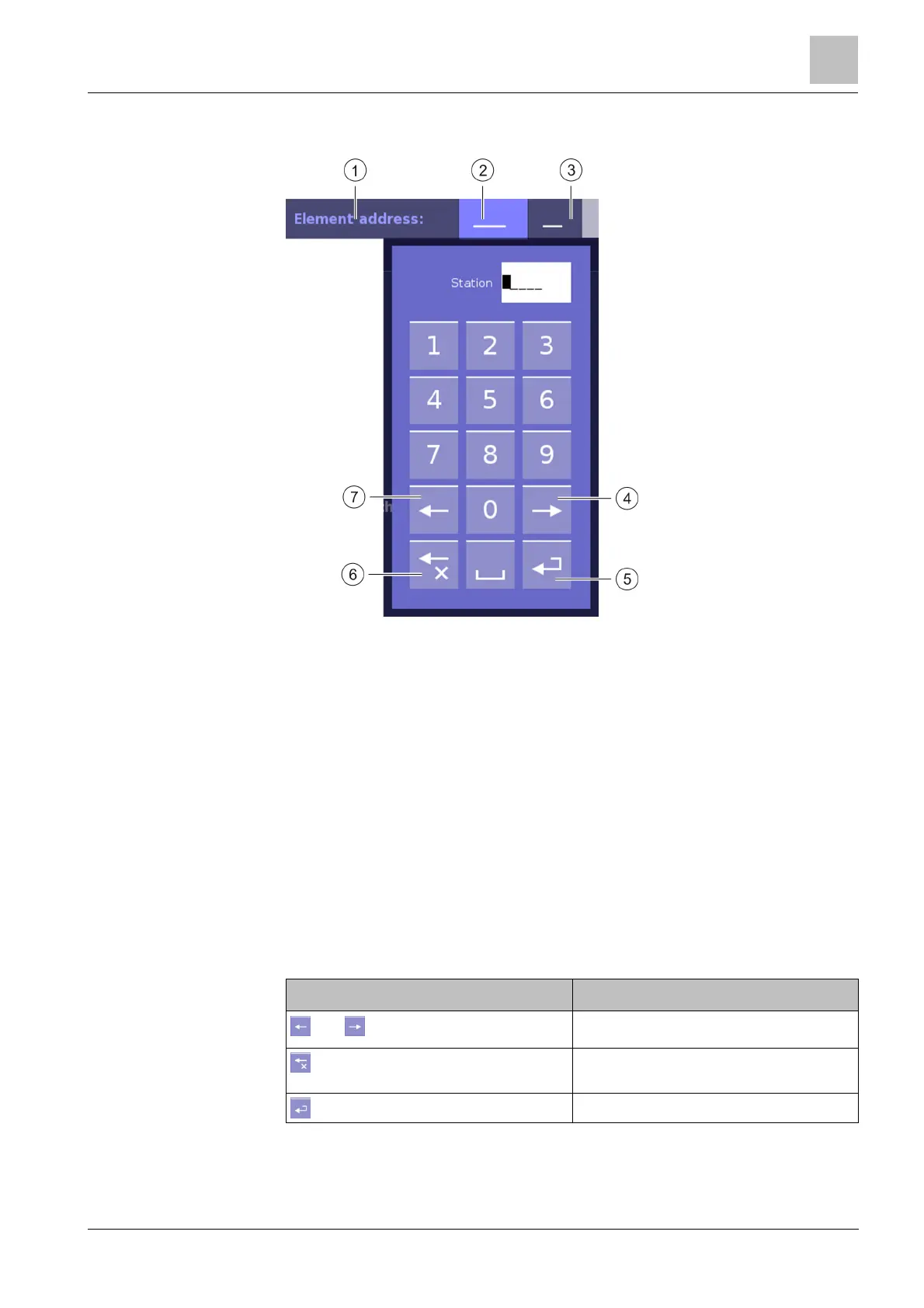

Address entry dialog window
1 Dialog window title 5 'Enter' button
2
'Element address 1' button and
display
6 'Backspace' button
3
'Element address 2' button and
display
7 'Cursor left' button
4 'Cursor right' button
Enter single-stage and two-stage element addresses for an element search in the
'Element address'
1
dialog window. You can call up the 'Element address' dialog
window in the following areas:
l Event memory dialog window
l Dialog window element search
l Menu entries in the 'Functions' submenu
Use the number buttons to enter the 'Element addr.'. The number of underscores
corresponds to the number of possible positions for the entry.
Button Function
and
Move cursor
Delete numbers already entered or
overwrite with new entry
Confirm 'Element addr.' entry
Buttons in the address entry dialog window
1
In some countries, the text 'Plan no.' may appear here. The entry for 'Plan no.' is
always single-stage.
