Braking resistors for PM240-2, 690 V
Table 8- 8 Technical data
Article number
Re-
sistance
Maximum
power, P
max
Connection
R1 / R2
Degree of
protection
Power Module
Rated power
Pdb
Weight
Article Nos.
Frame
size
JJY:023424020002 31 Ω
37 kW
10 mm
2
/ 0.8 Nm
8 AWG / 7.1 lbf in
IP21
6SL3210-1PH21-4❒L0
6SL3210-1PH22-0❒L0
6SL3210-1PH22-3❒L0
6SL3210-1PH22-7❒L0
6SL3210-1PH23-5❒L0
6SL3210-1PH24-2❒L0
FSD
1850 W 9.5 kg
JJY:023434020002 21 Ω
55 kW
16 mm
2
/ 1.2 Nm
6 AWG / 4.5 lbf in
IP21
6SL3210-1PH25-2❒L0
6SL3210-1PH26-2❒L0
FSE
2750 W
13.5 kg
JJY:023464020002
(JJY:023434020002 ∥
JJY:023434020002)
10.5 Ω
110 kW
16 mm
2
/ 1.2 Nm
6 AWG / 10.6 lbf in
16 mm
2
/ 1.2 Nm
6 AWG / 10.6 lbf in
IP21
6SL3210-1PH28-0❒L0
6SL3210-1PH31-0❒L0
6SL3210-1PH31-2❒L0
6SL3210-1PH31-4❒L0
FSF
5500 W 27 kg

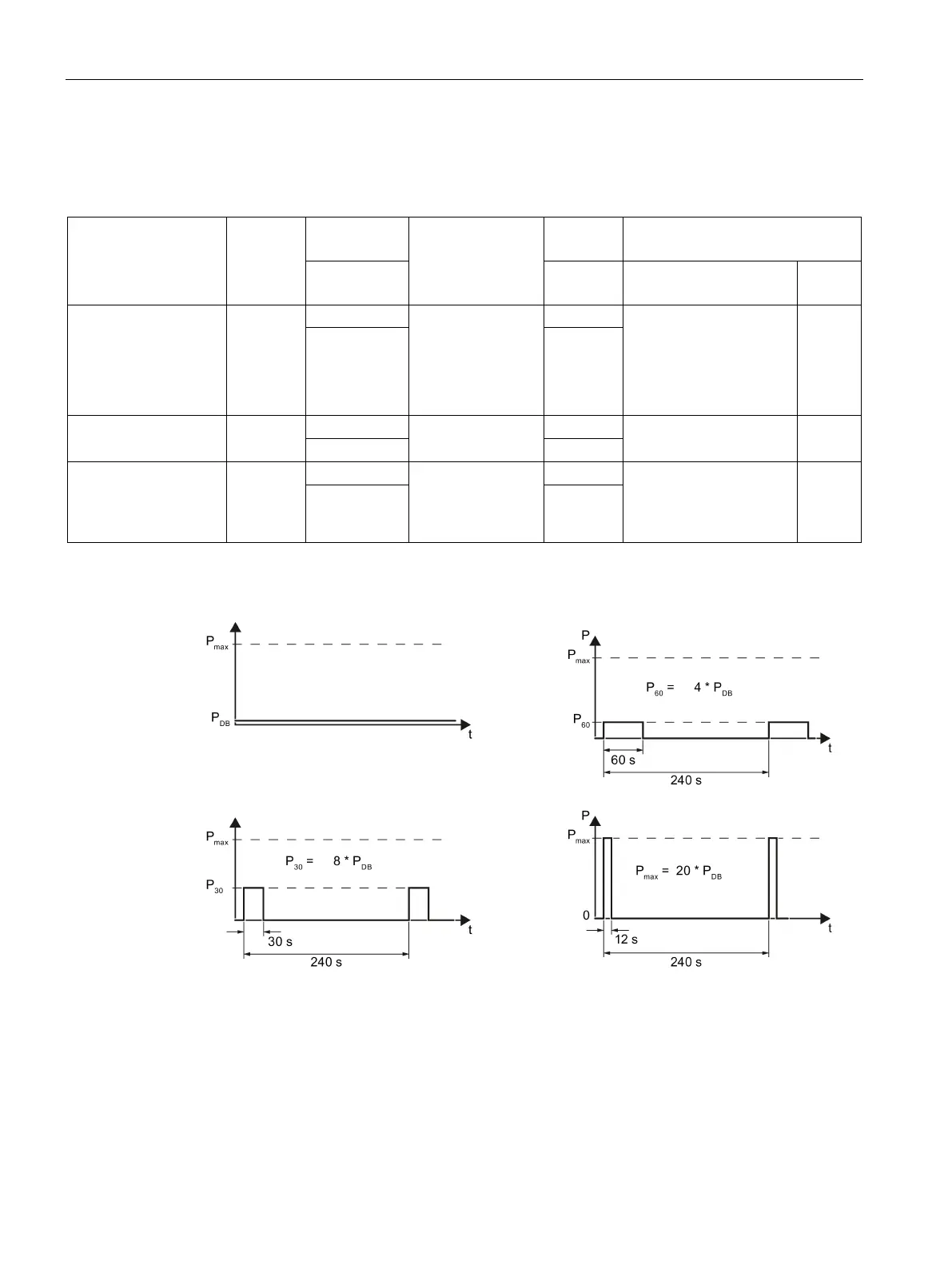

Load cycles for the braking resistors
Figure 8-7 Pulse power, rated power and duty cycle examples for the braking resistor
