5.3 EMC-compliant installation
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
57

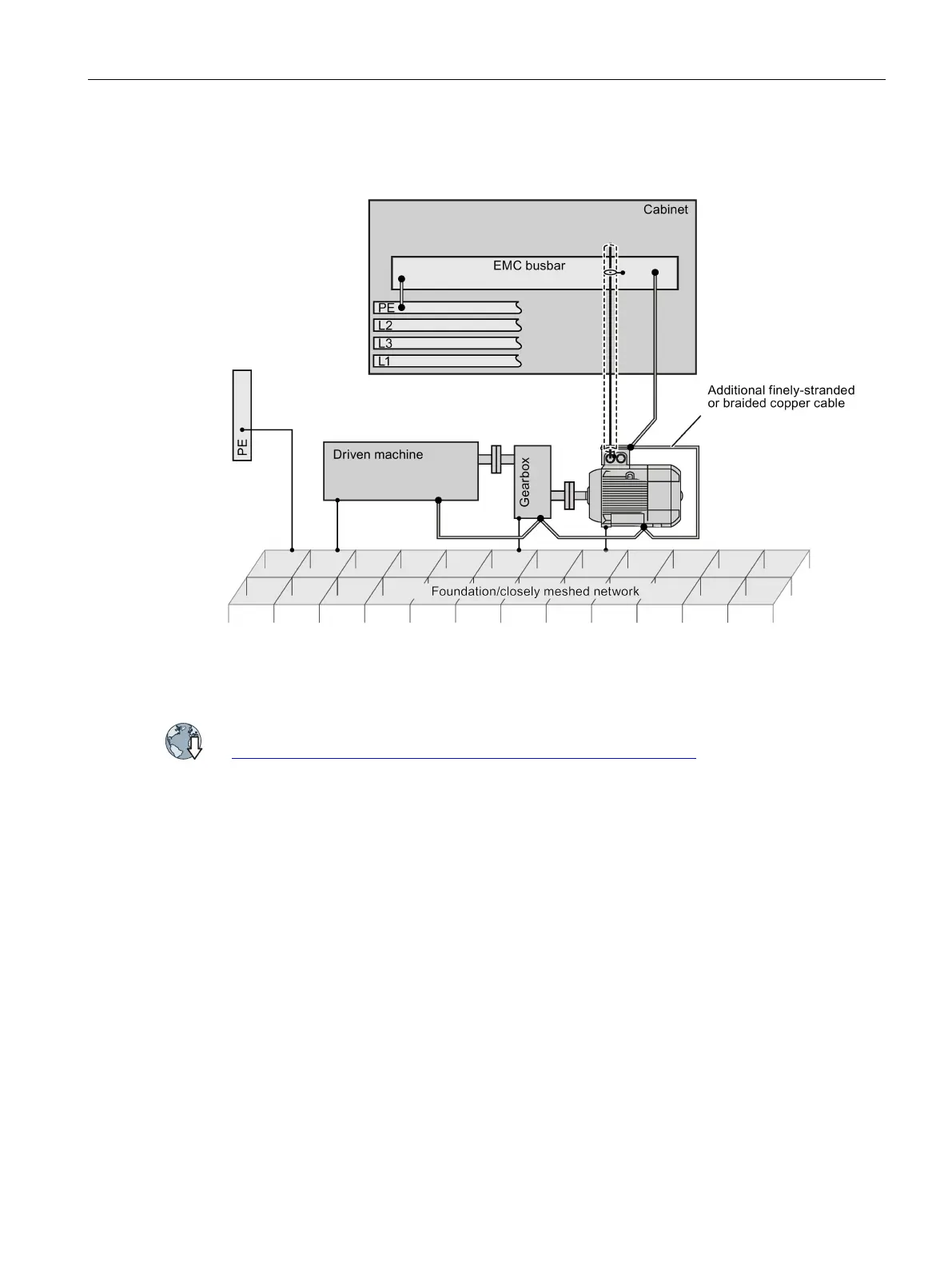

The following diagram shows the additional measures for high-frequency equipotential
bonding
Figure 5-10 Additional measures for high frequency equipotential bonding of the drive system
You can find additional information about the EMC installation guidelines at
(https://support.industry.siemens.com/cs/ww/de/view/60612658/en):
