Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC377E
26 Operating Instructions, 2017/05, A5E40965249-AA

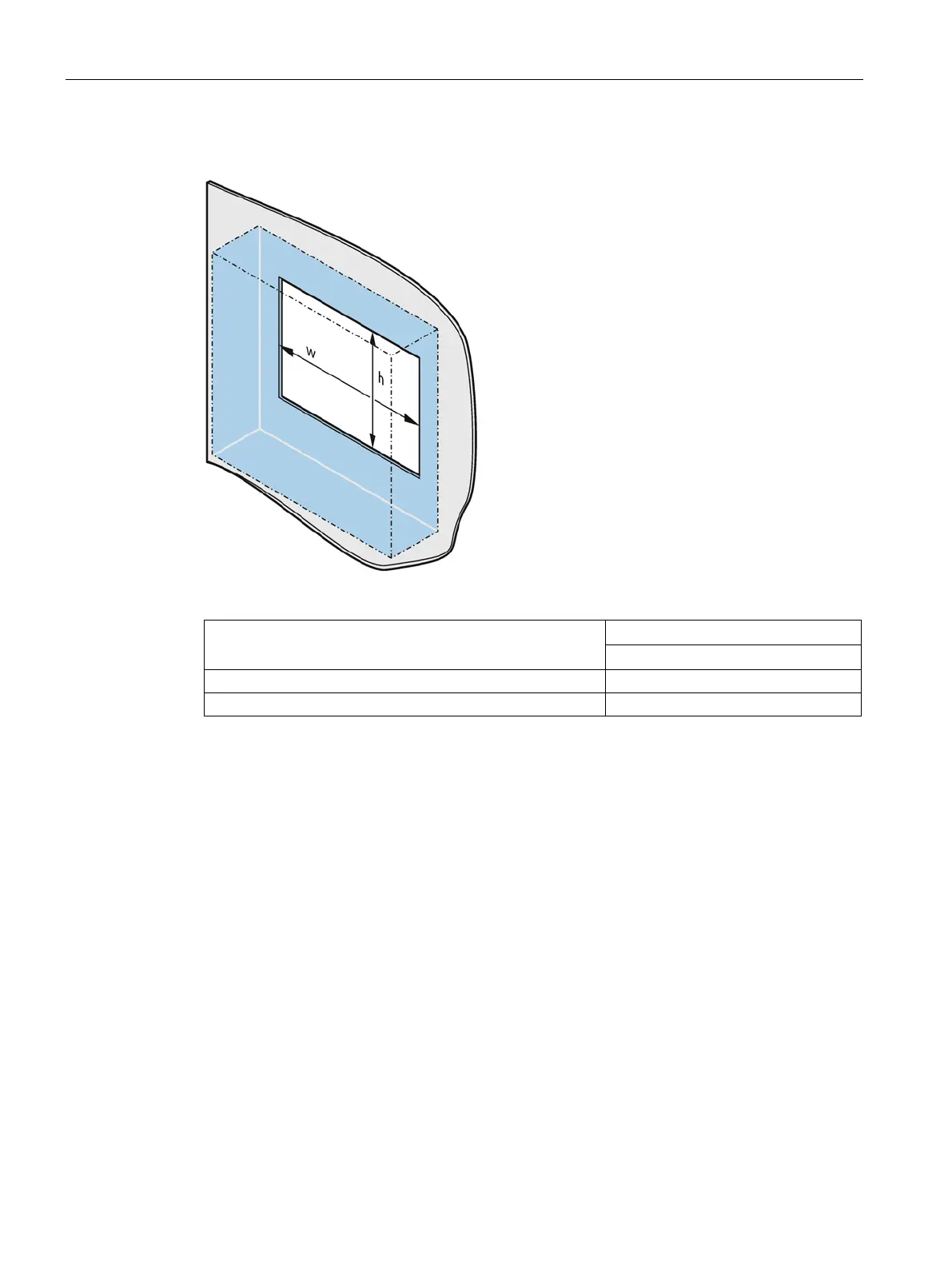

Dimensions of the mounting cutout
The following table shows the dimensions of the required mounting cutout:
Mounting cutout
Device
12 inch
Width w
*
302
+1
mm
Height h
*
208
+1
mm
*
Width and height should be reversed accordingly when mounting in vertical format.
