Technical specifications
8.6 BIOS description
SIMATIC IPC377E
Operating Instructions, 2017/05, A5E40965249-AA
91
Chipset setup
Chipset page
Select

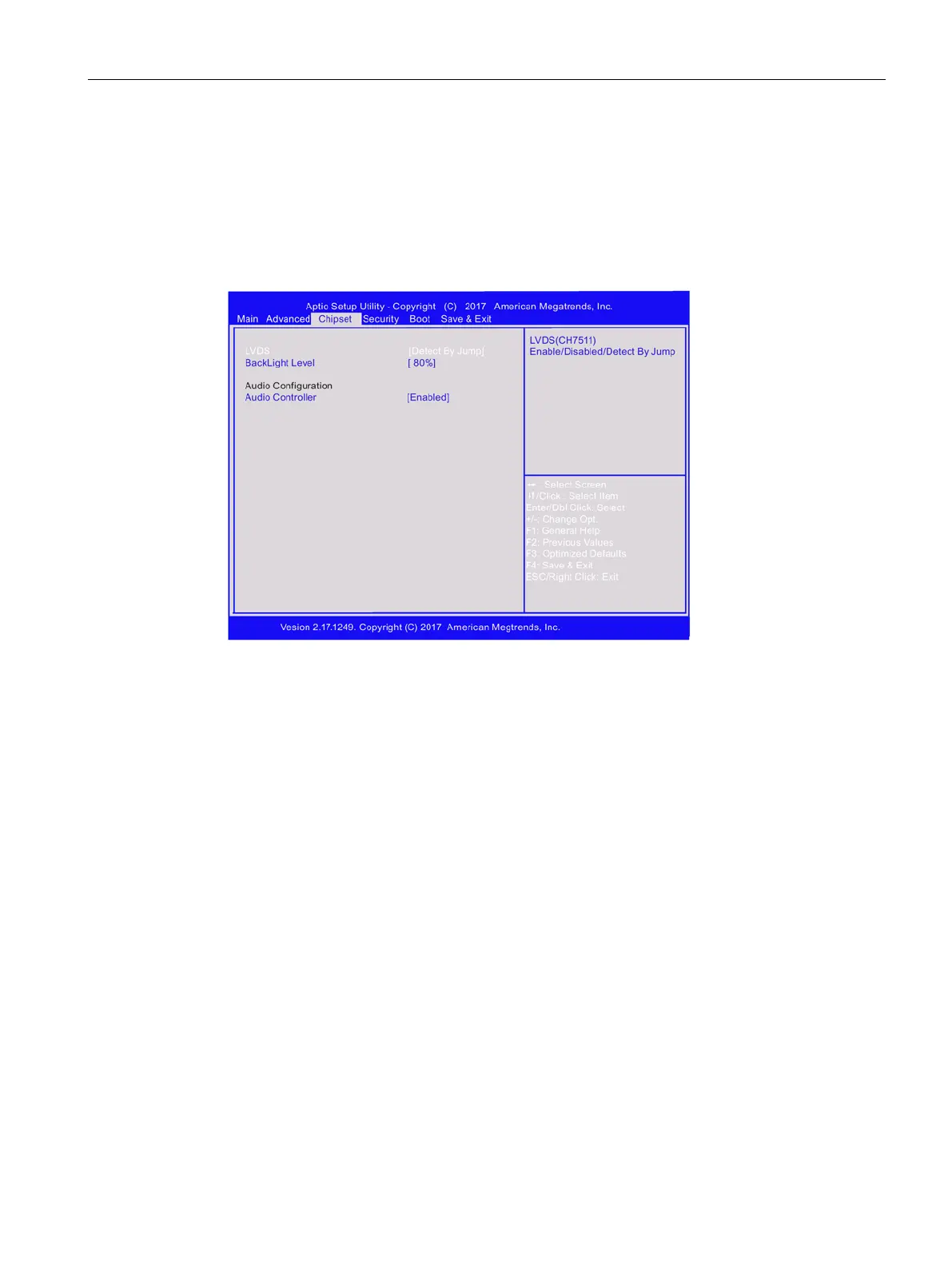

from the BIOS setup page to enter the Chipset BIOS setup page. The
Chipset page is shown as below.
Follow the instructions below to enable or disable LVDS
1. Select
with the arrow keys and press
key.
2. Select
,
or
as you need and press
key in the
active window pop-up.
3. when you select
only choose LVDS type "
" can work for
12" panel.
4. Press
key and save the change.
In Audio configuration page, you can view and configure Audio Controller.
1. Select
with the arrow keys and press
key.
2. Select
or
as you want and press
key.
3. Press
key and save the change.
