3.2 Installing the device
SIMATIC IPC377E
Operating Instructions, 2017/05, A5E40965249-AA
29

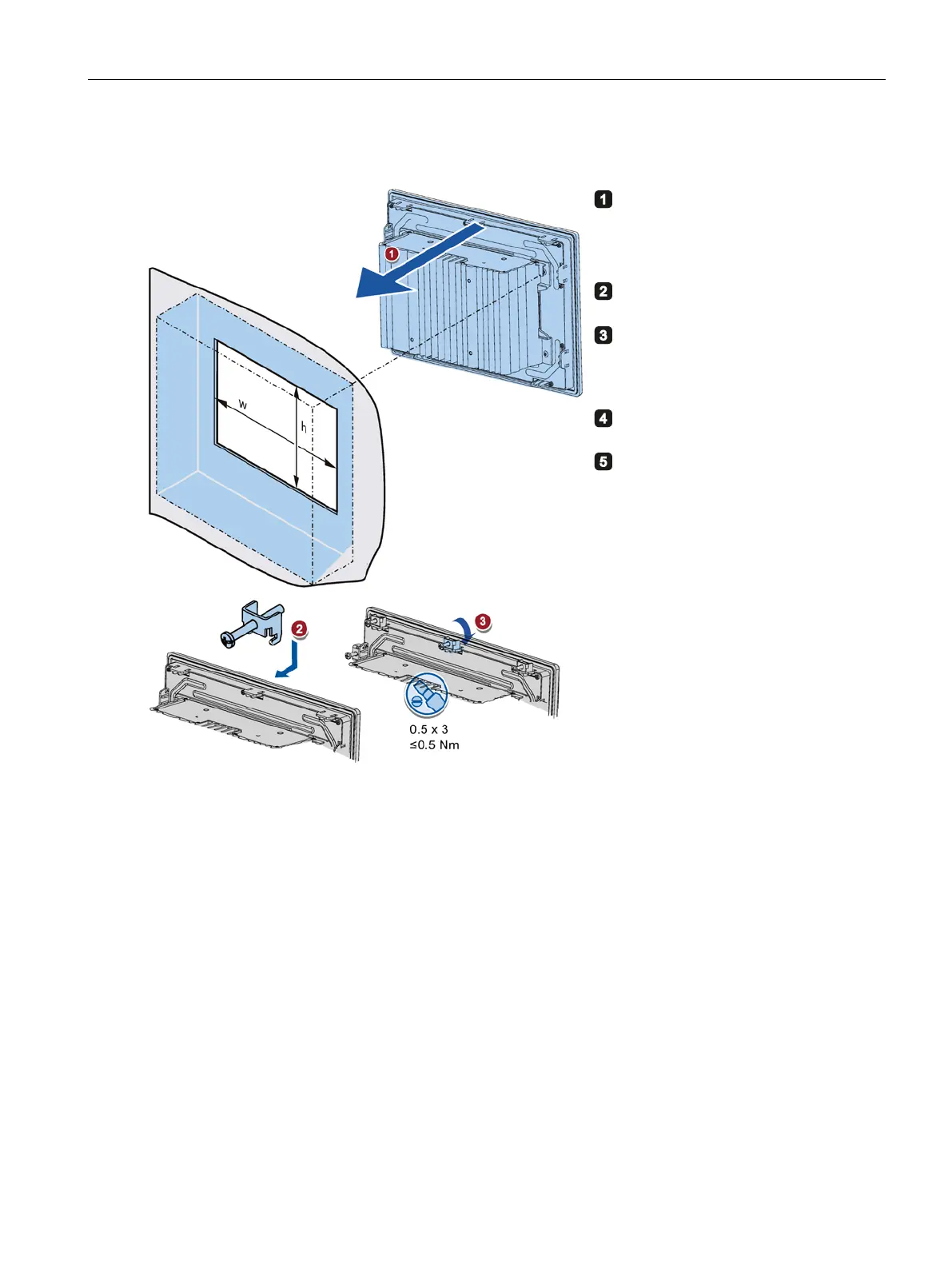

Insert the panel device into the mounting
cutout from the front.
Insert a mounting clip into the cutout
provided on the device.
Tighten the threaded pin to secure the
mounting clip. The threaded pins have a
maximum tightening torque of 0.5 Nm on
the 12 inch variants.
Repeat steps 2 and 3 for all mounting
clips.
Check the fit of the mounting seal.
The device is mounted and the relevant degree of protection is ensured at the front.
