Process interfacing via an automation system (PLC, PC)
9.4 Control with FB 79
SIMATIC MV500
134 Operating Instructions, 06/2018, C79000-G8976-C494-01
The diagram below shows the program saving procedure, using program 11 as an example.
Note that the trigger signal must be present for at least 5 ms.

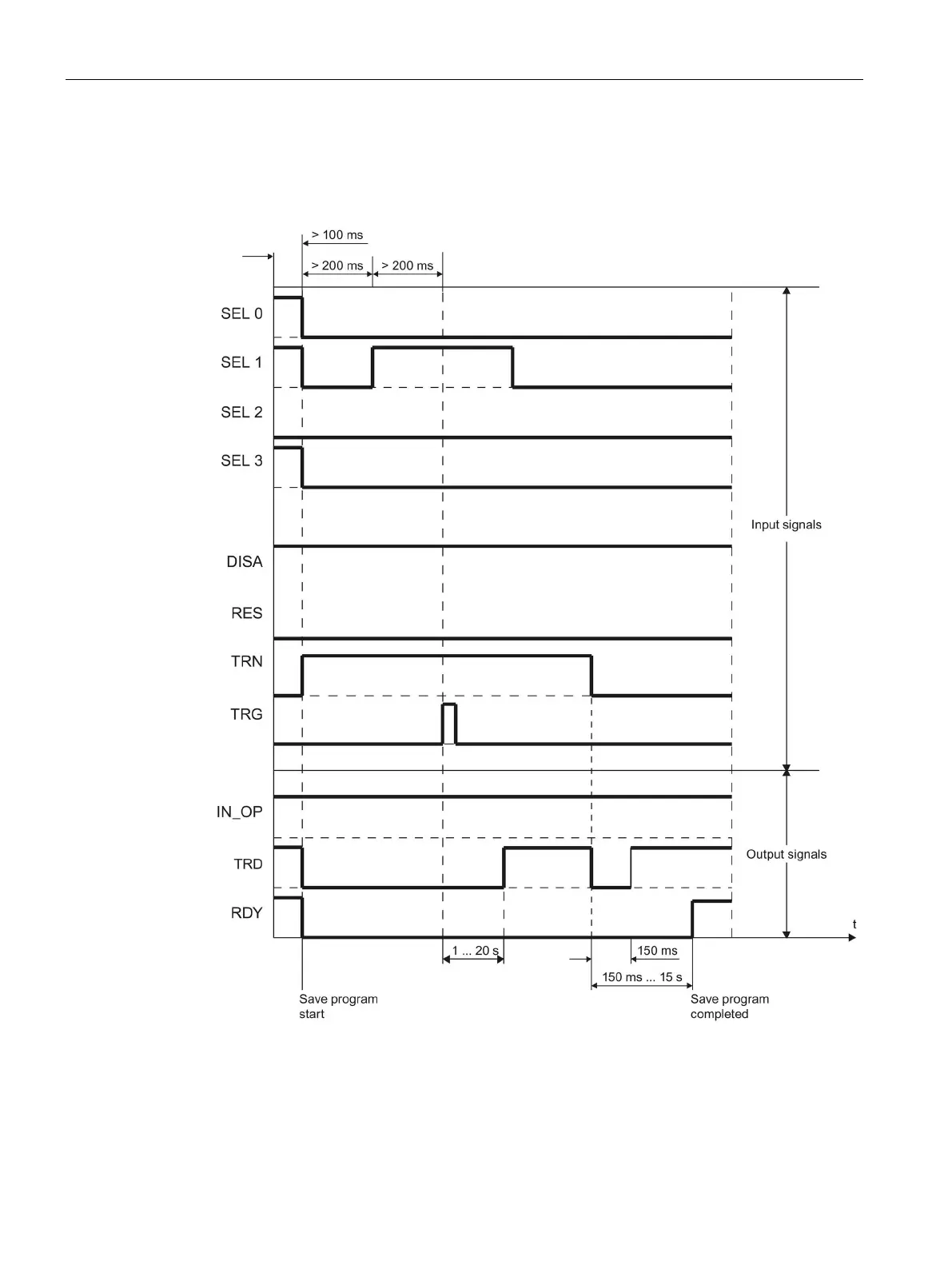

Figure 9-5 Time diagram: Save program
