Connection
6.3 Connecting the power supply
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
81
Communication module cable
You use the communication module cable to connect the communication modules (e.g.
RF180C and ASM 456) to the optical reader. The communication module cable is pre-
fabricated.

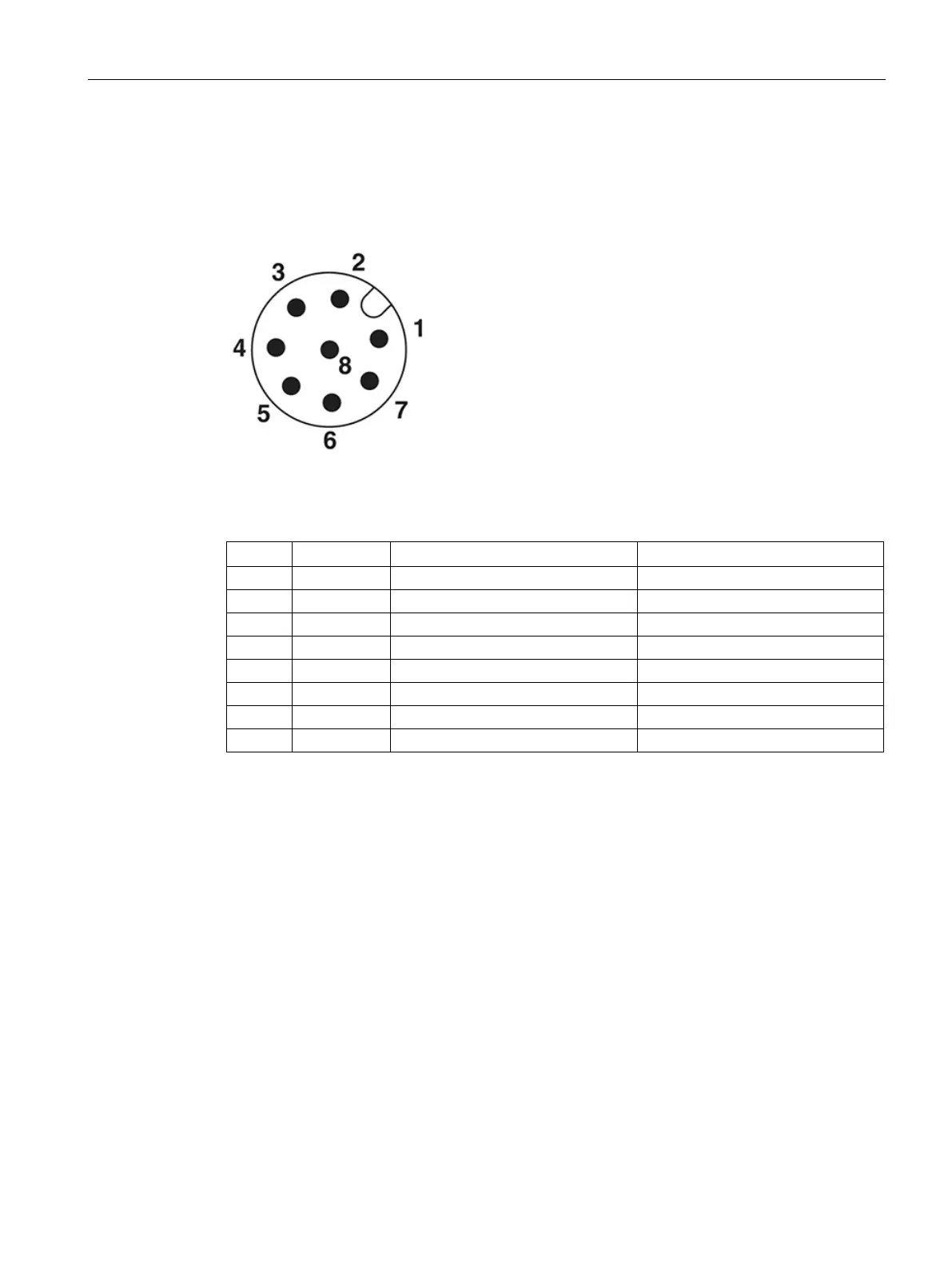

Figure 6-3 Pin assignment of communication module plug
Table 6- 2 Communication module cable, M12 (male, 8-pin) / M12 (female, 8-pin)
Pin
Wire color
Signal name
SIMATIC MV500
1
White
24 V
24 V DC power supply
2
Brown
TxD_N
Send data -
3
Green
0 V
Ground
4
Yellow
TxD_P
Send data +
5
Gray
RxD_P
Received data +
6
Pink
RxD_N
Received data -
7
Blue
Not connected
-
8
Red
Shield
-
Pin assignment ↔ socket/wire color of the cable/signal connector of the optical reader
Industrial Ethernet connecting cable
Connect a PC/PG (for control and operation) to the optical reader using a prefabricated
Ethernet cable.
Attach the Ethernet cable to a switch to connect the optical reader to an S7 controller via
onboard PROFINET IO.
