4.6 "Interfaces" menu
4.6.1 Ethernet

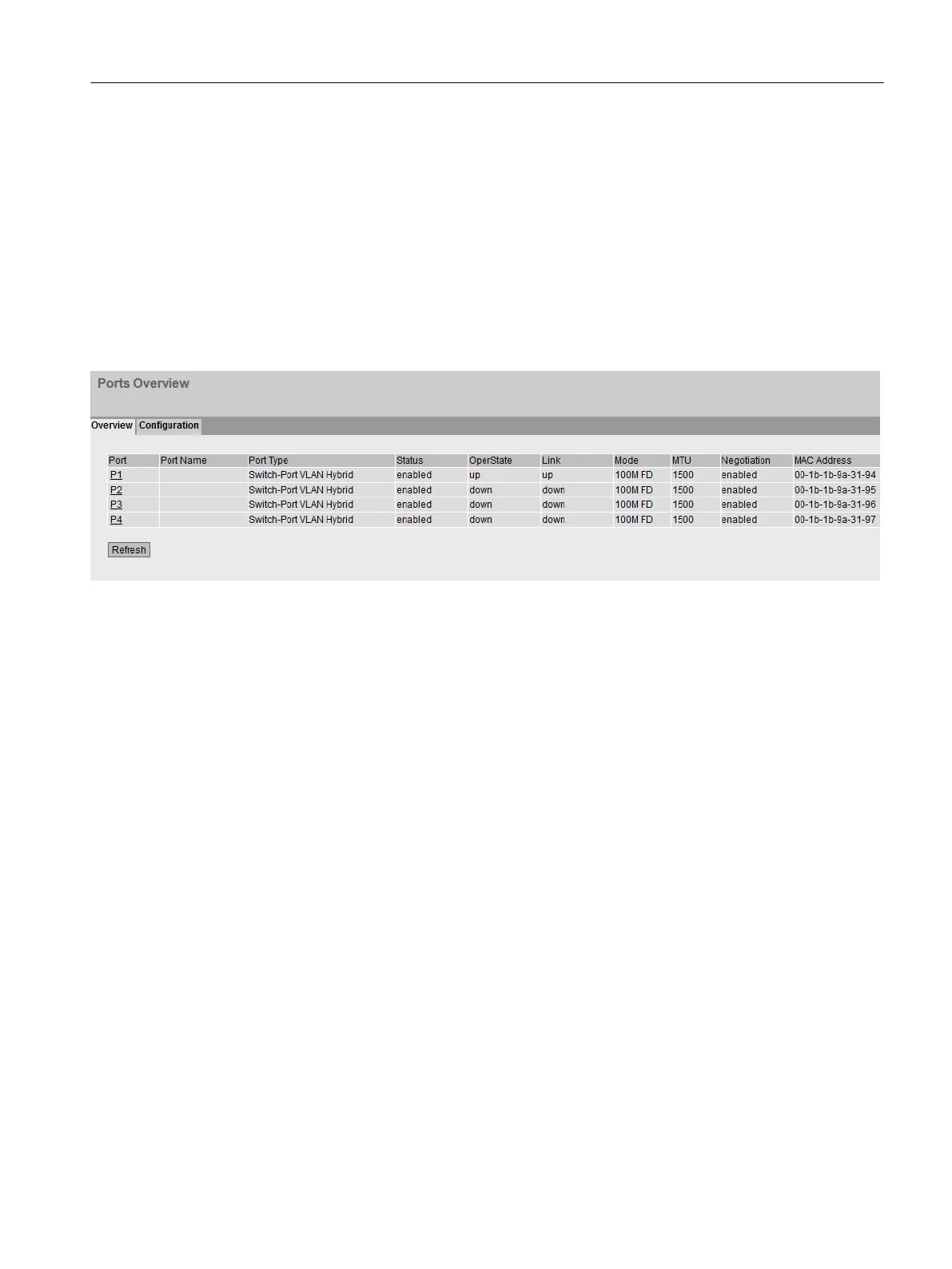

4.6.1.1 Overview
The page shows the configuration for the data transfer for all ports of the device. You cannot
configure anything on this page.
Description
The table has the following columns:
● Port
Shows the configurable ports. The entry is a link. If you click on the link, the corresponding
configuration page is opened.
● Port Name
Shows the name of the port.
● Port Type (only with routing)
Shows the type of the port. The following types are possible:
– Switch Port VLAN Hybrid
– Switch Port VLAN Trunk
● Status
Shows whether the port is on or off. Data traffic is possible only over an enabled port.
● OperState
Displays the current operational status. The operational status depends on the configured
"Status" and the "Link". The available options are as follows:
– Up
You have configured the status "enabled" for the port and the port has a valid connection
to the network.
– Down
You have configured the status "disabled" or "Link down" for the port or the port has no
connection.
Configuring with Web Based Management
4.6 "Interfaces" menu
SCALANCE S615 Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C388-08 209
