Type of notifica‐
tion
Di
gi‐
tal
In
VPN
tun‐
nel

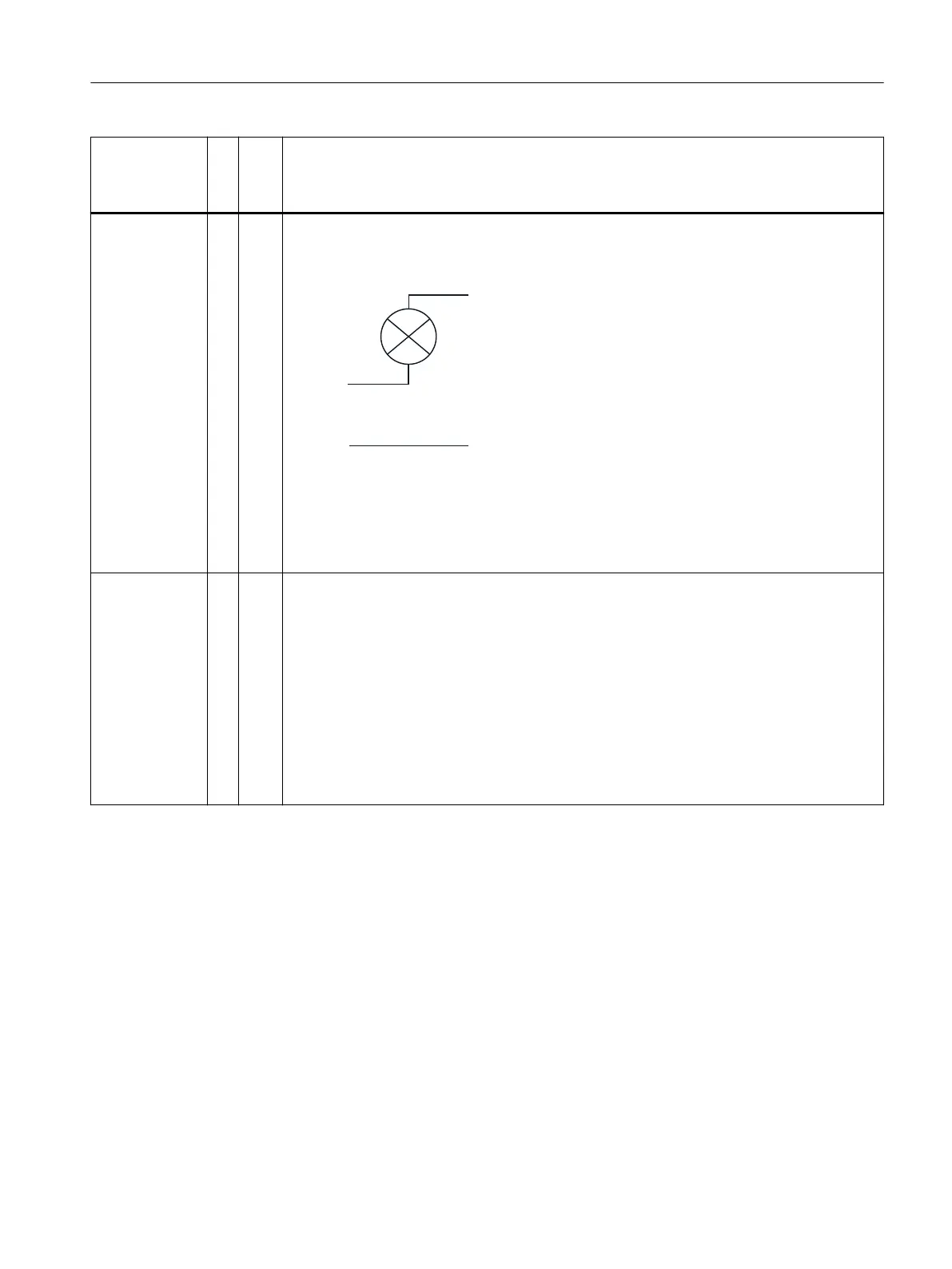

Behavior if there is a status change
Digital Input x x Controls the digital output or signals the status change with the "DO" LED.
A consumer can be connected to the digital output. You will find information on connecting in
the operating instructions of the devices. The consumer signals a status change.
Note
You can control the digital output directly via CLI or SNMP. In the WBM and CLI, you can
configure the use of the digital output in "Events". Do not control the digital output directly when
you use this in the WBM and CLI.
Read out the
status of the
MIB variable
x - Using the private MIB variable snMspsDigitalInputLevel, you can read out the status of the
digital input.
● OID of the private MIB variable snMspsDigitalInputLevel:
iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).siemen
s(4329).industrialComProducts(20).iComPlatforms(1).simaticNet(1).
snMsps(1).snMspsCommon(1).snMspsDigitalIO(39).snMspsDigitalIOObje
cts(1).snMspsDigitalInputTable(2).snMspsDigitalInputEntry(1).snMs
psDigitalInputLevel(6)
● values of the MIB variable
– 1: Signal 0 at the digital input (DI)
– 2: Signal 1 at the digital input (DI)
Technical basics
3.5 Security functions
SCALANCE S615 Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C388-08 57
