Siemens SIMATIC PCS 7 BOX User Manual

Structure of SIMATIC PCS 7 BOX
Process Control System PCS 7 - PCS 7 BOX
3-10 A5E00272813-01

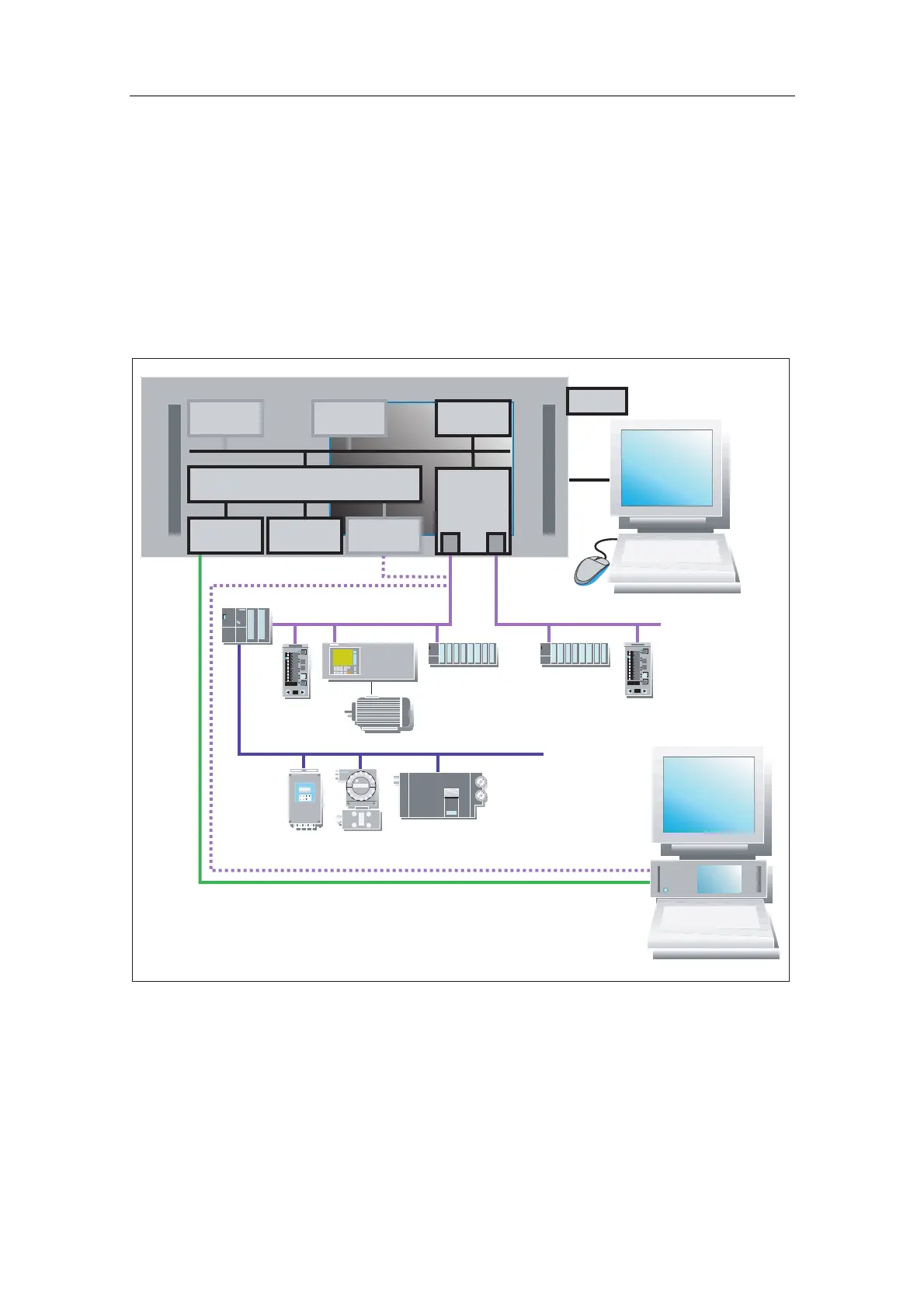

3.4.3 SIMATIC PCS 7 BOX with External Engineering Station
In this configuration variant, the Box PC 620 is used with runtime components
consisting of the AS/OS single station system and without an engineering
authorization. The engineering for the SIMATIC PCS 7 BOX station is performed
on an engineering station outside the Box PC 620. The engineering data must be
downloaded to the CPU 416-2 PCI integrated in the Box PC 620 and the
visualization data must be downloaded to the OS (WinCC) integrated in the Box
PC 620.
1
2
3
4
5
6
7
8
9
0
.
+/-
Clear
Enter
ESC
Info
MEAS
ULTRAMAT 6
S
63,29
36,72
o CAL oLIM oAR o CODE
Engineering station
PDM
(CP 5611)
24V DC
DP/PA-Link
PROFIBUS PA
PROFIBUS DPPROFIBUS DP
PDM OS
Simatic Net
CP 5611
on board
CPU 416-2
PCI + PS
PCMCIA
card
Ethernet
on board
ES
PROFIBUS MPI/DPPROFIBUS MPI/DP
SIMATIC PCS 7 BOX
MPI/
DP DP
combined plant / terminal bus (TCP/IP)
