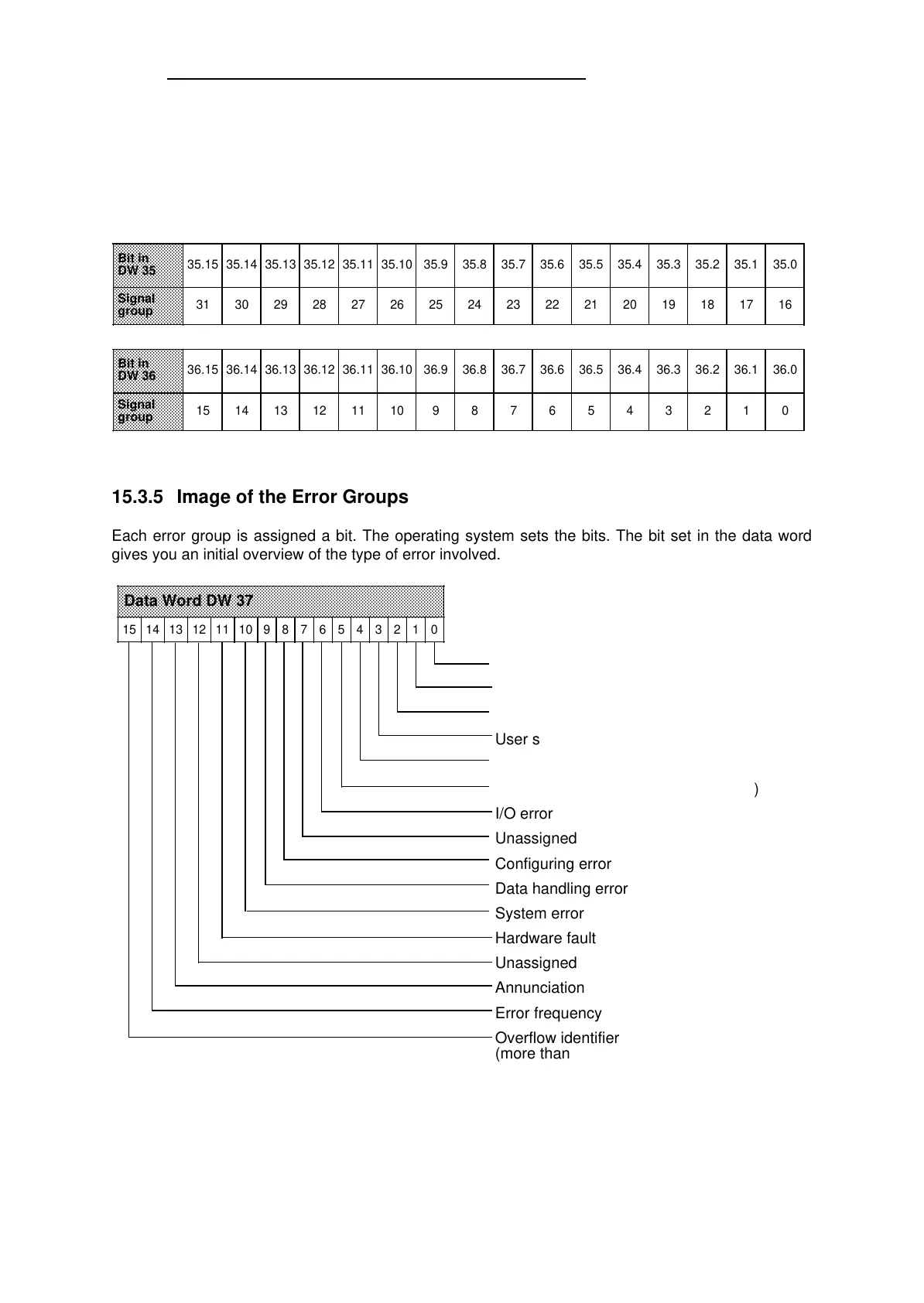

S5-95F Error Diagnosis and Elimination
15.3.4 Image of the Passivated Signal Groups
Each signal group is assigned one bit. The operating system sets the bit for a signal group as soon
as that group was passivated.
