Siemens SIMATIC S5-95F User Manual

S5-95F Dimension Drawing

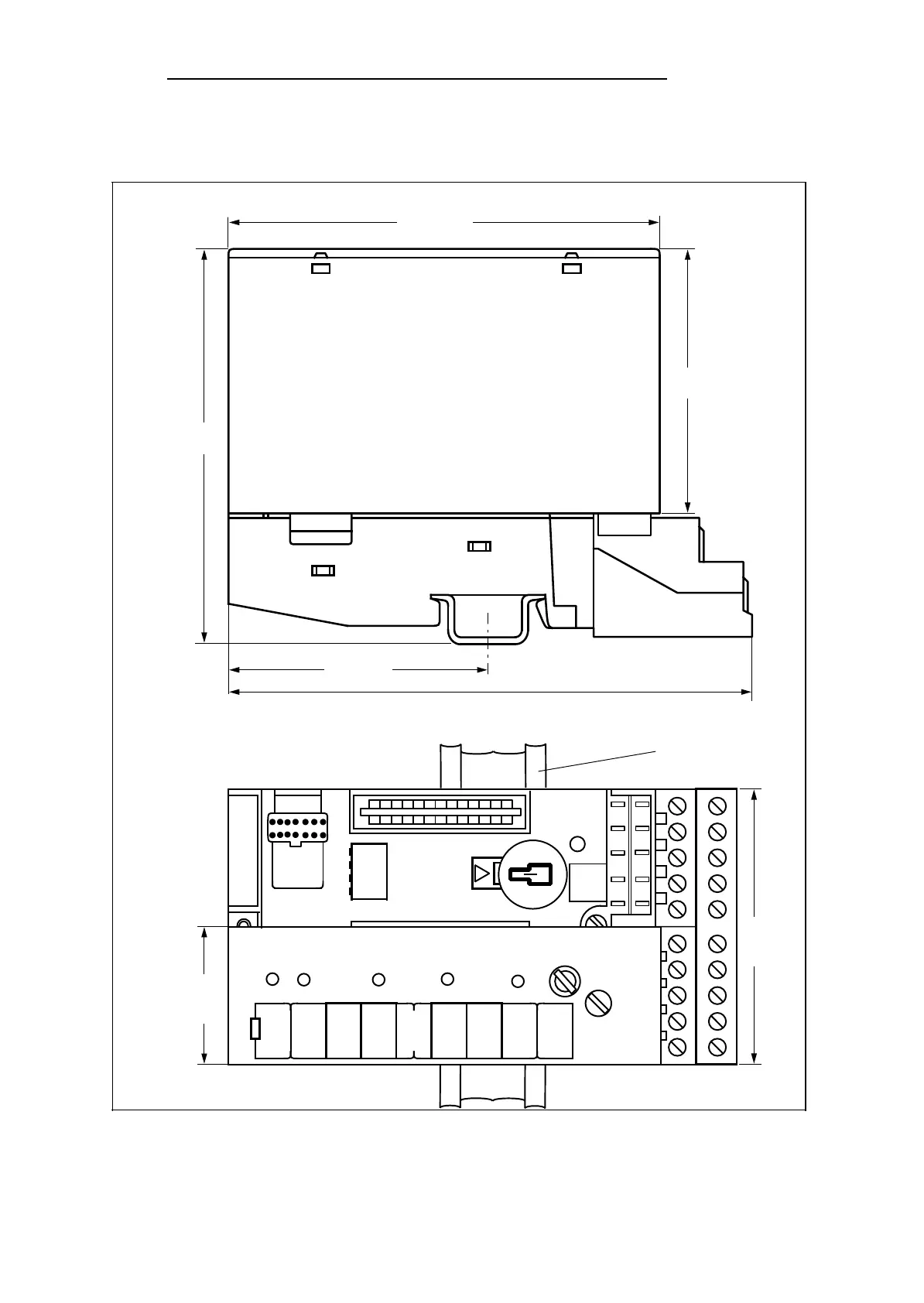

Figure B-3. Dimension Drawing of the Bus Unit (SIGUT Screw-type Terminals)
with I/O Module
81 (3.2)
135 (5.3)
85 (3.4)
127 (5)
162 (6.4) with screw-type terminals (6ES5 700-8MA11)
91.5
(3.6)
45.75
(1.7)
Standard
mounting rail
EN 50022-35×15
EWA 4NEB 812 6210-02 B-3
