Power supply modules
2.2 Power supply module PS 307; 2 A; (6ES7307-1BA00-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
2-5
Wiring diagram of PS 307; 2 A






/
0
'&9
9
/
0
/
1

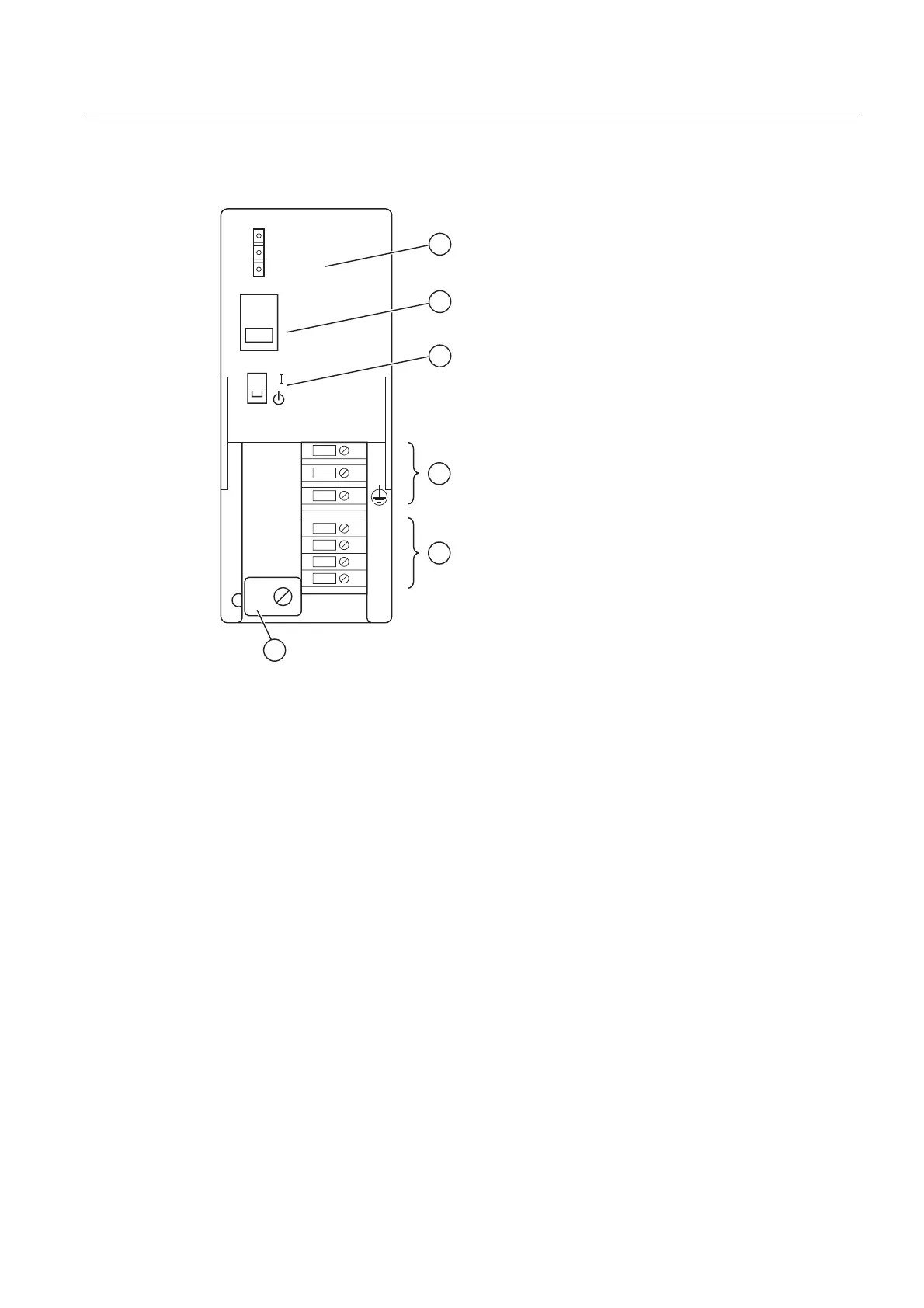

① "24 VDC output voltage present" display
② Mains selector switch
③ 24 VDC On/Off switch
④ Mains and protective conductor terminals
⑤ Terminals for 24 VDC output voltage
⑥ Strain-relief
