Siemens SIMATIC S7-300 Module data User Manual

RS 485 Repeater

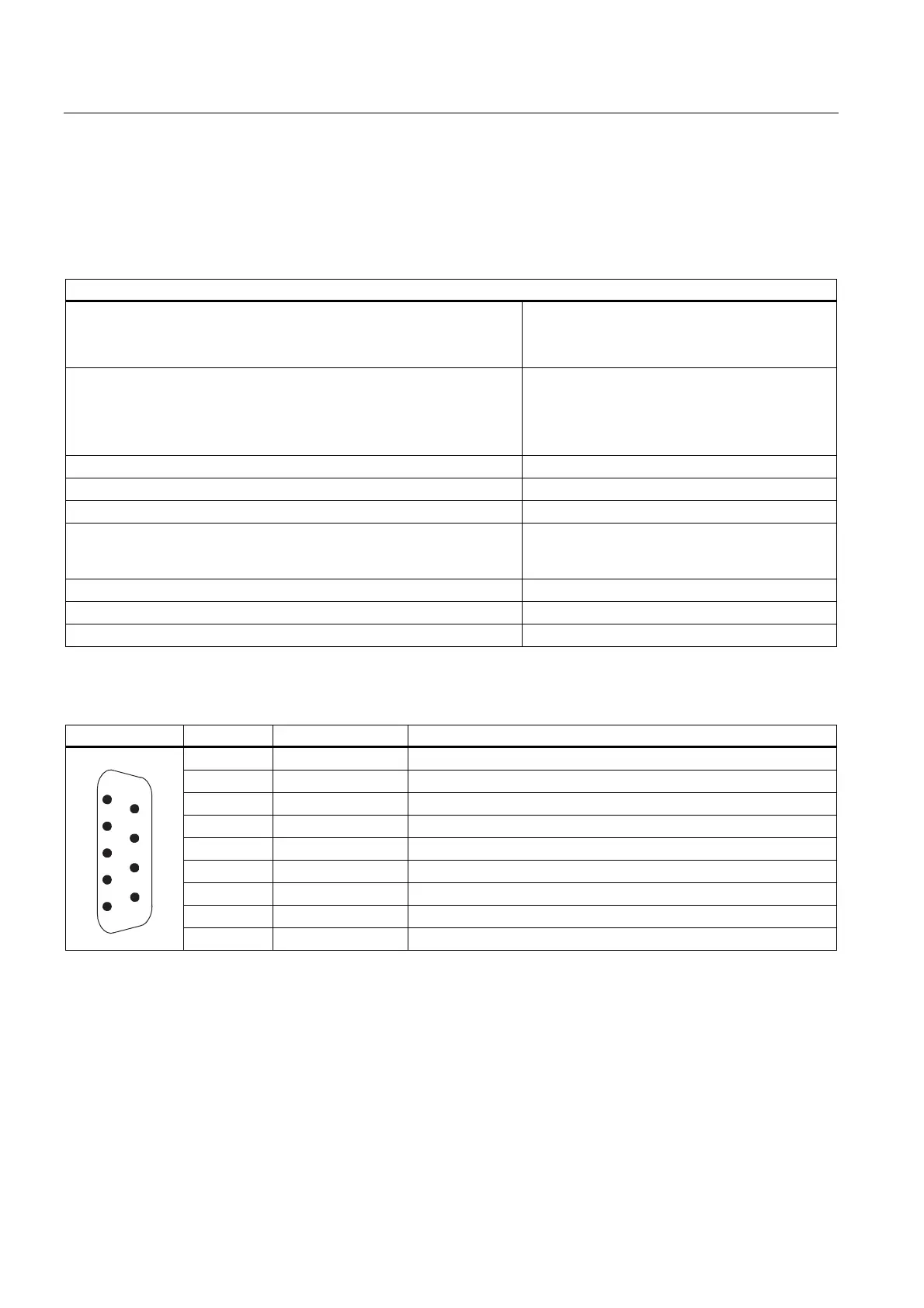

9.4 Technical data
S7-300 Automation System Module data
9-6 Manual, 08/2006, A5E00105505-04
9.4 9.4 Technical data
Technical data the RS 485 Repeater
Technical data
Power supply
• Rated voltage
• Ripple
24 VDC
20.4 VDC to 28.8 VDC
Current consumption at rated voltage
• without load on PG/OP socket
• Load on PG/OP socket (5 V/90 mA)
• Load on PG/OP socket (24 V/100 mA)
100 mA
130 mA
200 mA
Electrical isolation Yes, 500 VAC
Connection of fiber-optic conductors Yes, via repeater adapters
Redundancy mode No
Transmission rate (automatically detected by the repeater) 9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps,
187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps,
6 Mbps, 12 Mbps
Degree of protection IP 20
Dimensions W x H x D (mm) 45 x 128 x 67
Weight (includes packaging) 350 g
Pin assignment of the sub-D connector (PG/OP socket)
View Pin No. Signal name Designation
1 - -
2 M24V Ground 24 V
3 RxD/TxD-P Data line B
4 RTS Request To Send
5 M5V2 Data reference potential (from station)
6 P5V2 Supply plus (from station)
7 P24V 24 V
8 RxD/TxD-N Data line A









9 - -

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
