Siemens SIMATIC S7-300 Module data User Manual

Power supply modules
2.4 PS 307; 10 A power supply module; (6ES7307-1KA00-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
2-13
2.4 2.4 PS 307; 10 A power supply module; (6ES7307-1KA00-0AA0)
Order number
6ES7307-1KA00-0AA0
Properties
Properties of the PS 307; 10 A power supply module:
● Output current 10 A
● Output voltage 24 VDC; short circuit-proof, open circuit-proof
● Connection to singlephase AC mains
(rated input voltage 120/230 VAC, 50/60 Hz)
● Safety isolation to EN 60 950
● May be used as load power supply

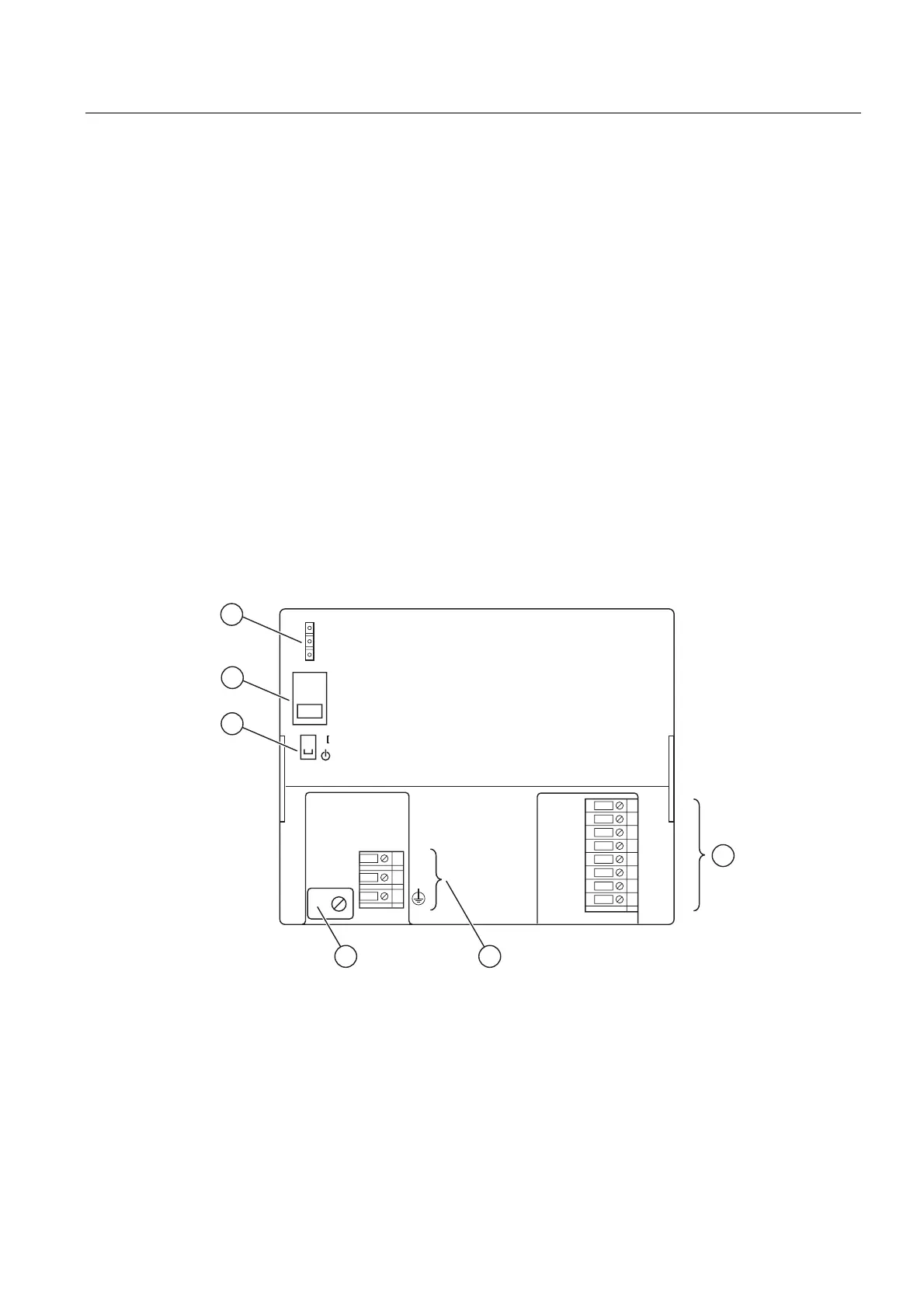

Wiring diagram of PS 307; 10 A





/
1
/
0
/
0
/
0
'&9
9
/
0
① "24 VDC output voltage present" display
② Terminals for 24 VDC output voltage
③ Mains and protective conductor terminals
④ Strain-relief
⑤ 24 VDC On/Off switch
⑥ Mains selector switch

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
