Power supply modules
2.3 PS 307; 5 A power supply module; (6ES7307-1EAx0-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
2-9
Wiring diagram of PS 307; 5 A
/
1
/
0
/
0
/
0
'&9
9

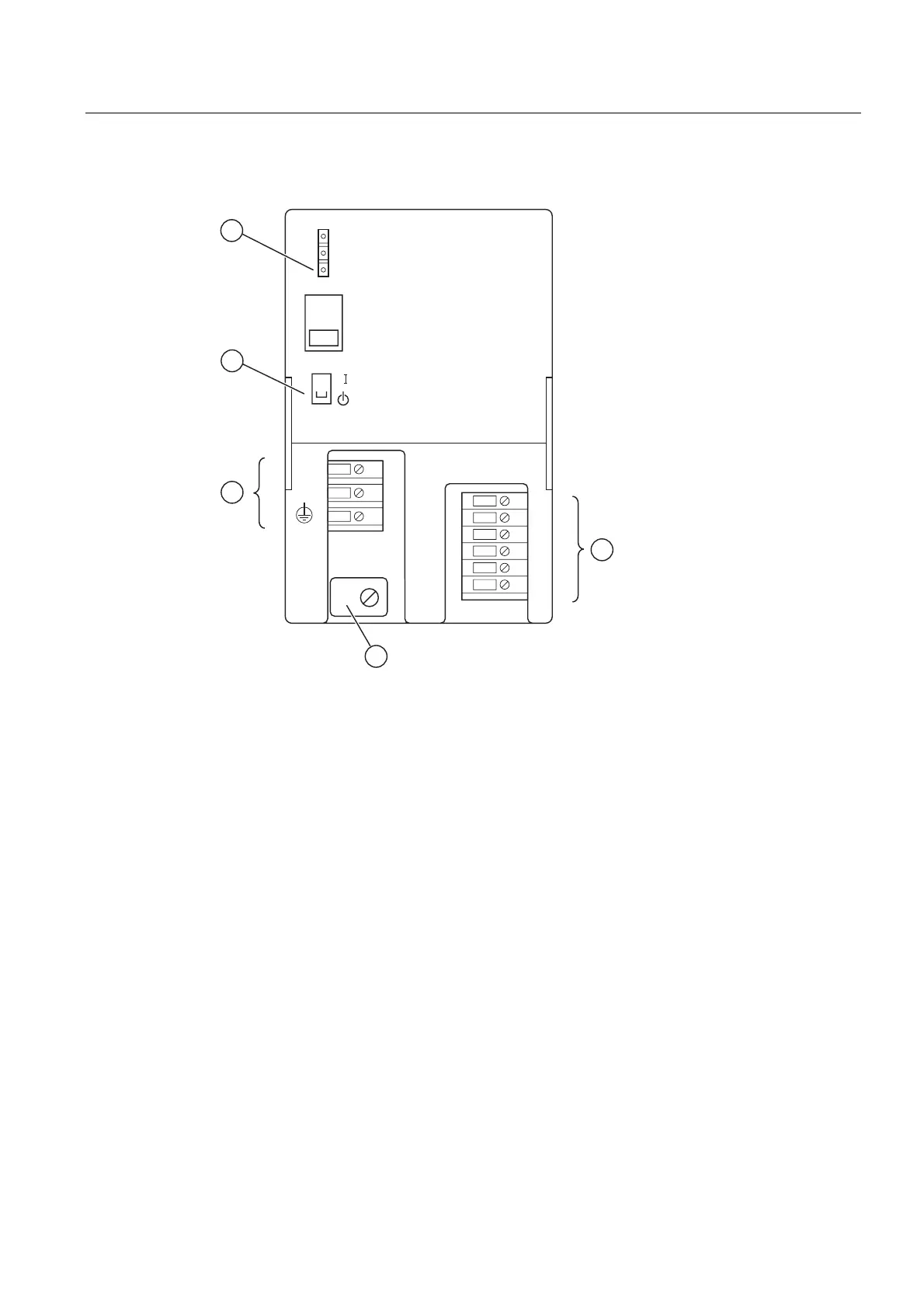

① "24 VDC output voltage present" display
② Terminals for 24 VDC output voltage
③ Strain-relief
④ Mains and protective conductor terminals
⑤ 24 VDC On/Off switch
⑥ Mains selector switch
To Next Page
