Connecting the Y connecting cable to the basic unit and to the current measuring module or
to the current / voltage measuring module
● Connect the connector in the middle of the Y connecting cable (1) on the basic unit
● Connect the connector at the end of the Y connecting cable (2) to a current measuring
module or current / voltage measuring module
● If you are using a decoupling module:
– Connect the connector at the end of the initialization cable (2) on the decoupling
module.
– Connect the decoupling module with a system interface connecting cable to the
current / voltage measuring module.

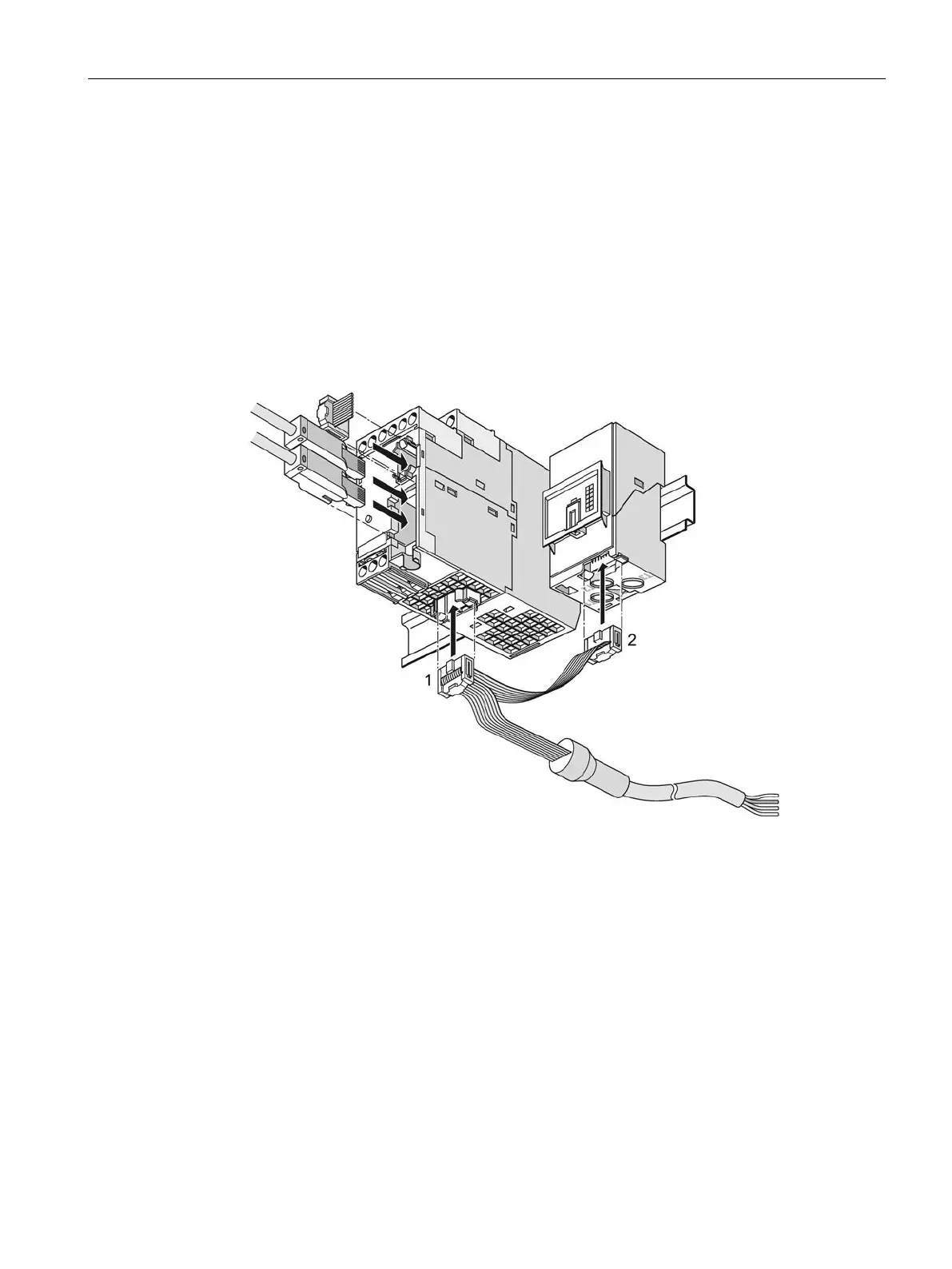

Figure 9-4 Connecting the Y connecting cable to the basic unit and to the current measuring
module or to the current / voltage measuring module
