Mounting, wiring, connecting, system interfaces, configuration guidelines
12.1 Mounting
SIMOCODE pro
192 System Manual, 05/2019, A5E40507475002A/RS-AD/004

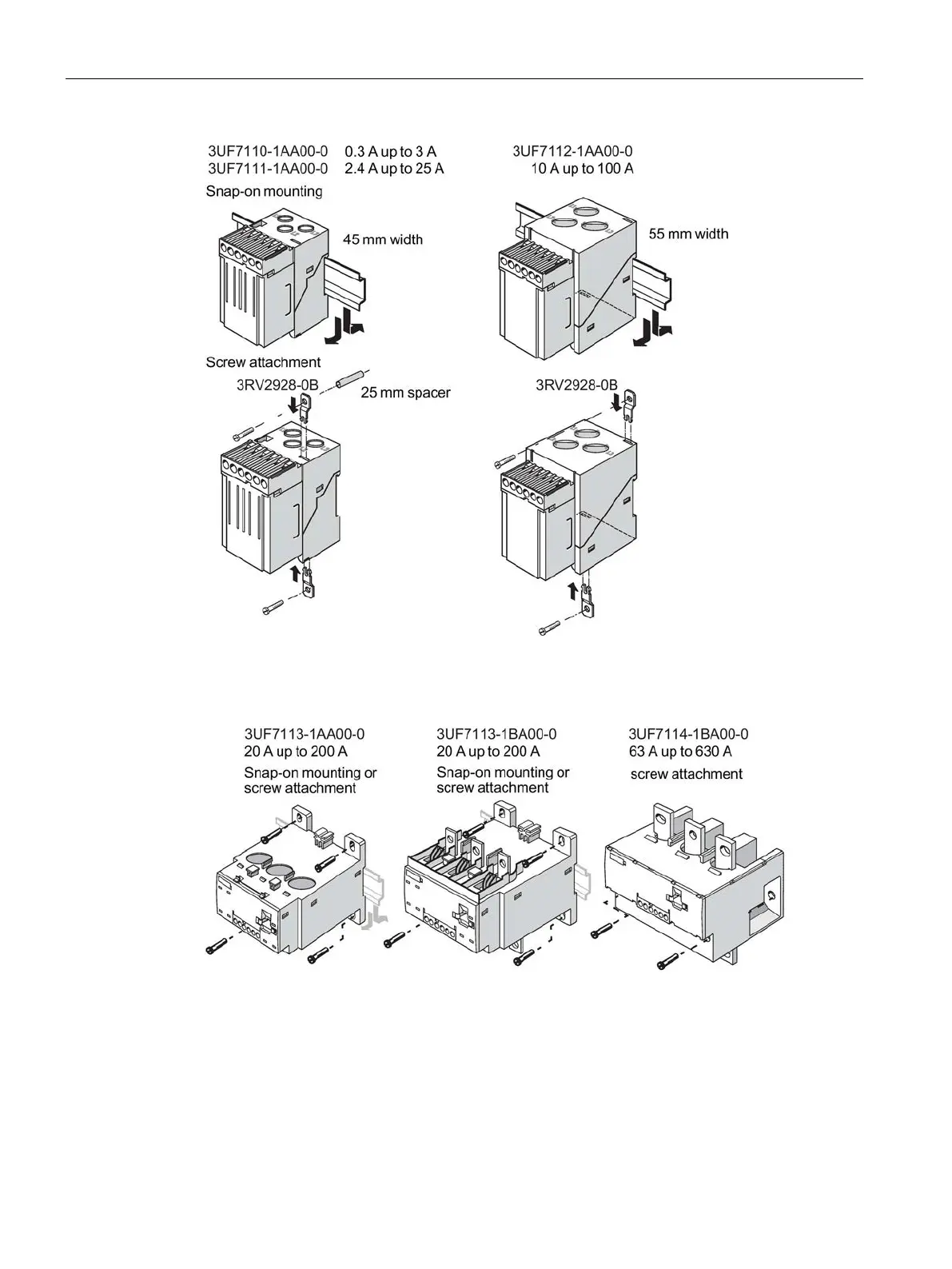

Figure 12-6 Mounting the current / voltage measuring modules UM with through-hole technology
Figure 12-7 Mounting the current / voltage measuring modules UM with bus connection system
