Siemens SIMOCODE pro V MR

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
218 System Manual, 05/2019, A5E40507475002A/RS-AD/004

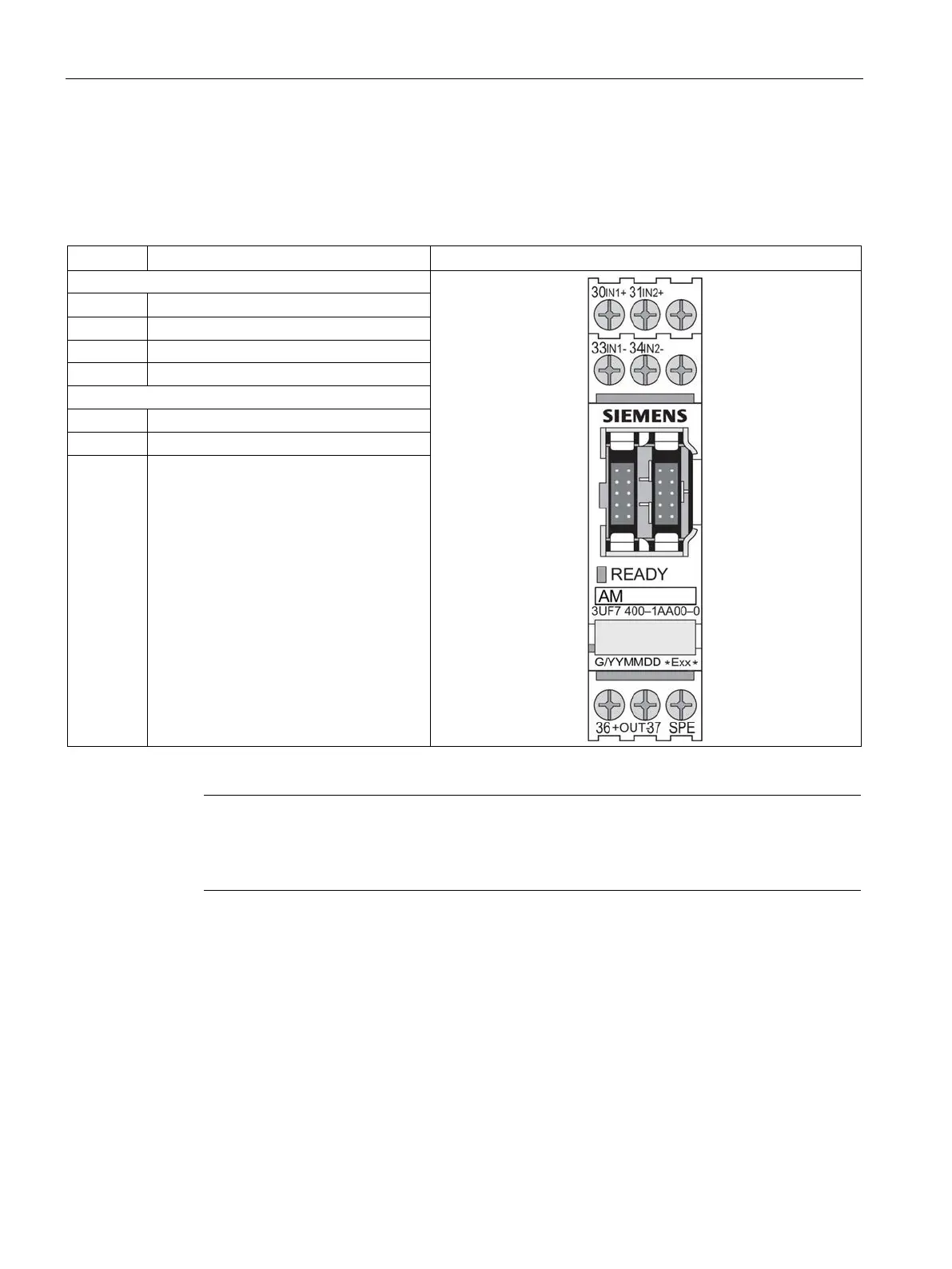

Terminal assignment of the analog module
The following table shows the assignment of the removable terminals:
Table 12- 16 Pin assignment of the removable terminals of the analog module
Terminal
Assignment
Upper terminals
30 Analog input IN1+
31
Analog input IN2+
33
Analog input IN1+
34
Analog input IN2+
Lower terminals
36
Analog output OUT+
37
Analog output OUT+
SPE
1)
System shielding
1)
Note
Conne
ct SIMOCODE pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possible to the functional ground of the control cabinet,
e.g. to the grounded mounting plate of the control cabinet.
