Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
225
Digital module DM-F PROFIsafe connection example
Fuse protection required!
Always install the prescribed fuse protection.
This ensures safe tripping in the event of a fault.

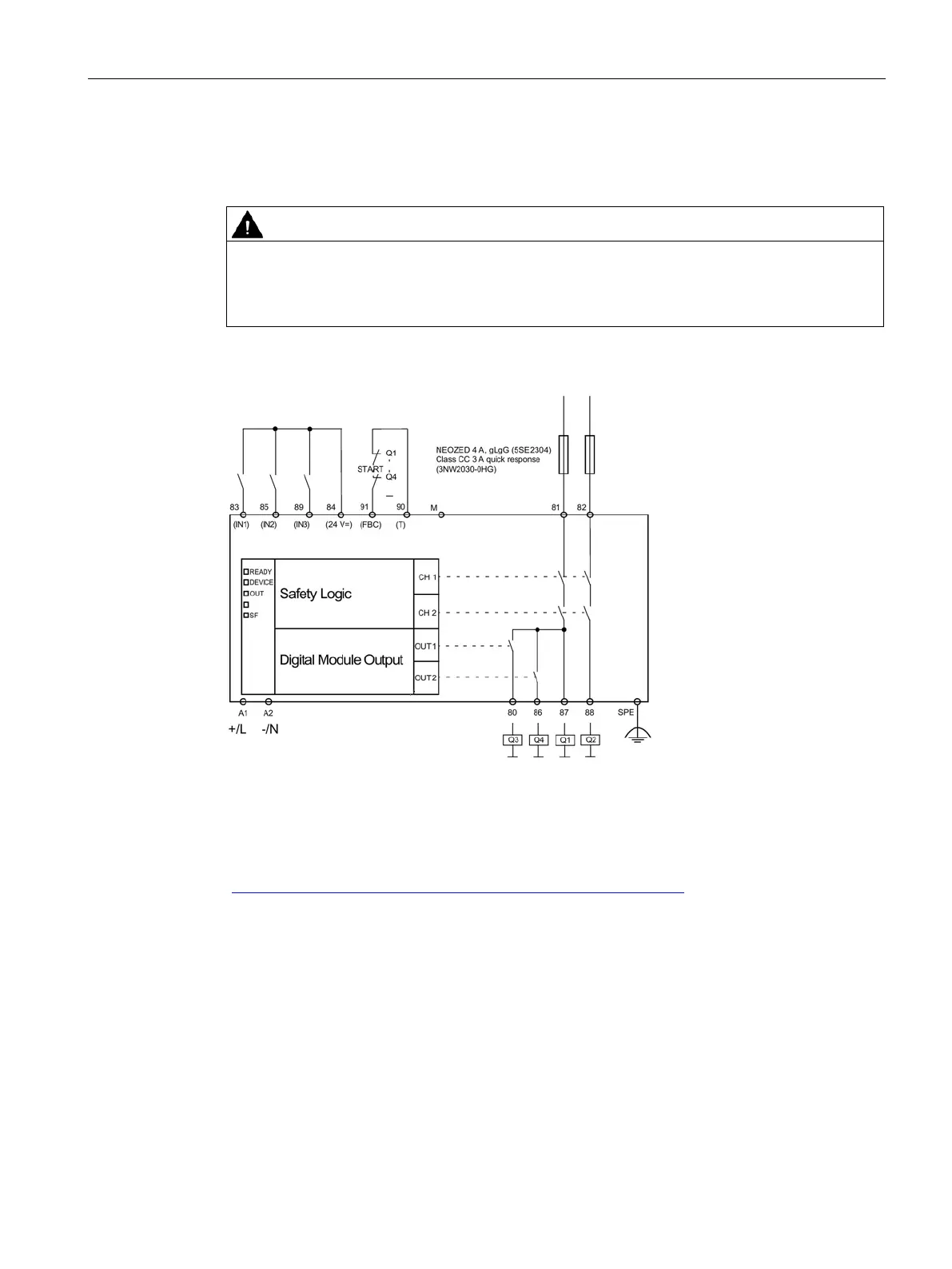

Figure 12-27 Block diagram of DM-F PROFIsafe
Connection examples fail-safe digital module DM-F
See Manual Fail-safe Digital Modules SIMOCODE pro
(https://support.automation.siemens.com/WW/view/en/50564852
).
