Mounting, wiring, connecting, system interfaces, configuration guidelines
12.3 System interfaces
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
239
The following figure shows an example for SIMOCODE pro S of connecting system
components to the system interfaces:

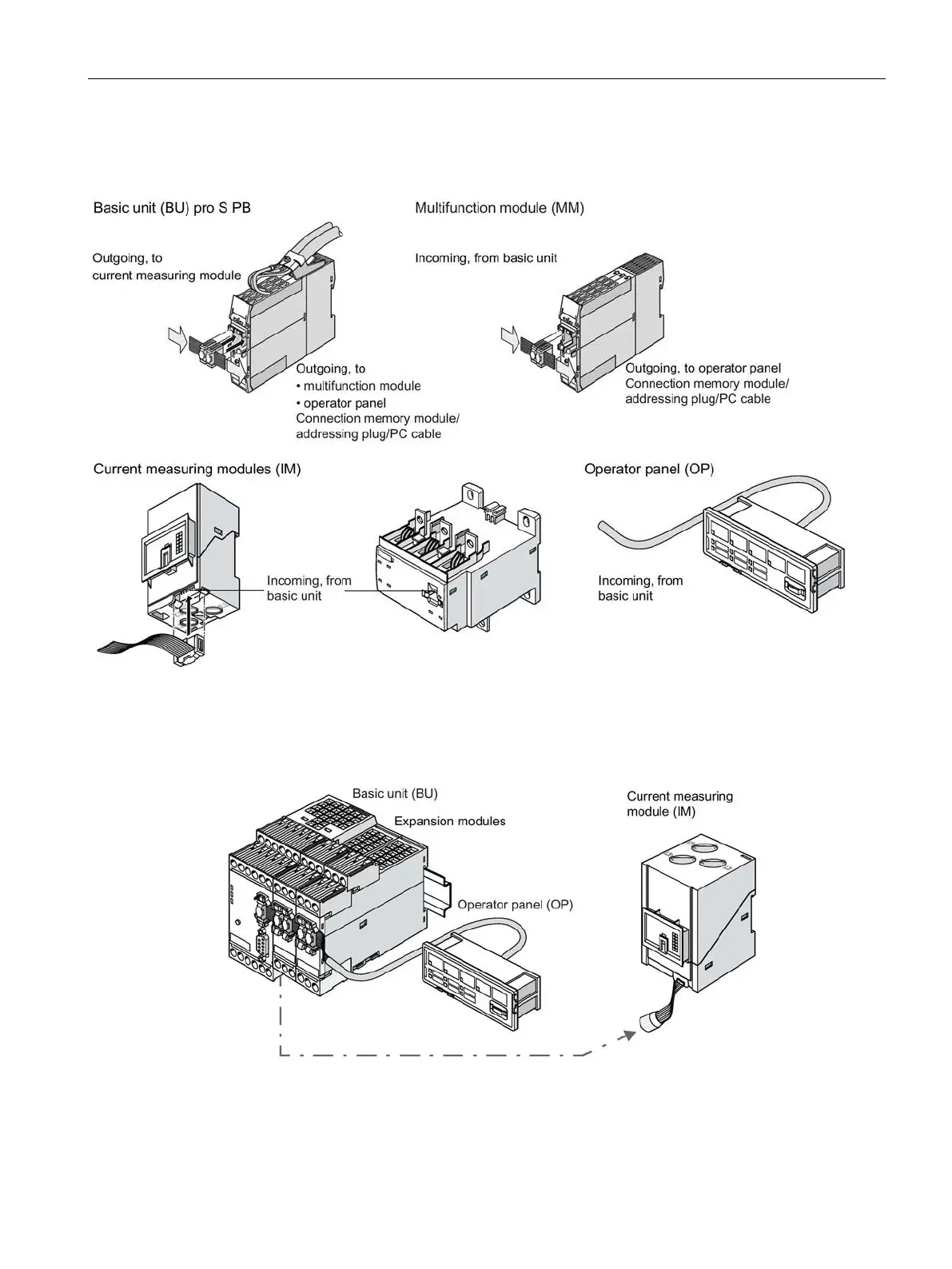

Figure 12-33 Example of system interface - SIMOCODE pro S
The following figure shows an example of a SIMOCODE pro V system installation:
Figure 12-34 Example of SIMOCODE pro V installation
