8.2 Operator panel (OP)
SIMOCODE pro
86 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Labeling strips:
Labeling strips are enclosed for designating buttons 1 to 4 and the yellow LEDs 1 to 3:
● Buttons 1 to 4: 6 pre-assigned labeling strips and 1 individually inscribable labeling strip
● LEDs 1 to 3: 1 individually inscribable labeling strip

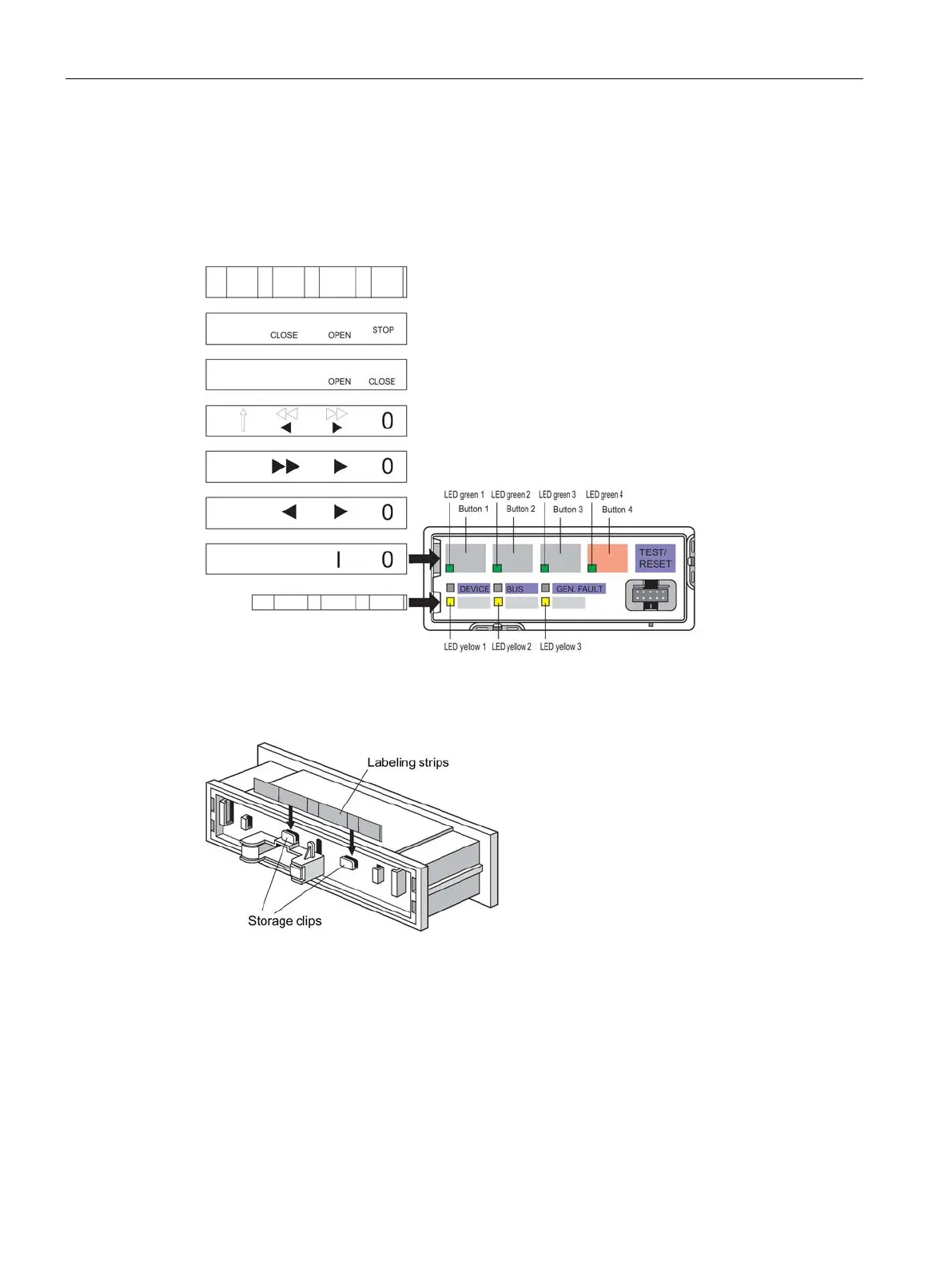

Figure 8-3 Labeling strips for operator panel buttons and LEDs
Unused labeling strips can be stored on the back of the operator panel:
Figure 8-4 Storage clips for labeling strips for pushbuttons and LEDs of the operator panel
