Description of system components
8.3 Operator panel with display
SIMOCODE pro
90 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Labeling strips:
Labeling strips for labeling buttons 1 to 4 (6 pre-assigned and 1 that can be labeled
individually) are included:

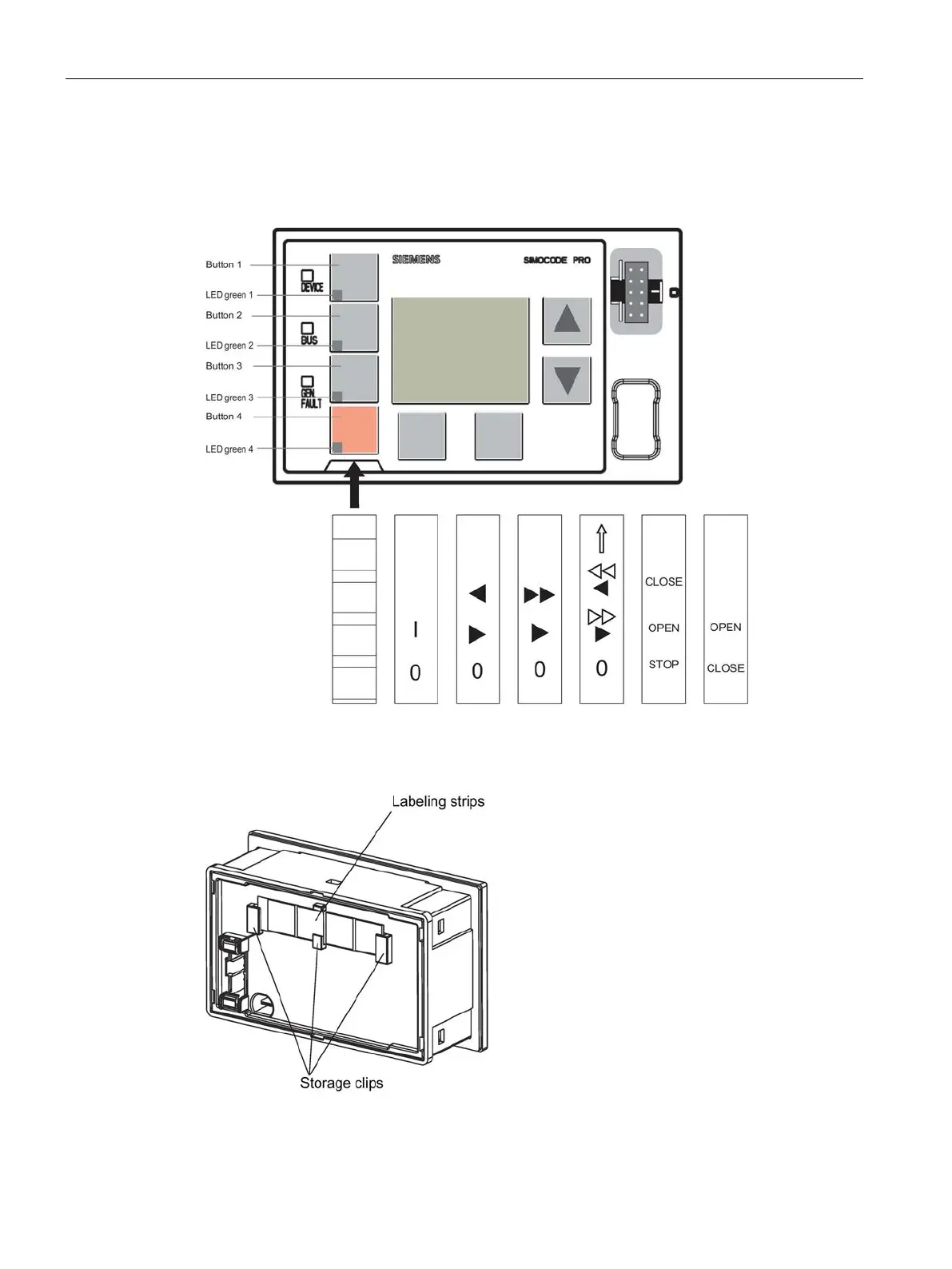

Figure 8-7 Labeling strips for the buttons of the operator panel with display
Unused labeling strips can be stored on the back of the operator panel with display:
Figure 8-8 Storage clips for labeling strips
