Features Type
Flexible, with wire-end ferrule without plastic
sleeve
0.2 mm² … 2.5 mm²
Flexible, with wire-end ferrule with plastic
sleeve
0.2 mm² … 1.5 mm²
AWG / kcmil 22 … 12
Stripped length 6 … 7 mm
Tool Screwdriver 0.5 x 3 mm (M2.5)
Tightening torque 0.4 to 0.5 Nm
Max. current carrying capacity, incl. loop-through 20 A (15 A per UL/CSA)
Max. cable length 10 m
Interface assignments
Table 4-11 Power supply X124
Pin Signal name Signal type Meaning
1 P24 VI Power supply 24 V
2 P24 VI 24 V power supply
3 G VO Ground
4 G VO Ground
Signal type: VI = Voltage input (power supply) VO = Voltage output (power supply)
Note
The
24 V is looped through via the 24 V connector. In this case, pin 1 is jumpered with pin 2,
and pin 3 is jumpered with pin 4.

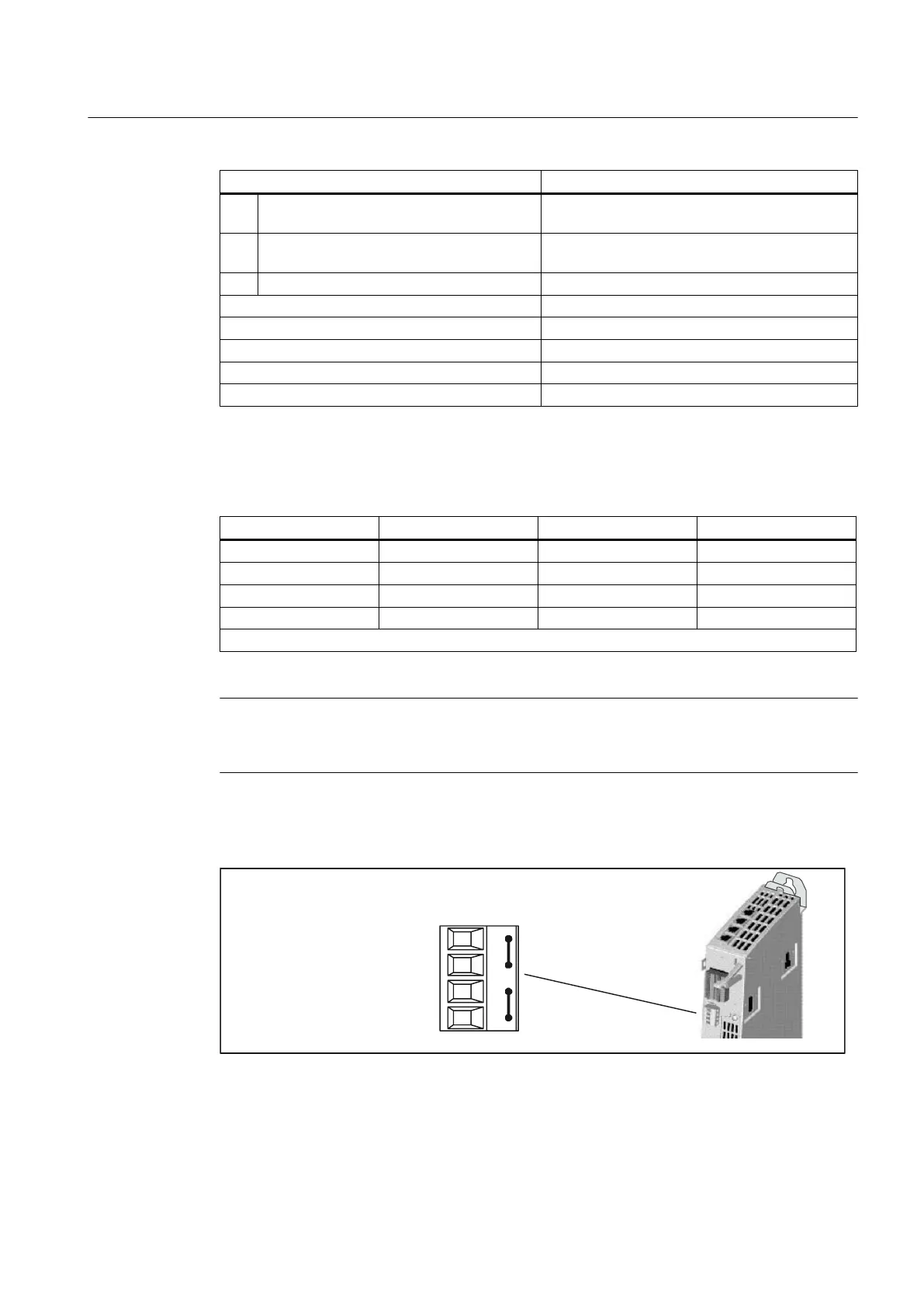

Position of power supply interface
Figure 4-5 Power supply interface
Interfaces
4.5 Power supply
SIMOTION D4x5
Manual, 04/2014 59
