4.7 Slot for CompactFlash Card
Features
Type: 50-pin connector
This interface should only be used to insert a special SIMOTION CompactFlash Card (CF card).
Consult the relevant references for detailed information about the SIMOTION CF card.
See also
SIMOTION CompactFlash Card (Page 36)
4.8 Measuring sockets
Application
The X131-X134 measuring sockets are used to output analog signals. Any interconnectable
signal can be output via SINAMICS on every measuring socket on the control unit.
Note
The measuring sockets should be used exclusively for servicing purposes.
The measurements may only be performed by appropriately trained specialists.
The
measuring sockets are suited for multiple-spring wire connectors with a diameter of 2 mm.

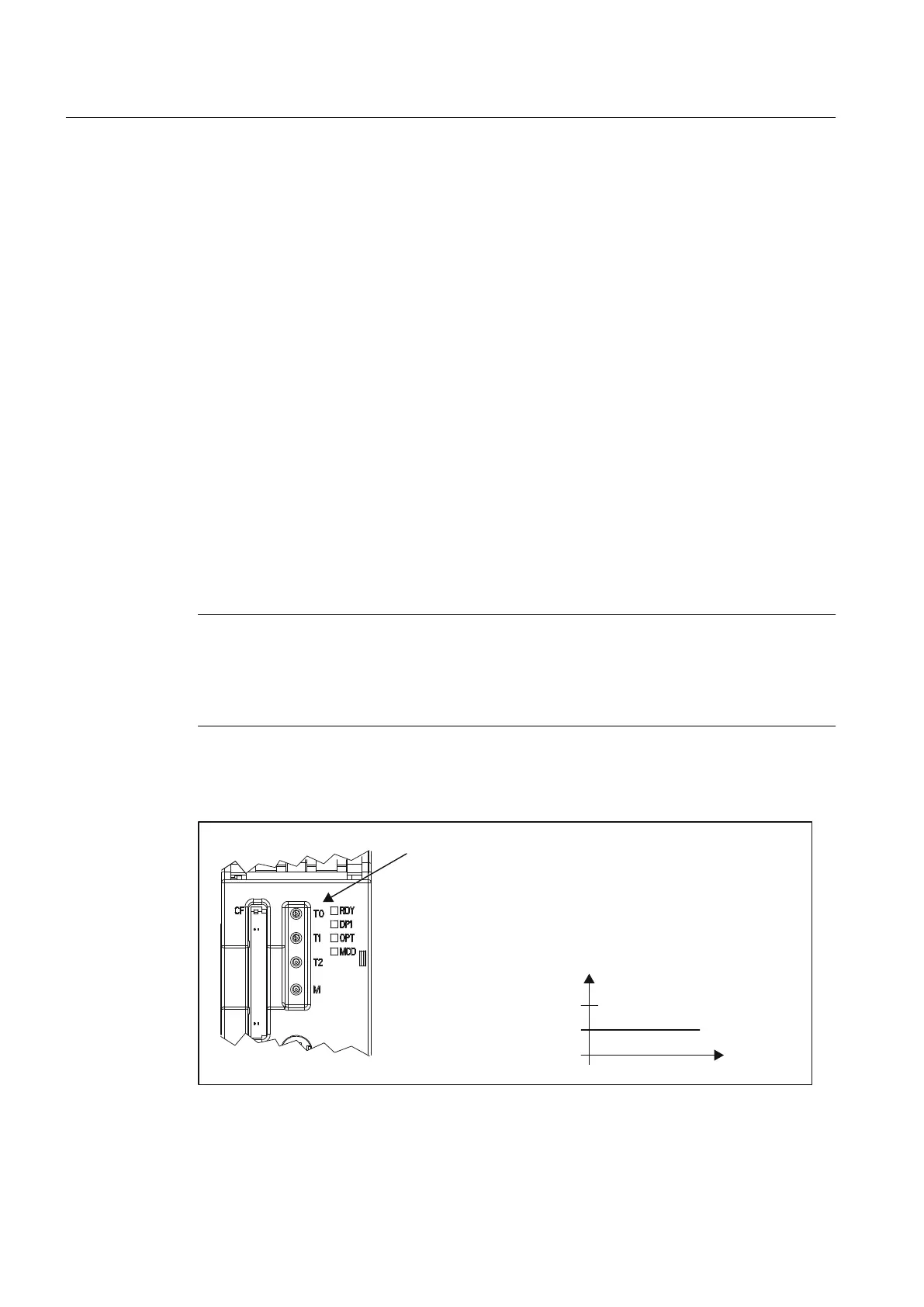

Measuring socket position
9
9
9
RIWKHPHDVXULQJVLJQDO
0HDVXULQJVLJQDO
IRUWKHGHIDXOWVFDOLQJVHWWLQJ
0HDVXULQJVRFNHWVPP
70HDVXUHPHQWVRFNHW
70HDVXUHPHQWVRFNHW
70HDVXUHPHQWVRFNHW
05HIHUHQFH
Figure 4-7 Measuring socket arrangement
Interfaces
4.8 Measuring sockets
SIMOTION D4x5
62 Manual, 04/2014
