4.9 USB interfaces
The USB interfaces are used for upgrading the SIMOTION D4x5 via a USB stick.
Table 4-15 Interfaces X125 and X135
Features Versions
Connector type Double USB socket – type A
Version USB 2.0
Current carrying capacity 0.5 A per channel
Note
The 5 V power supply is designed to be short-circuit proof.
The USB interfaces are located on the front of the SIMOTION D4x5.

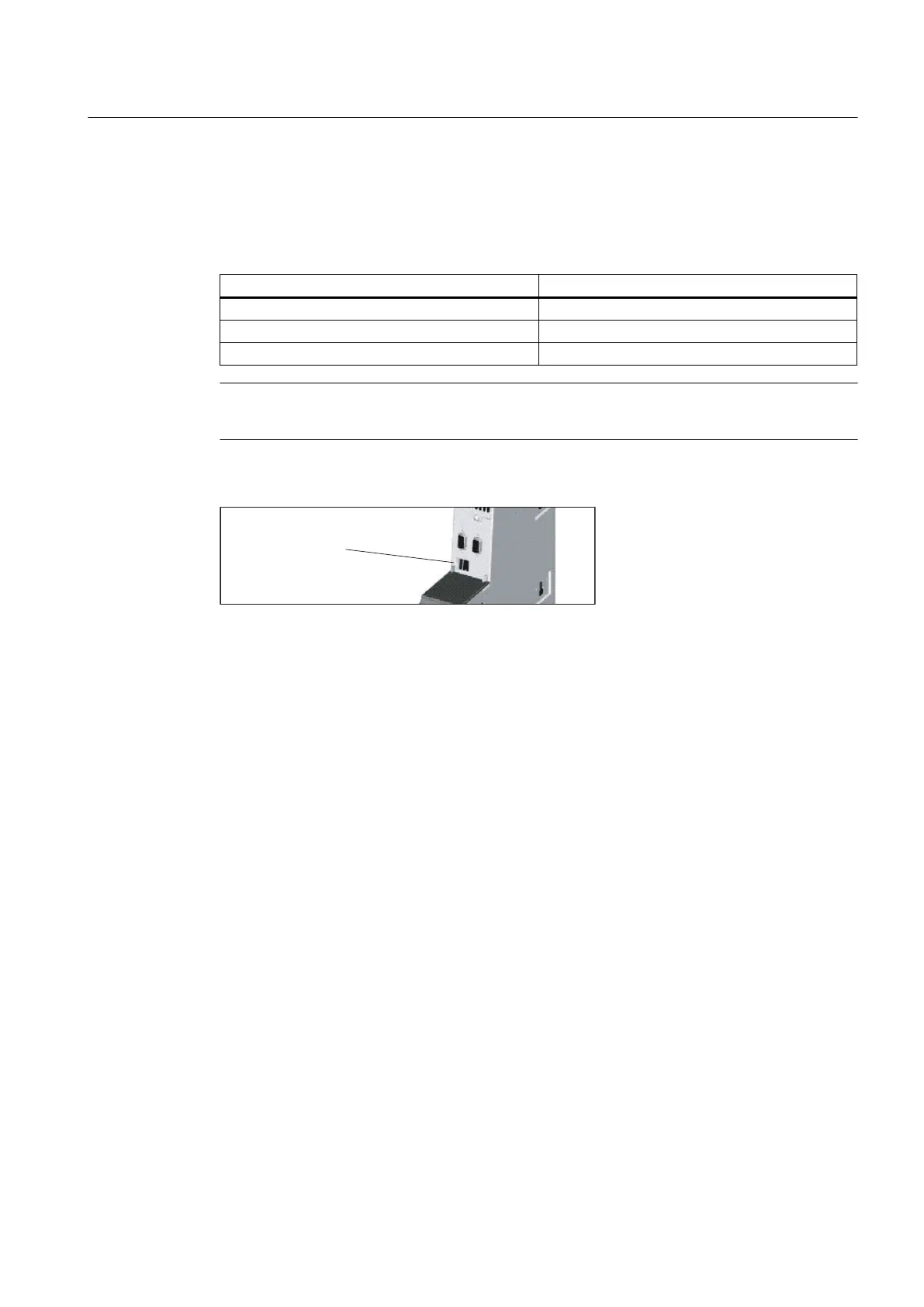

Figure 4-8 Location of USB interfaces (X125 on left, X135 on right)
4.10
Option slot
Plug-in options
Either of the following Option Boards can be plugged into the option slot:
● TB30 Terminal Board, for further details see Section Description of TB30 (Page 88)
● CBE30 Ethernet Communication Board, for further details see Section CBE30
communication board (Page 107).
Interfaces
4.10 Option slot
SIMOTION D4x5
Manual, 04/2014 63
