7.4.2.2 DRIVE-CLiQ interface

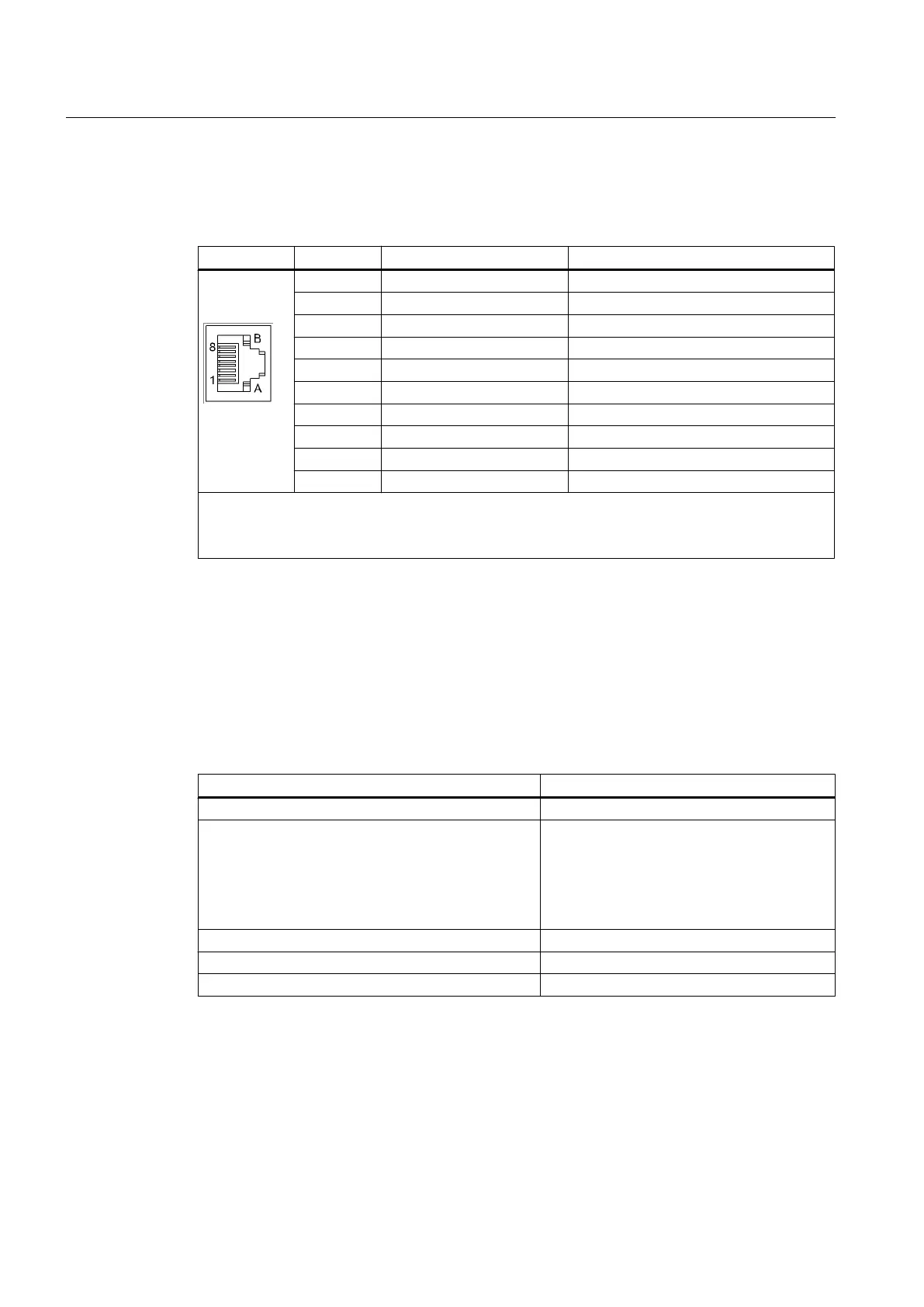

Table 7-14
DRIVE-CLiQ interface X100 – X103
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B M (0 V) Electronic ground
Dust protection filler plugs for sealing unused DRIVE-CLiQ ports
●
3 filler plugs contained in the CX32 scope of delivery
● Filler plugs (50 pcs) order number: 6SL3066-4CA00-0AA0
7.4.2.3 Digital inputs/outputs (X122)
Interface characteristics
Sensors and actuators can be connected to the X122 connector via digital inputs and
outputs.
Table 7-15
X122 wiring
Characteristics Type
Connector type Micro Combicon
Connectable cable types:
●
Rigid
● Flexible
● Flexible, with wire-end ferrule without plastic sleeve
● AWG / kcmil
Conductor cross-sections:
● 0.14 mm
2
to 0.5 mm
2
● 0.14 mm
2
to 0.5 mm
2
● 0.25 mm
2
to 0.5 mm
2
● 26 to 20
Stripped length 8 to 9 mm
Tool Screwdriver 0.4 x 2.0 mm
Max. current carrying capacity (ground) 4 A
Position of the connector
The X122 connection is on the front side of the CX32 at the top, see appropriate figure in
Chapter Overview of interfaces
(Page 96).
Supplementary system components
7.4 Controller Extension CX32
SIMOTION D4x5
98 Manual, 04/2014
