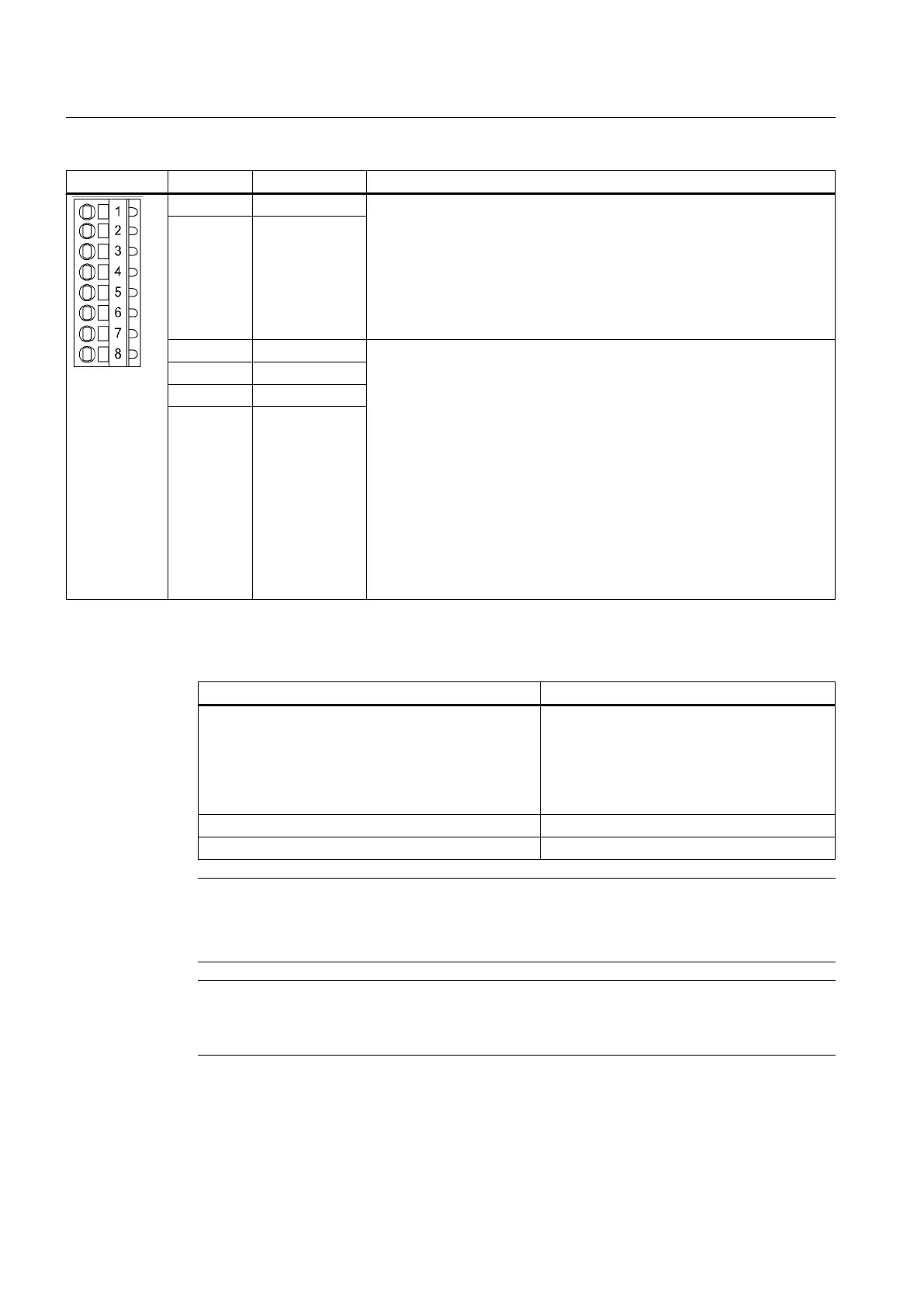

Terminal Designation
1)
Technical specifications
3
Input delay:
● L ⇒ H: approx. 20 μs
● H ⇒ L: approx. 100 µs
Level (including ripple):
● High signal level: 15 V to 30 V
● Low signal level: -3 V to 5 V
DI 2
4 DI 3
5 DO 0 Voltage: 24 VDC
Max. load current per output: 500 mA
Ground reference: X424 (M terminal)
Continuous short-circuit-proof
output delay:
●
L ⇒ H: Typically 150 μs at 0.5 A ohmic load (500 μs max.)
● H ⇒ L: Typically 50 μs at 0.5 A ohmic load
Switching frequency:
● With resistive load: max. 100 Hz
● With inductive load: max. 0.5 Hz
● With lamp load: max. 10 Hz
Maximum lamp load: 5 W
6 DO 1
7 DO 2
8 DO 3
1) DI: digital input, DO: Digital output
Table 7-6
X481 wiring
Characteristics Type
Connectable cable types:
●
Rigid
● Flexible
● Flexible, with wire-end ferrule without plastic sleeve
● AWG / kcmil
Conductor cross-sections:
● 0.14 mm
2
to 0.5 mm
2
● 0.14 mm
2
to 0.5 mm
2
● 0.25 mm
2
to 0.5 mm
2
● 26 to 20
Stripped length 8 to 9 mm
Tool Screwdriver 0.4 x 2.0 mm
Note
An open input is interpreted as "low".
The power supply and the digital inputs/outputs are isolated from the Control Unit.
Note
With momentary interruptions in the 24 V supply, the digital outputs are deactivated during
this time.
Supplementary system components
7.3 TB30 terminal board
SIMOTION D4x5
92 Manual, 04/2014
