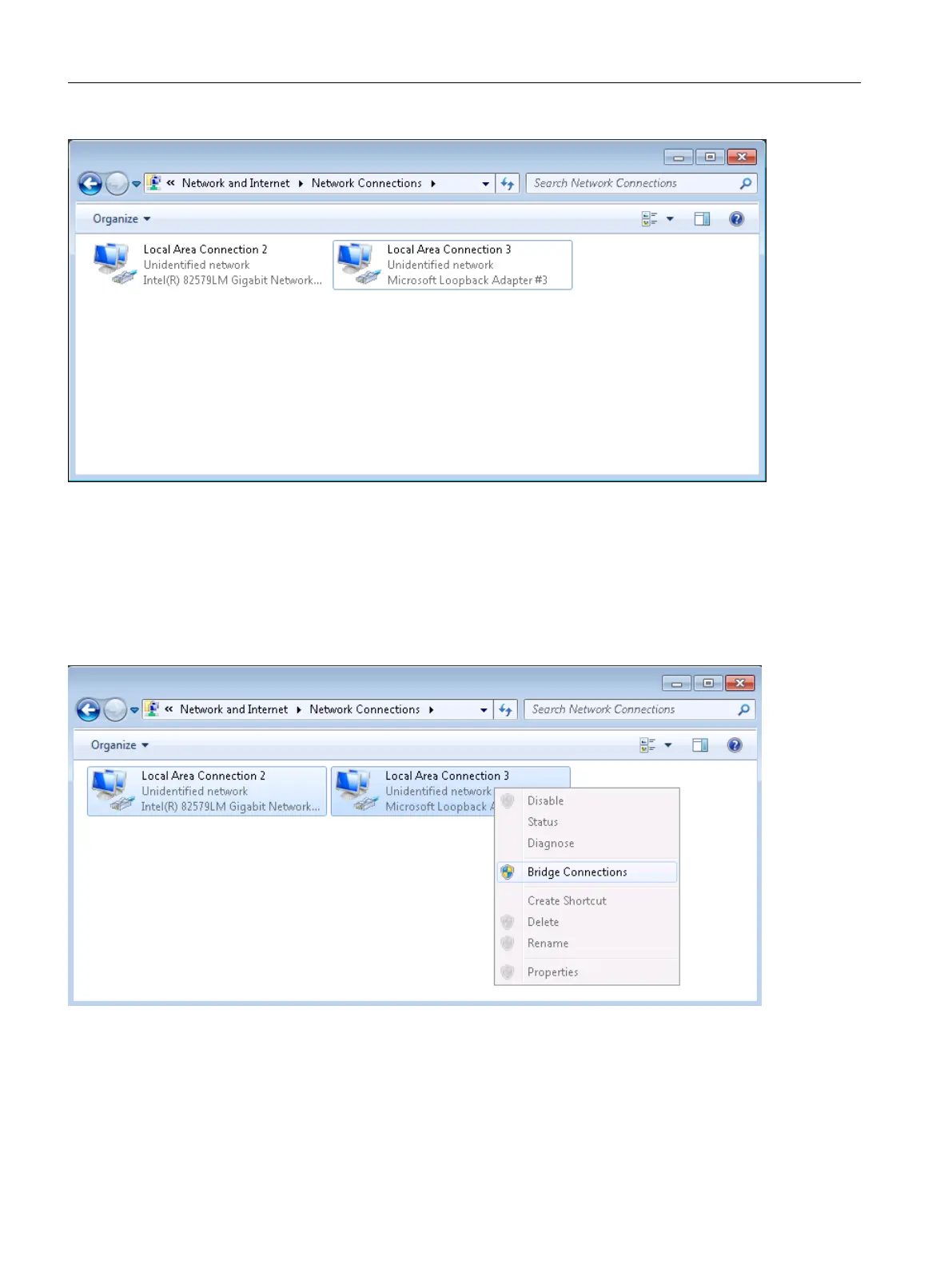

Figure 3-17 Network connections - Display of the newly installed Microsoft loopback adapter
Creating the network bridge
To activate the network bridge, proceed as follows:
1. Select both adapters at Network Connections
2. Select Bridge Connections via the context menu.
Figure 3-18 Network Connections - Setting the Bridge Connection
Description
3.3 HMI and SIMOTION SCOUT
SIMOTION P320-4 E / P320-4 S
70 Commissioning and Hardware Installation Manual, 11/2016
