Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.3 SINAUT modem
Hardware and Software
88 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

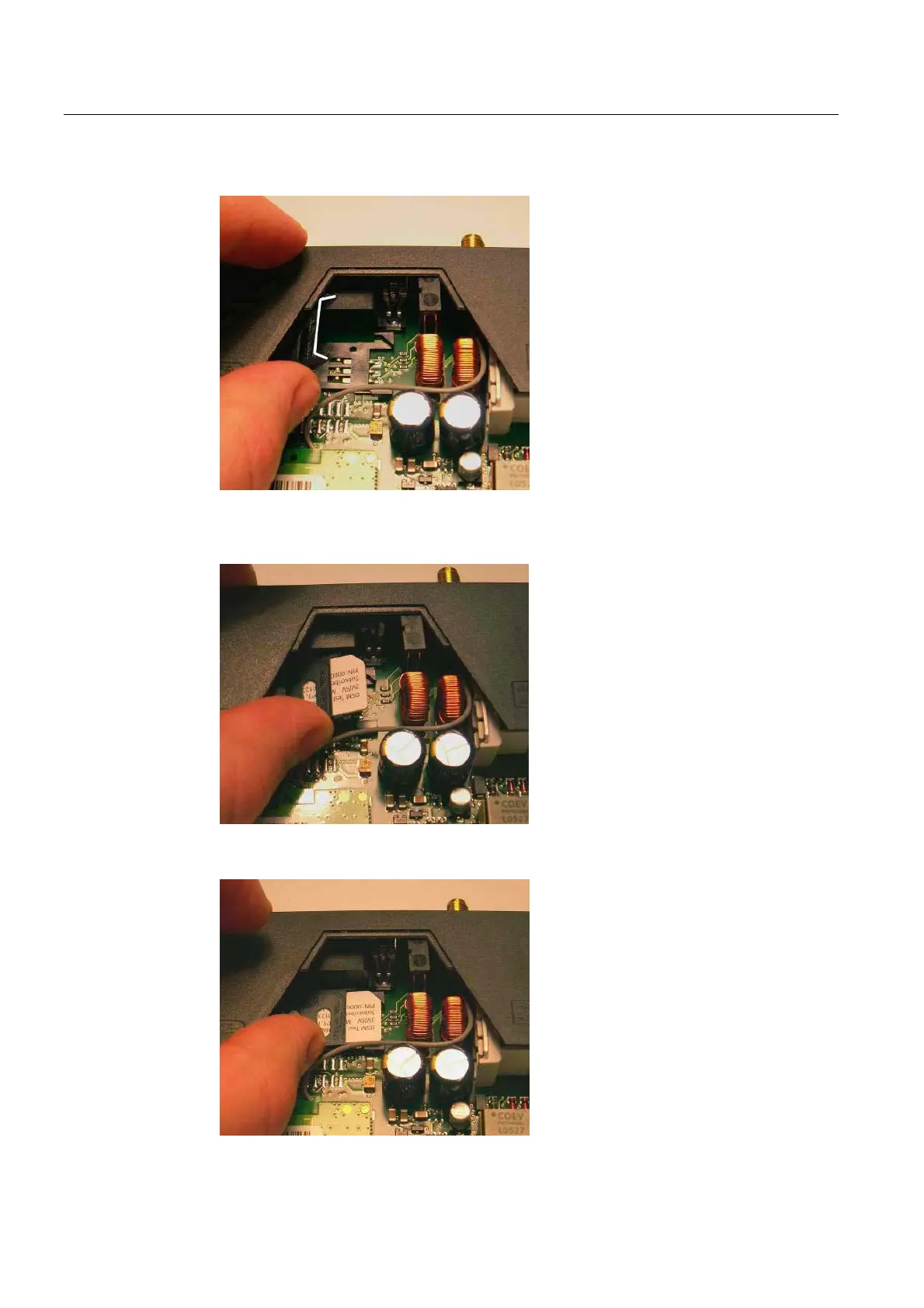

The slot for the SIM card in the upper section is shown in white in the following diagram:
3. Insert the SIM card into the upper section of the SIM card holder so that the contact
surface is at the bottom and the sloped corner of the SIM card points towards the front of
the device.
4. Insert the SIM card far enough so that the upper section of the SIM card holder can again
be flipped downwards.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
