9.2.14 FB 175 Display tool data from buffer
9.2.14 FB 175 ANZ-ZWSP
Display tool data from buffer
Description
The block selects the associated tool data in accordance with the cursor position in the display
"Display buffer" and initializes the display data in the display "Display tool data".
In case of an error, an interactive text is output together with an error message.
Block data
Lib. No. : 10050
FBs to be loaded : FB 175, FB 132
DBs to be loaded : None
Type of FB call : Conditional in FB 160
DBs to be input : None
Error messages : 19: No D No. available

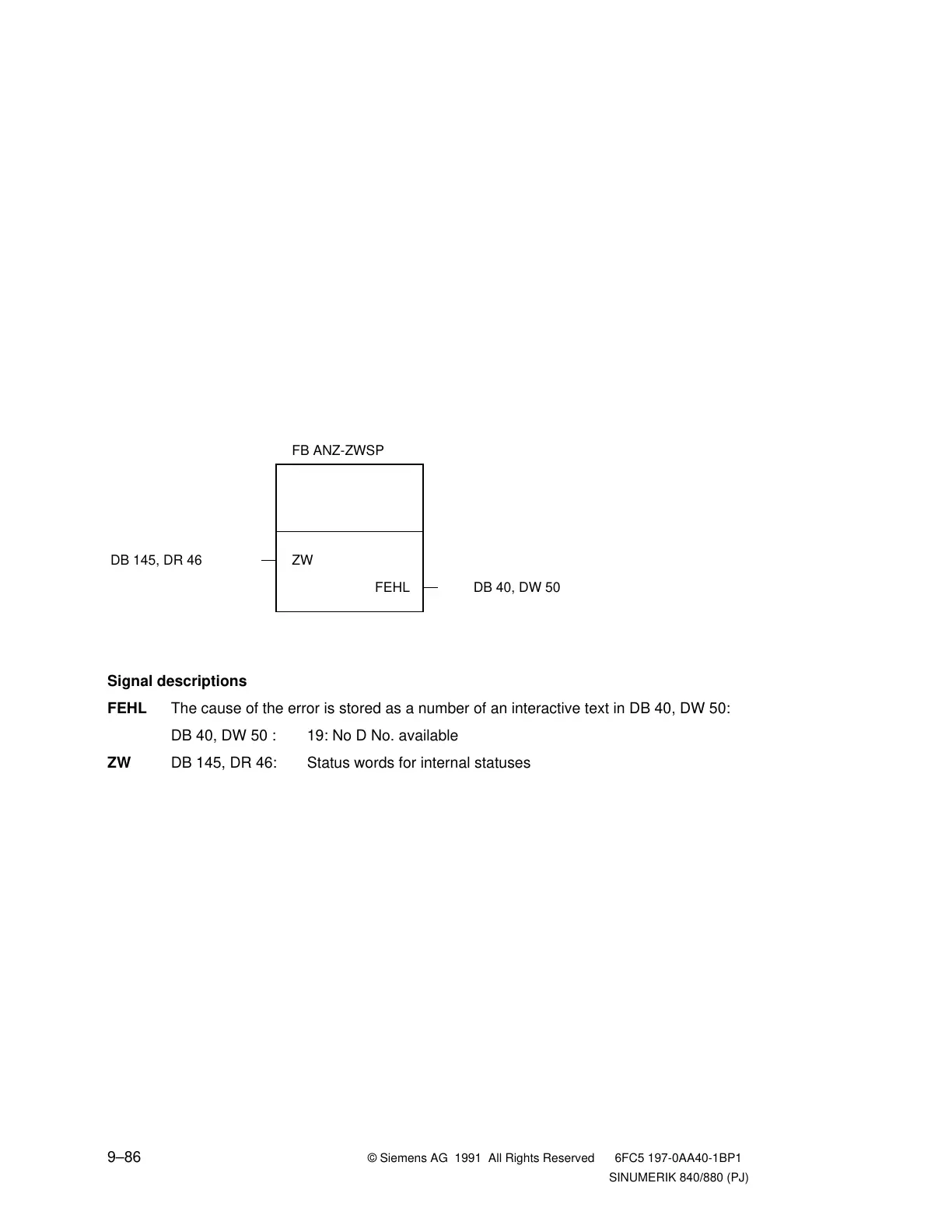

Block call FB 175
