9.2.18 FB 179 Tools selected according to cursor position
9.2.18 FB 179 WZ-CURSR
Tools selected according to cursor position
Description
The FB 172 initializes the "Selected tools" display with the display parameters of the tool
selected via the cursor position. The block first deletes the selection buffer, then selects the
tools according to the cursor position and copies them into the selection buffer. The following
criteria are available:
ID number, tools whose prewarning limit is reached, tool size, occupied locations.
The block requires the selection buffers DB 183 to DB 189 (length: 50 words) that are created
by the FB 161 at a restart. The block at first searches the buffer and afterwards all chained
magazines starting from the magazine to be loaded.
The following message appears if more than 50 tools have been found: "Selection buffer full!".
In case of an error, a user-specific text is output together with the corresponding error
message.
Block data
Lib. No. : 10050
FBs to be loaded : FB 111, FB 132, FB 164, FB 179
DBs to be loaded : None
Type of FB call : Conditional in FB 160
DBs to be input : DB 183, DB 184, DB 185, DB 186, DB 187, DB 188, DB 189
Error messages : 01: No tool found
02: Magazine not available
03: Illegal criterion
11: Selection buffer full!

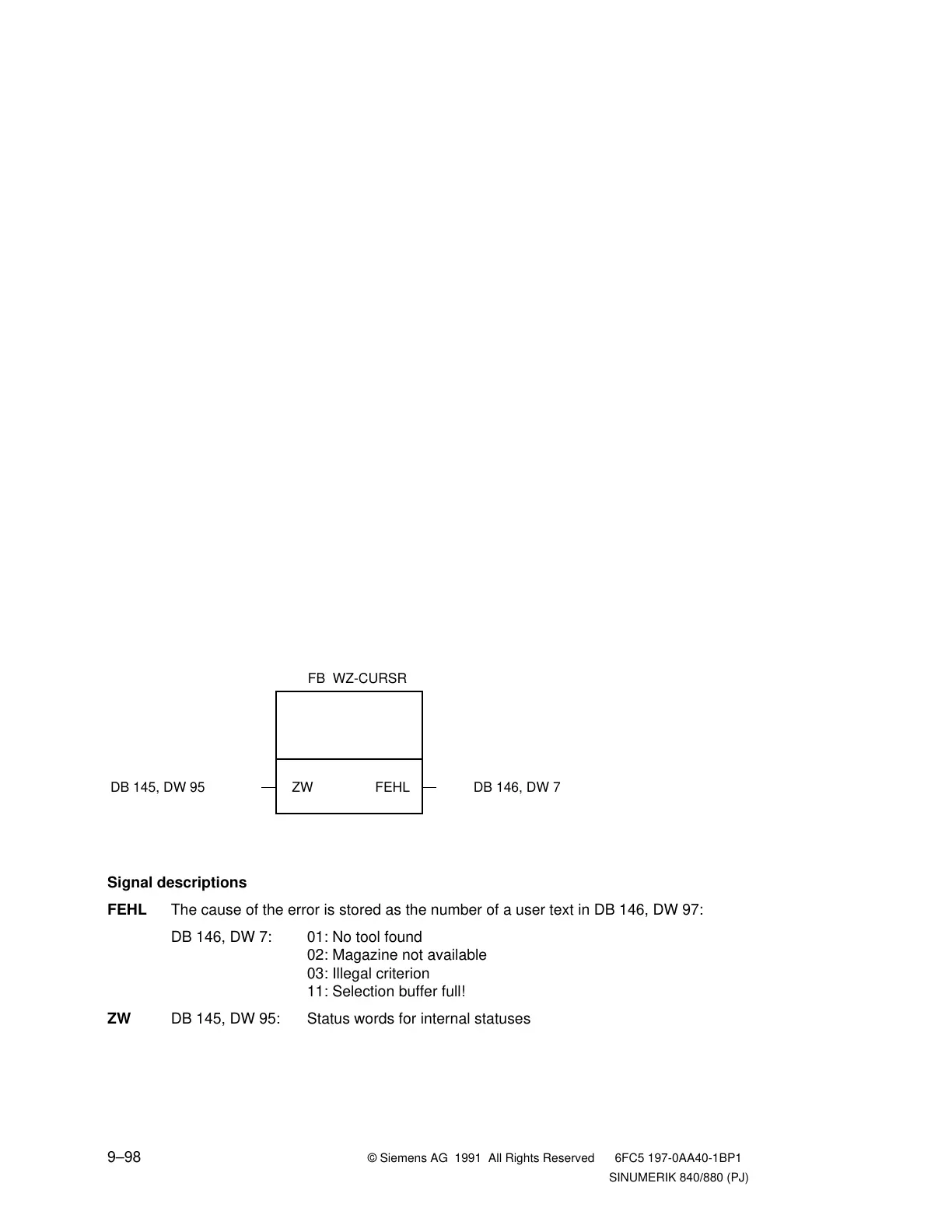

Block call FB 179
