9.2.17 FB 178 Change tool data of magazine assignment
9.2.17 FB 178 AEN-MAG
Change tool data of magazine assignment
Description
The block selects the relevant tool data in accordance with the cursor position in the "Buffer
assignment" display and initializes the display parameters in the "Change tool data" display.
If the selected magazine is a fictitious magazine, processing is aborted and display of the next
menu is disabled and the corresponding error message output.
In case of an error, an interactive text is output together with an error message.
Block data
Lib. No. : 10050
FBs to be loaded : FB 178, FB 132
DBs to be loaded : None
Type of FB call : Conditional in FB 160
DBs to be input : None
Error messages : 19: No D No. available
32: Fictitious magazine (SINUMERIK 880/880 GA2 only)

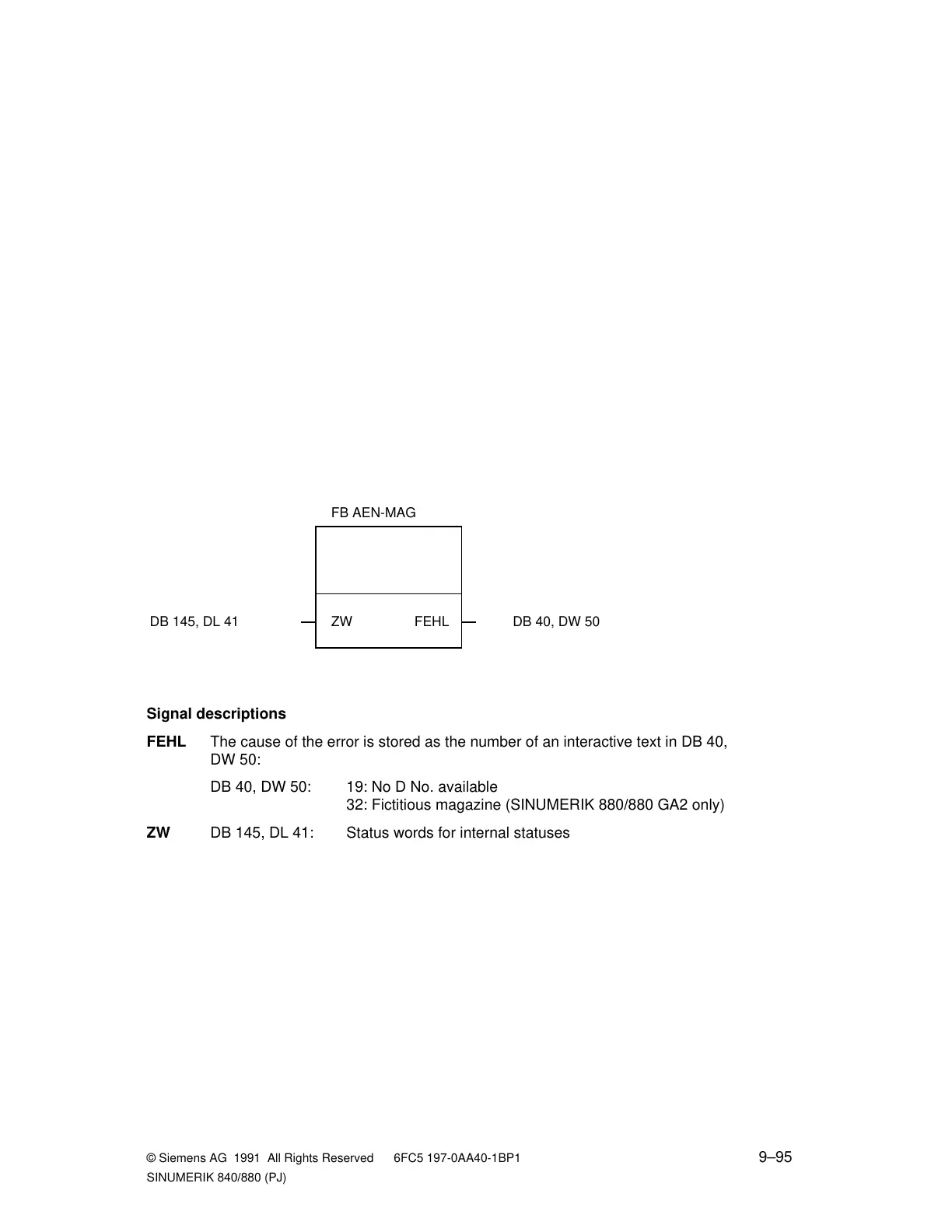

Block call FB 178
