Siemens SINUMERIK 840 Planning Guide

11.92 2 Description of Functions
2.2.5 Adapter
2.2.5 Adapter

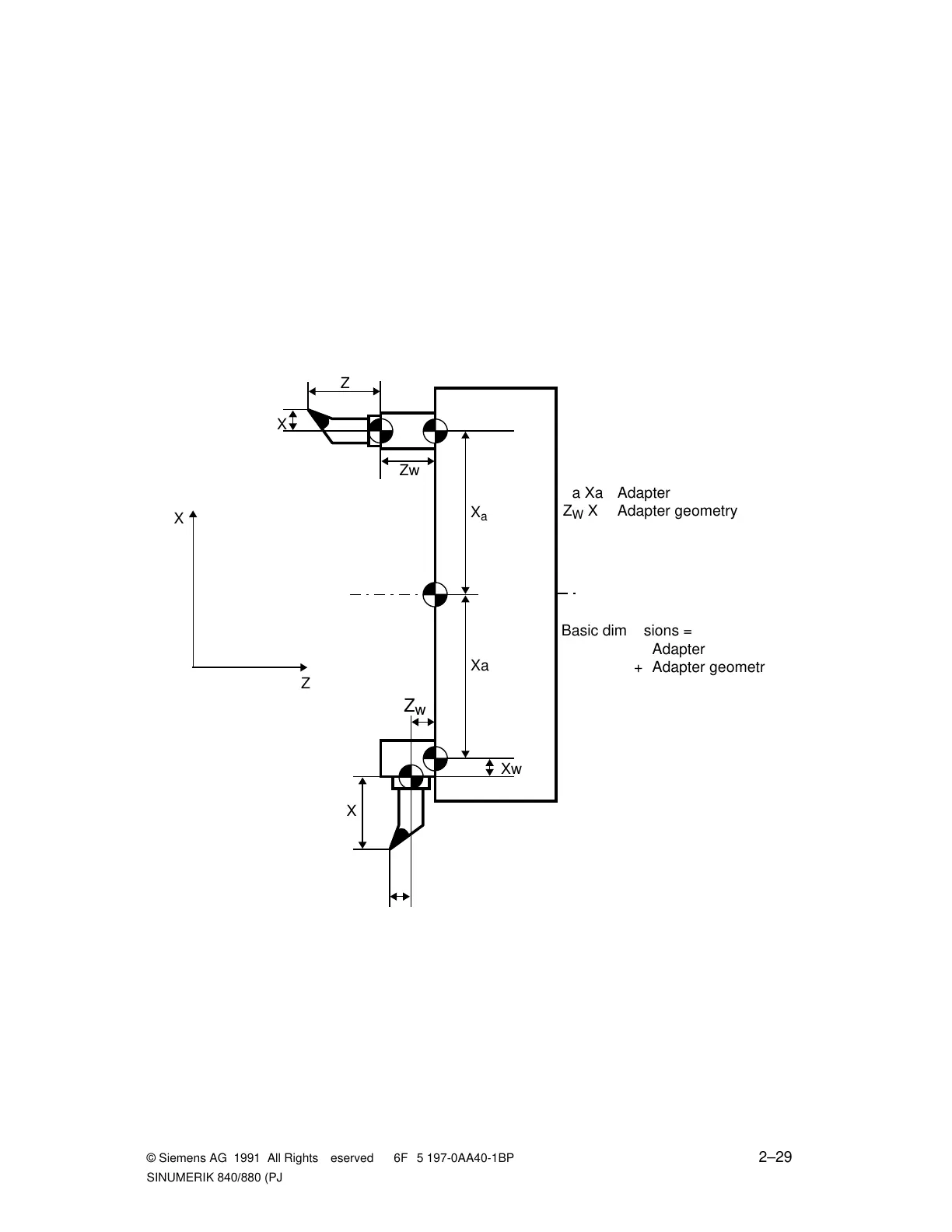

If a tool is connected to the turret via an adapter, the dimensions of the adapter must be
included in the geometry calculations.
The tool management supports these calculations. PLC machine data bits 7012 bit 0 and bit 1
must be set to "1" during tool management installation, so that the magazine table is set with
these DBs. (The DBs are added to the end of the reference list if replacement tools are not
used, see page 2-6).
The data are most easily entered in a configured display (see also the turning operating
example, which gives an example of such a configured screen form).
The values which have been entered are stored in the data blocks are added when the tool is
called (adapter and adapter geometry) and transferred to the P memories P8, P9 (basic
dimensions) of the current D number.
