5 Configuring 11.92
5.9 FB 131 Subroutine: Submagazine-specific machine data bits
5.9 FB 131 UP:MD-B
Subroutine: Submagazine-specific machine data bits
Description
The block reads the global and/or submagazine-specific machine data bits and makes them
available for the calling program. If the specified magazine number is > 16
1)
or the magazine
is not defined (MD 7010.0) + n = 0; n = 1...16
1)
, an error bit is set.
When the magazine number is defined, a distinction is made between magazine number = 0
and magazine number = 1...16
1)
. If magazine number = 1...16
1)
, the submagazine-specific
machine data bits are output, if magazine number = 0, the global machine data bits are
output.
The submagazine-specific as well as the global machine data bits are to be found in DB 64.
The global machine data bits are stored in DW 5 (MD 7010). The submagazine-specific
machine data bits are stored in DW 6...21 (MD 7011...MD 7043).
16
1)
bits are reserved for each magazine (1 machine data word). The address of the
submagazine-specific machine data bits is calculated using the following formula:
DW = 5 + n
n = submagazine no. = 1...16
1)
Note:
This block can be called up in the operating example.
Block data
Lib. No. : E88530-B5531-A-50
FBs to be loaded : FB 131
DBs to be loaded : None
Type of FB call : Conditional, unconditional
DBs to be input : None
Error messages : 1 illegal magazine no. (transferred to accu 1)

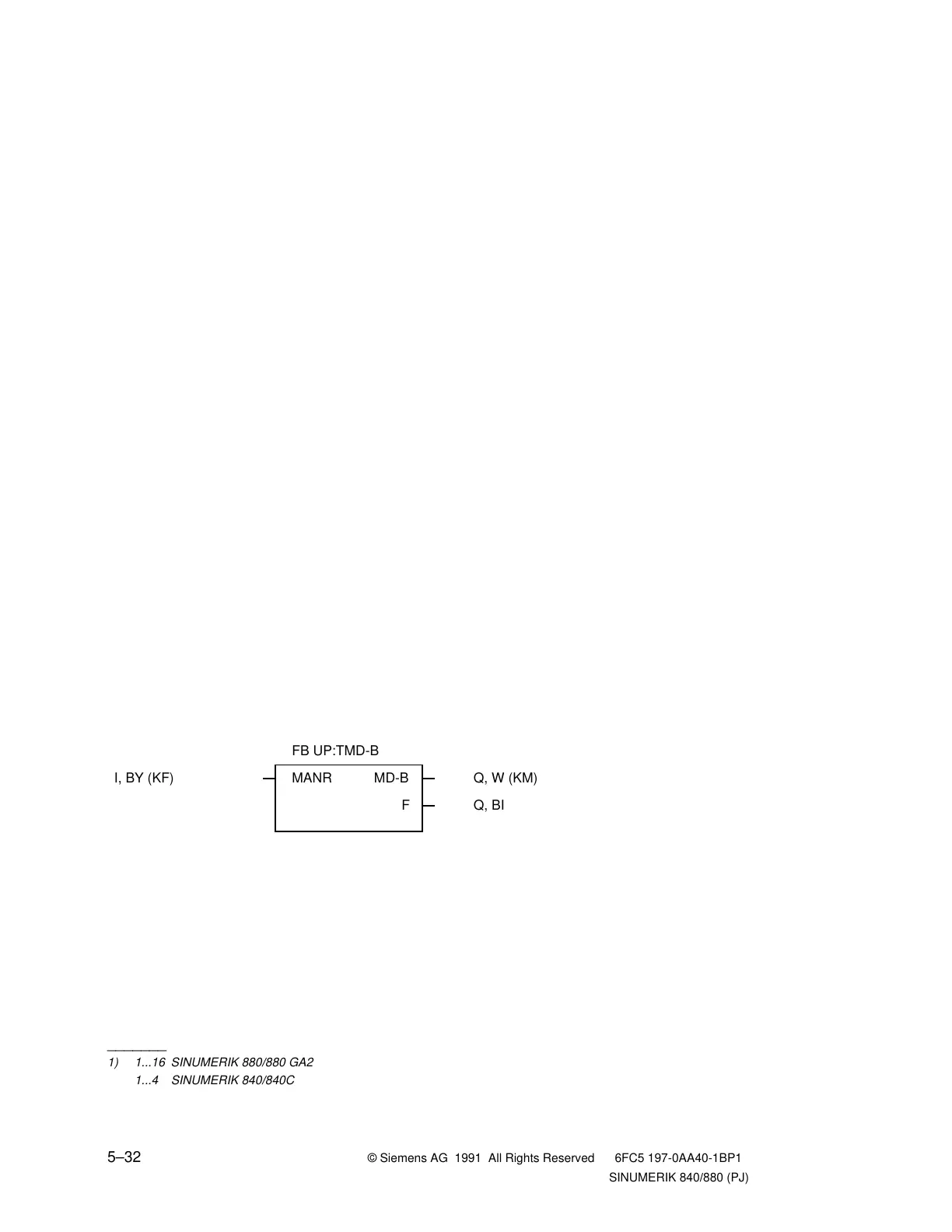

Block call FB 131
