Siemens SINUMERIK 840D sl Operation/Programming

11
08/2005 Examples
11.1 Standard machinin
g
p
rocesses
11
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 11-413

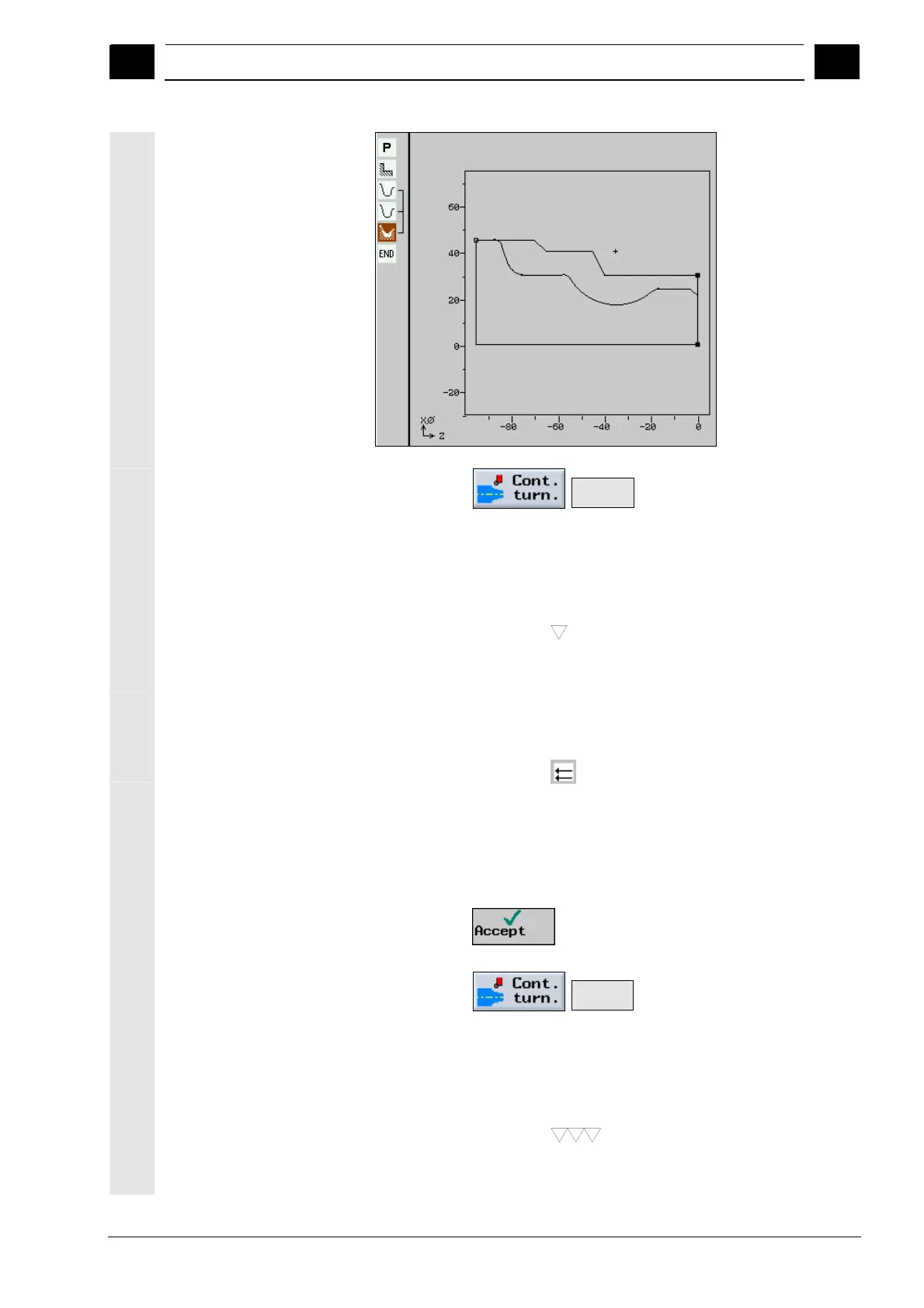

Stock removal
7. Solid machine residual
material
 Press the
Residual
material
softkeys
 Enter parameters:
T
Roughing tool_55
F
0.200 mm/rev
V
250 m/min
Machining
Direction of Stock
Removal
Longitudinal (parallel to the Z-axis)
Machining side
Exterior
Machining direction
. (from front to back)
D
2 inc.
Cutting depth
UX
0.200 inc.
UZ
0.100 inc.
Limit
No
Rear cut
Yes
FR
0.250 mm/rev
 Press the
softkey
8. Stock removal (finishing)
 Press the
Stock
removal
softkeys
 Enter parameters:
T
Finishing tool
F
0.150 mm/rev
V
300 m/min
Machining
Dir. of Stock Rem.
Longitudinal (parallel to the Z-axis)
Machining side
Exterior

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
