SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 11-415

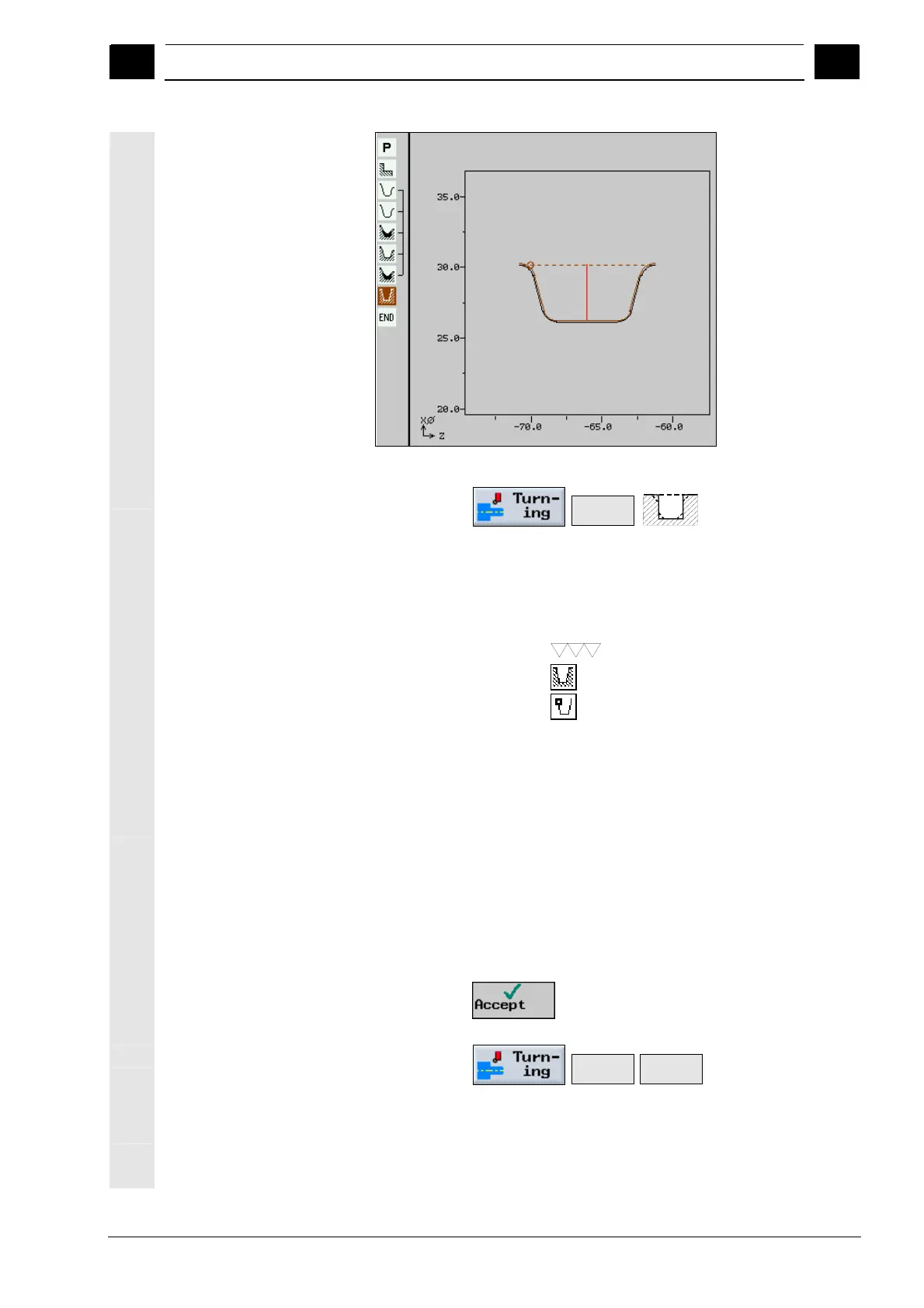

Recess
10. Groove (finishing)
 Press the
Groove
softkeys
 Enter parameters:
T
Recessing tool
F
0.150 mm/rev
V
300 m/min
Machining
Groove position
Reference point
X0
60 abs
Z0
-70
B1
5.856 inc.
T1
4 inc.
α1
15 degree
α2
15 degree
FS1
1
R2
1
R3
1
FS4
1
N
1
 Press the
softkey
11. Longitudinal threads
M48x2
(roughing)
 Press the
Thread Thread
long.
softkeys
 Enter parameters:
T
Threading tool_2
P
2 mm/rev
