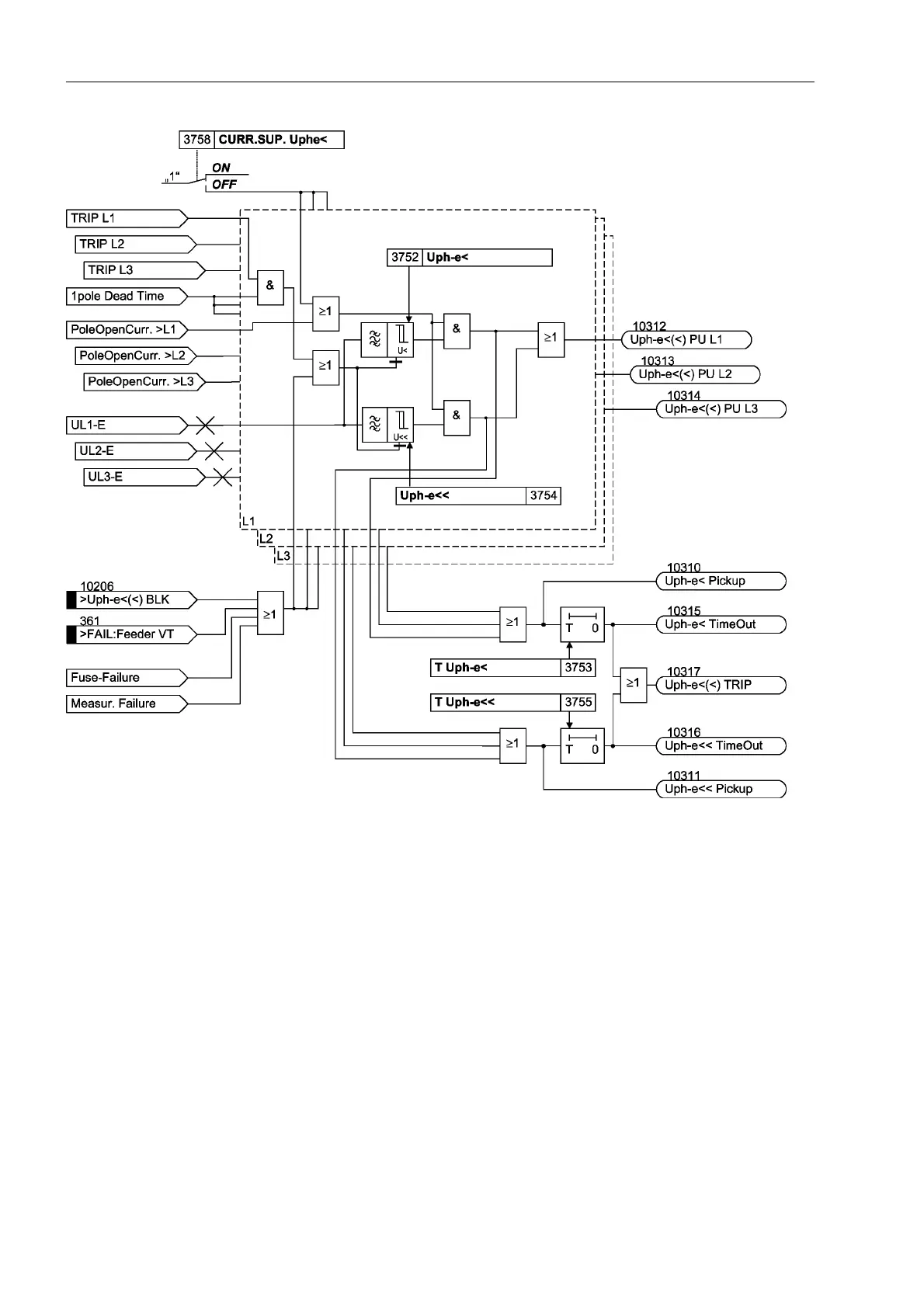

Figure 2-116 Logic diagram of the undervoltage protection for phase voltages
Undervoltage
Phase–Phase
Basically, the phase–phase undervoltage protection operates like the phase–earth
protection except that it detects phase–to–phase voltages. Accordingly, both phases
are indicated during pick-up of an undervoltage stage if one of the stage thresholds
8SKSK or 8SKSK was undershot. Beyond this, Figure 2-116 applies in principle.
It is sufficient for the current criterion that current flow is detected in one of the involved
phases.
The phase–phase undervoltage protection can also be blocked via a binary input
´!8SKSK%/.µ. There is an automatic blocking if the measuring voltage failure
was detected or voltage mcb tripping was indicated (internal blocking of the phases
affected by the voltage failure).
During single-pole dead time for automatic reclosure (using the internal automatic re-
closure function) the stages of the undervoltage protection are automatically blocked
in the disconnected phase so that it does not respond to the undervoltage of the dis-
connected phase provided that the voltage transformers are located on the outgoing
side.
