PROFIBUS DP Communication Module
SIRIUS 3RW44 System Manual
8-8 GWA 4NEB 535 2195-02 DS 04

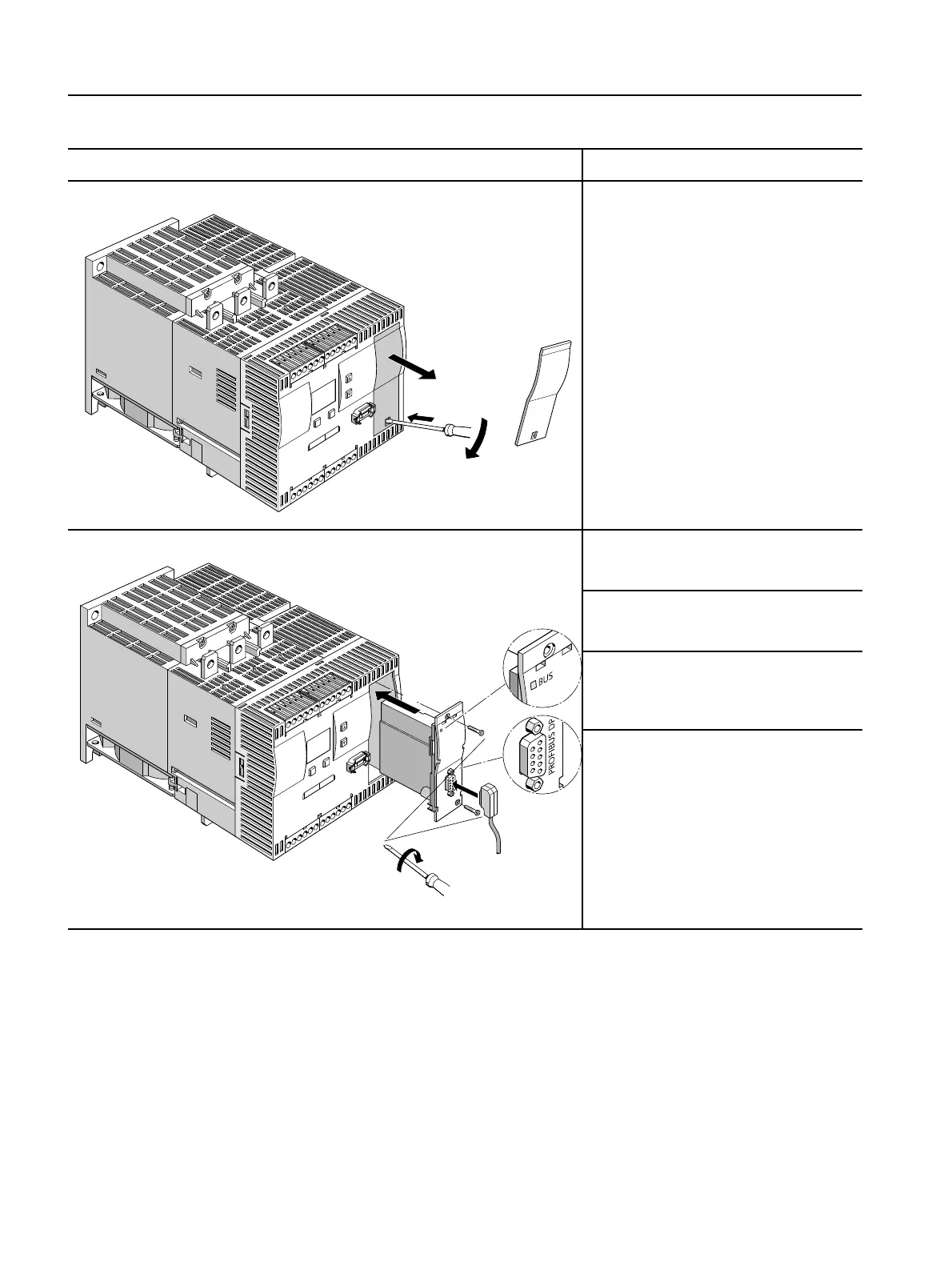

Proceed as follows:
Step Description
Insert a small screwdriver into the
opening in the cover of the 3RW44 soft
starter
(1). Lightly press the screwdriver
downwards
(2) and remove the cover
(3).
Insert the PROFIBUS DP
communication module into the device
(4).
Screw in the PROFIBUS DP
communication module with the screws
included in the scope of supply
(5).
Plug the PROFIBUS connecting cable
into the socket of the communication
module
(6). Screw the PROFIBUS
connecting cable in tightly.
Switch on the supply voltage.
The "BUS" LED blinks yellow. This
means that the communication module
has been inserted correctly, but has not
yet been activated.
1
2
3
RW-01181
3
5
5
6
4
RW-01182
0,8 ... 1.2 Nm
7 ... 10.3 lb· in
