Siemens SIRIUS 3RW44 - Conductor Cross-Sections

General Technical Data
SIRIUS 3RW44 System Manual
GWA 4NEB 535 2195-02 DS 04
10-15

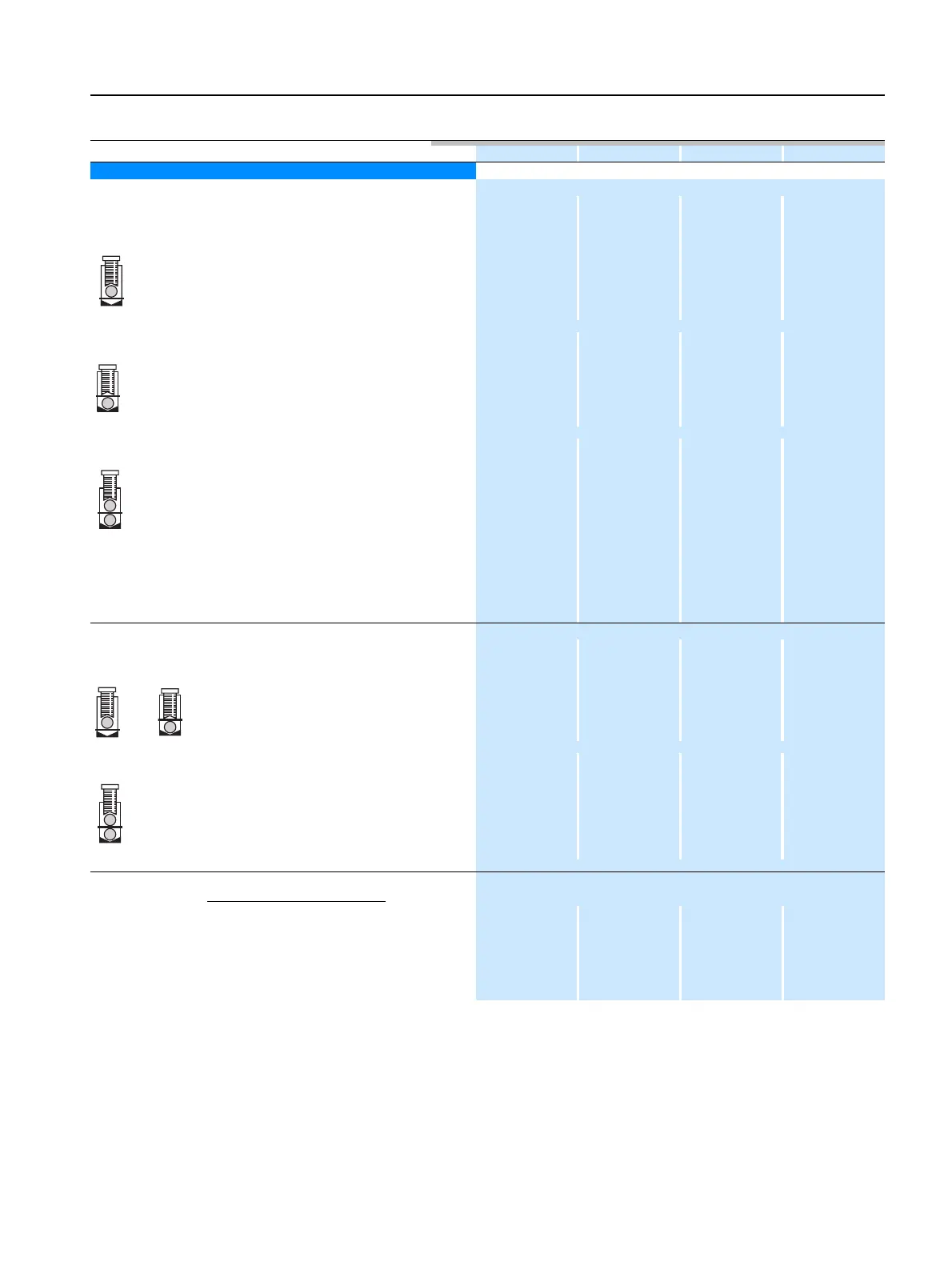

10.3.4Conductor Cross-sections
1) When connecting cable lugs to DIN 46235 use 3RT19 56-4EA1 terminal cover for conductor cross-sections from 95 mm² to ensure phase spacing.
2) When connecting cable lugs to DIN 46234, the 3RT19 66-4EA1 terminal cover must be used for conductor cross-sections of 240 mm² and more as well as
DIN 46235 for conductor cross-sections of 185 mm² and more to keep the phase clearance.
Type 3RW44 2. 3RW44 3. 3RW44 4. 3RW44 5.
Conductor cross-sections
Screw terminals Main conductors:
with box terminal 3RT19 55-4G
(55 kW)
3RT19 66-4G —
Front clamping
point connected
• Finely stranded with end sleeve mm
2
2.5 ... 35 16 ... 70 70 ... 240 —
• Finely stranded without end sleeve mm
2
4...50 16 ... 70 70 ... 240 —
•Solid mm
2
2.5 ... 16 — — —
• Stranded mm
2
4...70 16 ... 70 95 ... 300 —
• Ribbon cable conductors
(number x width x thickness)
mm
6x9x0.8 min. 3 x 9 x 0.8,
max. 6 x 15.5 x 0.8
min. 6 x 9 x 0.8
max. 20 x 24 x 0.5
—
• AWG conductors, solid or stranded AWG
10 ... 2/0 6...2/0 3/0 ... 600 kcmil —
Rear clamping point
connected
• Finely stranded with end sleeve mm
2
2.5 ... 50 16 ... 70 120 ... 185 —
• Finely stranded without end sleeve mm
2
10 ... 50 16 ... 70 120 ... 185 —
•Solid mm
2
2.5 ... 16 — — —
• Stranded mm
2
10 ... 70 16 ... 70 120 ... 240 —
• Ribbon cable conductors
(number x width x thickness)
mm
6x9x0.8 min. 3 x 9 x 0.8,
max. 6 x 15.5 x 0.8
min. 6 x 9 x 0.8
max. 20 x 24 x 0.5
—
• AWG conductors, solid or stranded AWG
10 ... 2/0 6...2/0 250 ... 500 kcmil —
Both clamping
points connected
• Finely stranded with end sleeve mm
2
2 x (2.5 ... 35) max. 1x50, 1x70 min. 2 x 50;
max. 2 x 185
—
• Finely stranded without end sleeve mm
2
2 x (4 ... 35) max. 1x50, 1x70 min. 2 x 50;
max. 2 x 185
—
•Solid mm
2
2 x (2.5 ... 16) — — —
• Stranded mm
2
2 x (4 ... 50) max. 2 x 70 max. 2 x 70;
max. 2 x 240
—
• Ribbon cable conductors
(number x width x thickness)
mm
2x(6x9x0.8) max. 2 x
(6 x 15.5 x 0.8)
max. 2 x
(20 x 24 x 0.5)
—
• AWG conductors, solid or stranded AWG
2x(10...1/0) max. 2 x 1/0 min. 2 x 2/0;
max.2x500kcmil
—
• Terminal screws
M6 (Inbus, SW4) M10 (Inbus, SW4) M12 (Inbus, SW5) —
-Pickup torque Nm
4...6 10 ... 12 20 ... 22 —
lb.in
36 ... 53 90 ... 110 180 ... 195 —
Screw terminals Main conductors:
with box terminal — 3RT19 56-4G — —
Front or rear clamp-
ing point connected
• Finely stranded with end sleeve mm
2
— 16 ... 120 — —
• Finely stranded without end sleeve mm
2
— 16 ... 120 — —
• Stranded mm
2
— 16 ... 120 — —
• Ribbon cable conductors
(number x width x thickness)
mm
— min.3x9x0.8
max. 6 x 15.5 x 0.8
— —
• AWG conductors, solid or stranded AWG
— 6...250kcmil — —
Both clamping
points connected
• Finely stranded with end sleeve mm
2
— max. 1 x 95,
1x120
— —
• Finely stranded without end sleeve mm
2
— max. 1 x 95,
1x120
— —
• Stranded mm
2
— max. 2 x 120 — —
• Ribbon cable conductors
(number x width x thickness)
mm
— max. 2 x
(10 x 15.5 x 0.8)
— —
• AWG conductors, solid or stranded AWG
— max. 2 x 3/0 — —
Screw terminals Main conductors:
Without box terminal/rail connection
• Finely stranded with cable lug mm
2
— 16 ... 95
1)
50 ... 240
2)
50 ... 240
2)
• Stranded with cable lug mm
2
— 25 ... 120
1)
70 ... 240
2)
70 ... 240
2)
• AWG conductors, solid or stranded AWG — 4...250kcmil 2/0 ... 500 kcmil 2/0 ... 500 kcmil
• Connecting bar (max. width) mm
— 17 25 60
• Terminal screws
— M8 x 25 (SW13) M10 x 30 (SW17) M12 x 40
-Pickup torque Nm
— 10 ... 14 14 ... 24 20 ... 35
lb.in
— 89 ... 124 124 ... 210 177 ... 310
