Siemens SIRIUS 3RW44 - Parameterizing the Outputs

Commissioning
SIRIUS 3RW44 System Manual
GWA 4NEB 535 2195-02 DS 04
5-29
5.4.8 Parameterizing the Outputs

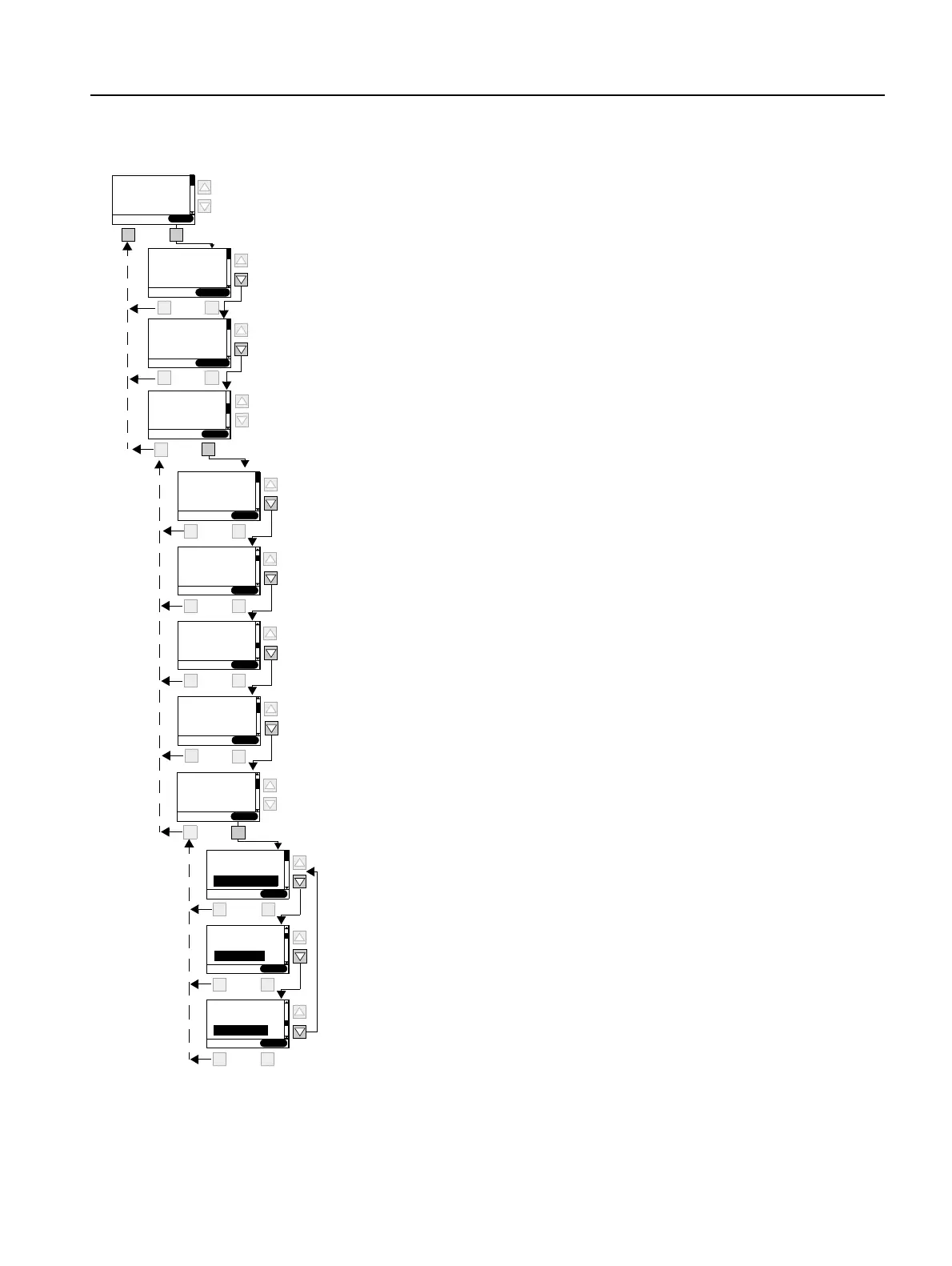

Figure 5-23:Parameterizing the outputs
change
ESC
Output 1 - Action
1
select
ESC
Outputs
5
OK
OK
change
ESC
Output 2 - Action
2
OK
change
ESC
Output 3 - Action
3
No action
OK
On time motor
No action
Parameterization options
for relay outputs 1 ... 3
No action
PIO Output 1
PIO Output 2
Input 1
Input 2
Input 3
Input 4
Run up
Operation/bypass
Coasting down
On time motor
Comm. motor-on
DC brak. contact.
Group warning
Group error
Bus error
Device error
Power on
Ready to start
select
ESC
Inputs
4
OK
select
ESC
Settings
3
OK
Display mea-
