Example circuits

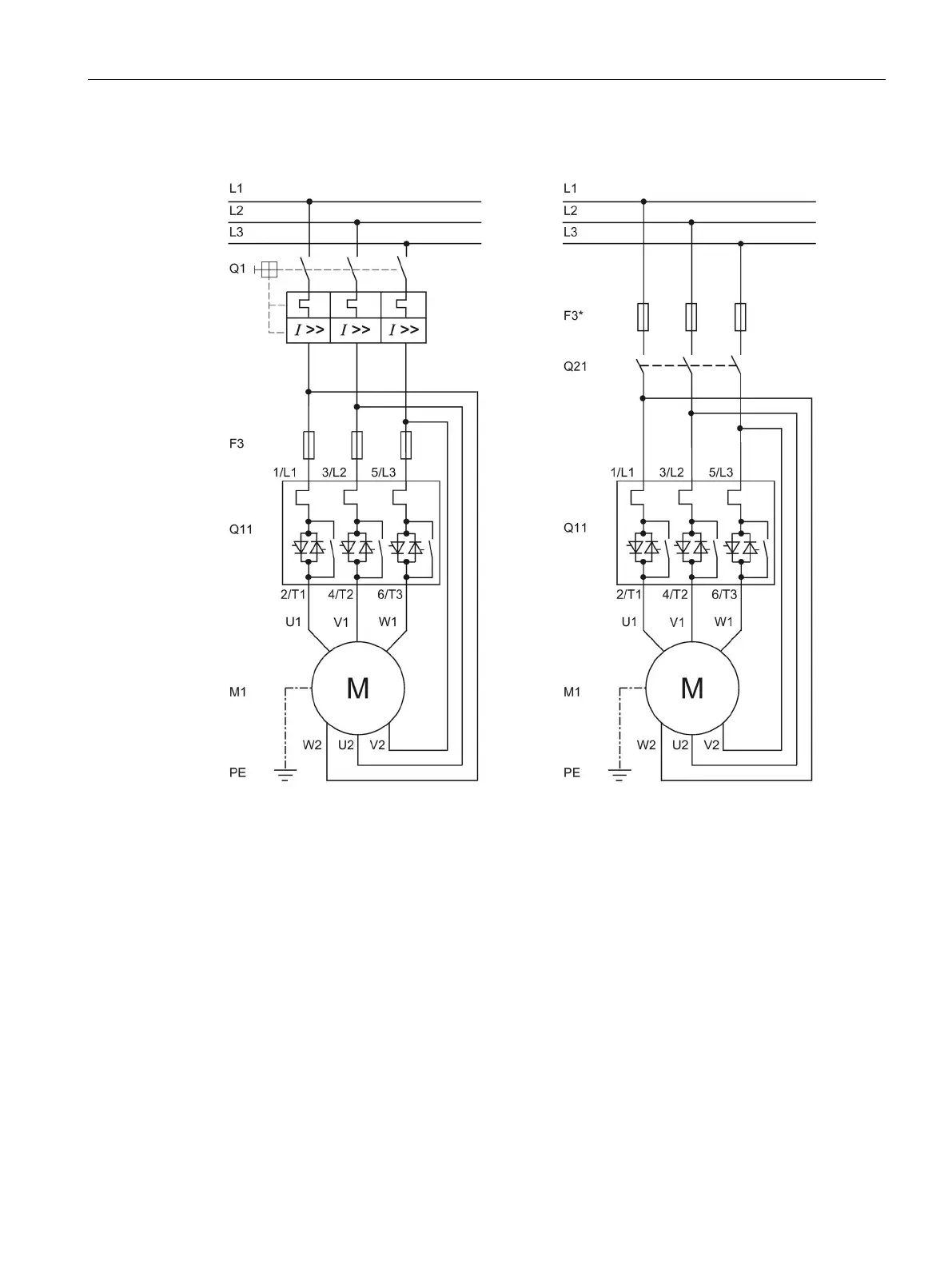

A.1 Main circuit connection

SIRIUS 3RW55 soft starter

Manual, 08/2018, A5E35630887002A/RS-AB/002

205

Motor rotation in line phase direction

Motor starter protector

aR partial-range fuse for protection of semiconductors (e.g. SITOR 3NE3/4 or 3NC)

F3*

gR full-range fuse for protection of semiconductors (e.g. SITOR 3NE1)

Q11

Soft starter

Q21

Main or line contactor for galvanic isolation

Motor
