Connecting

4.11 Installing the cover for the control cable duct

SIRIUS 3RW55 soft starter

66 Manual, 08/2018, A5E35630887002A/RS-AB/002

4.11

Installing the cover for the control cable duct

Requirements

● 1-2 cable ties

● Cover for control cable duct (spare part: 3RW5950-0GD20)

Procedure

NOTICE

Damage to the cables

Make sure that the cables are not trapped prior to locking.

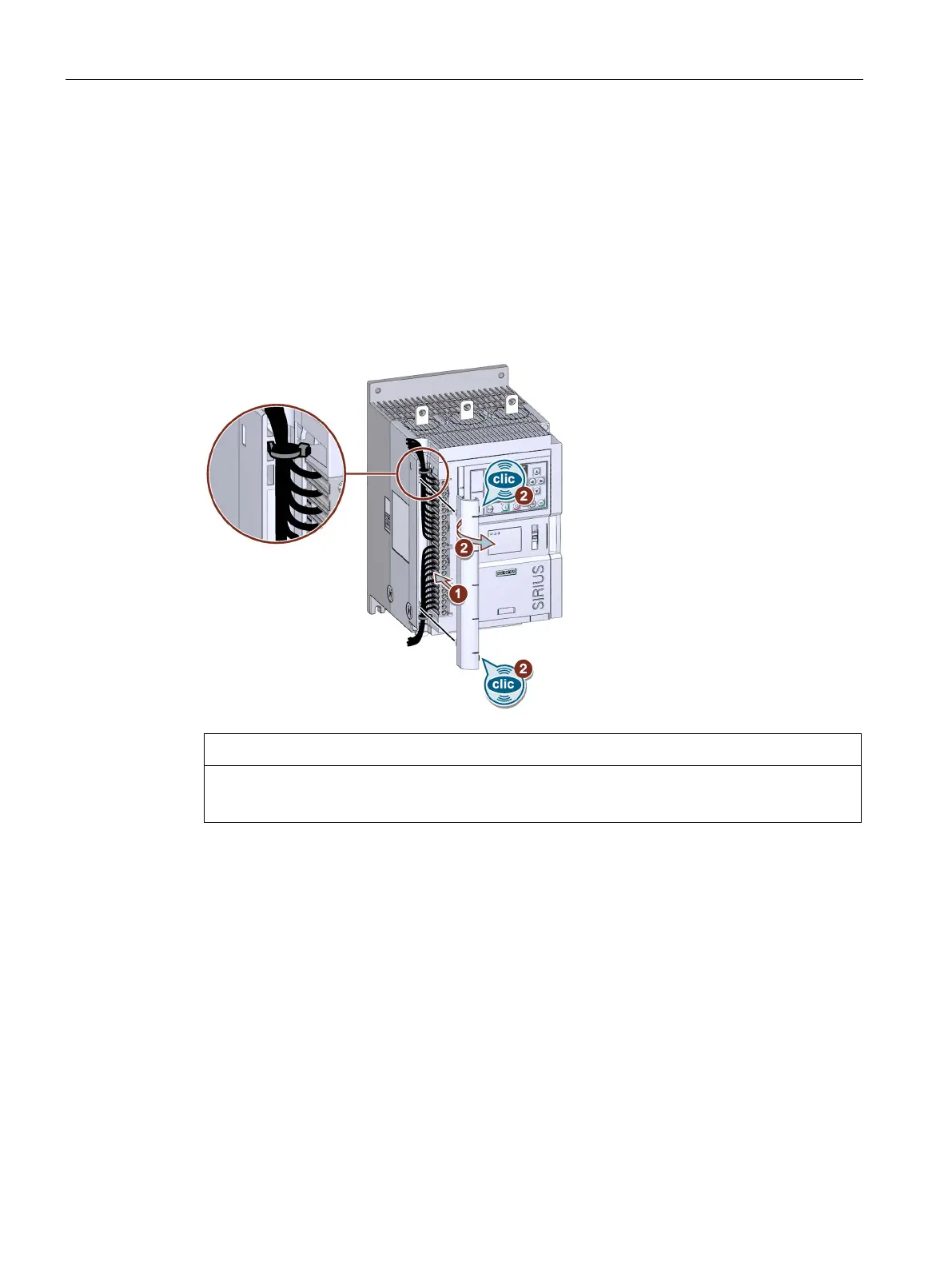

● Lay the control cables in the control cable ducts and fix the control cables in place with

cable ties.

● Press the cover for the control cable duct into the openings

① provided until it audibly

engages

②.
